TPKR 32PDSR:M8340

TPKR 32PDSR:M8340

SKU DOR6803610
by Dormer Pramet
Primary Use: Possible Use:

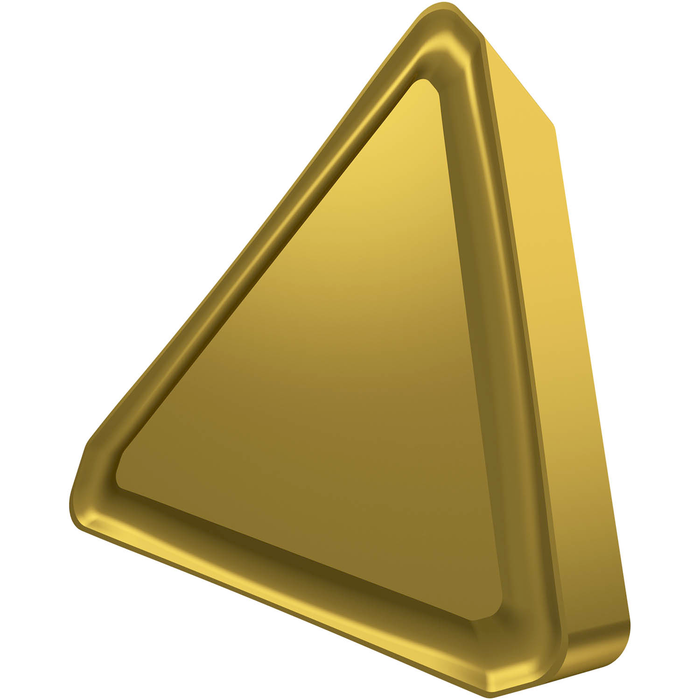

Single-sided milling insert TPKR 1603 with chip-breakers, triangular for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$13.21 - $13.21
$13.21
$13.21 - $13.21
$13.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

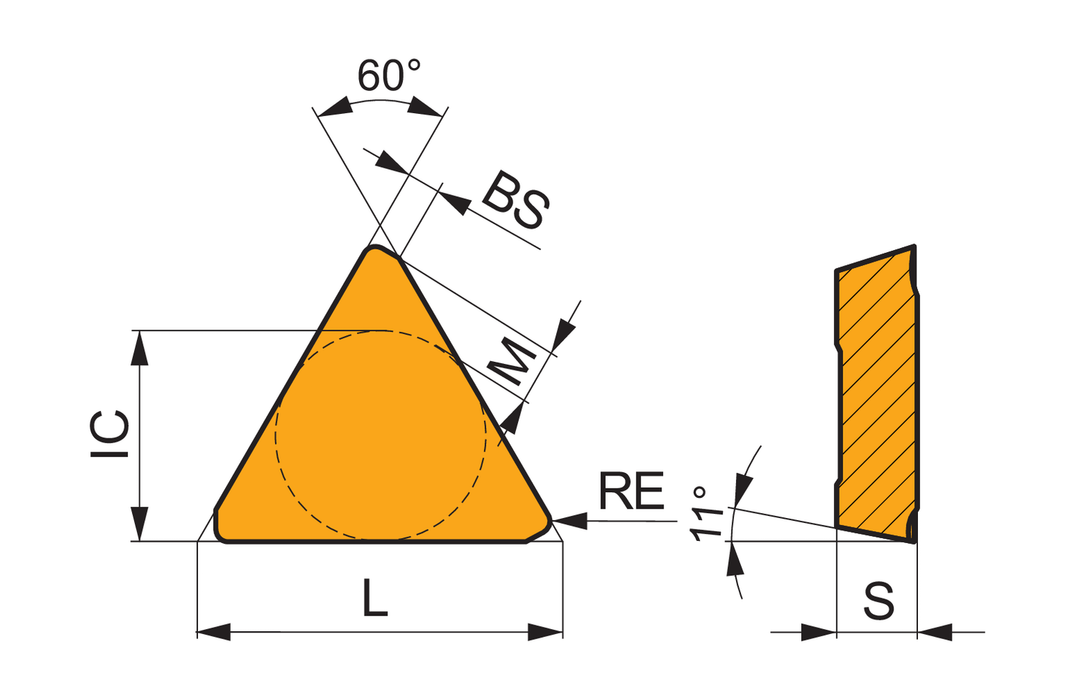

Max. Depth of Cut: 0.472

Insert Design: TPKR

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: With chipbreaker -no designation

Grade: M8340

EDP: 6803610

EAN: 3603602995650

MFG Part Number: 6803610
