J24510.0-18

J24510.0-18

SKU DOR6821342
by Dormer Pramet
Primary Use:

Thread milling cutter, for Unified National Fine thread ≥ UNF 9/16" with 18 TPI, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 22mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$339.43 - $339.43
$339.43
$339.43 - $339.43
$339.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

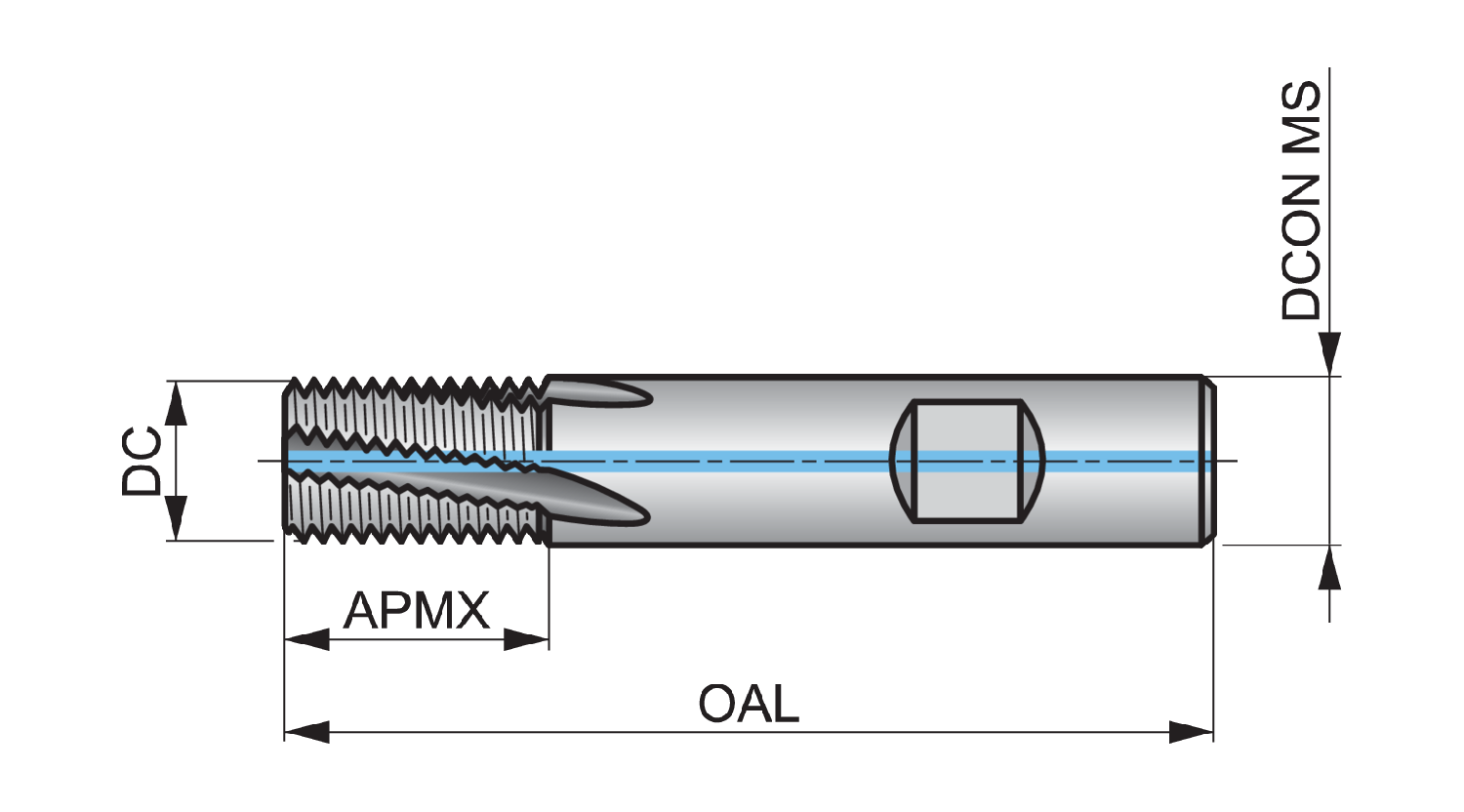

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Through Coolant: 1

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 2.8346

Connetion Diameter: 0.3937

Max. Depth of Cut: 0.8661

Tool Direction: Right

Diameter Size: 9/16, 5/8

TPI: 18.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank DIN 6535 HB

Grade: Alcrona Pro

EDP: 46821342

EAN: 7320760689202

MFG Part Number: 6821342
