J28025.0-11

J28025.0-11

SKU DOR6821355
by Dormer Pramet
Primary Use:

Thread milling cutter, for British Standard Pipe thread ≥ G 1'' with 11 TPI, dimensions according to DORMER standard with 6 flutes, 25mm cutting diameter and 25mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 45mm long right or left hand internal and external thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$821.07 - $821.07
$821.07
$821.07 - $821.07
$821.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

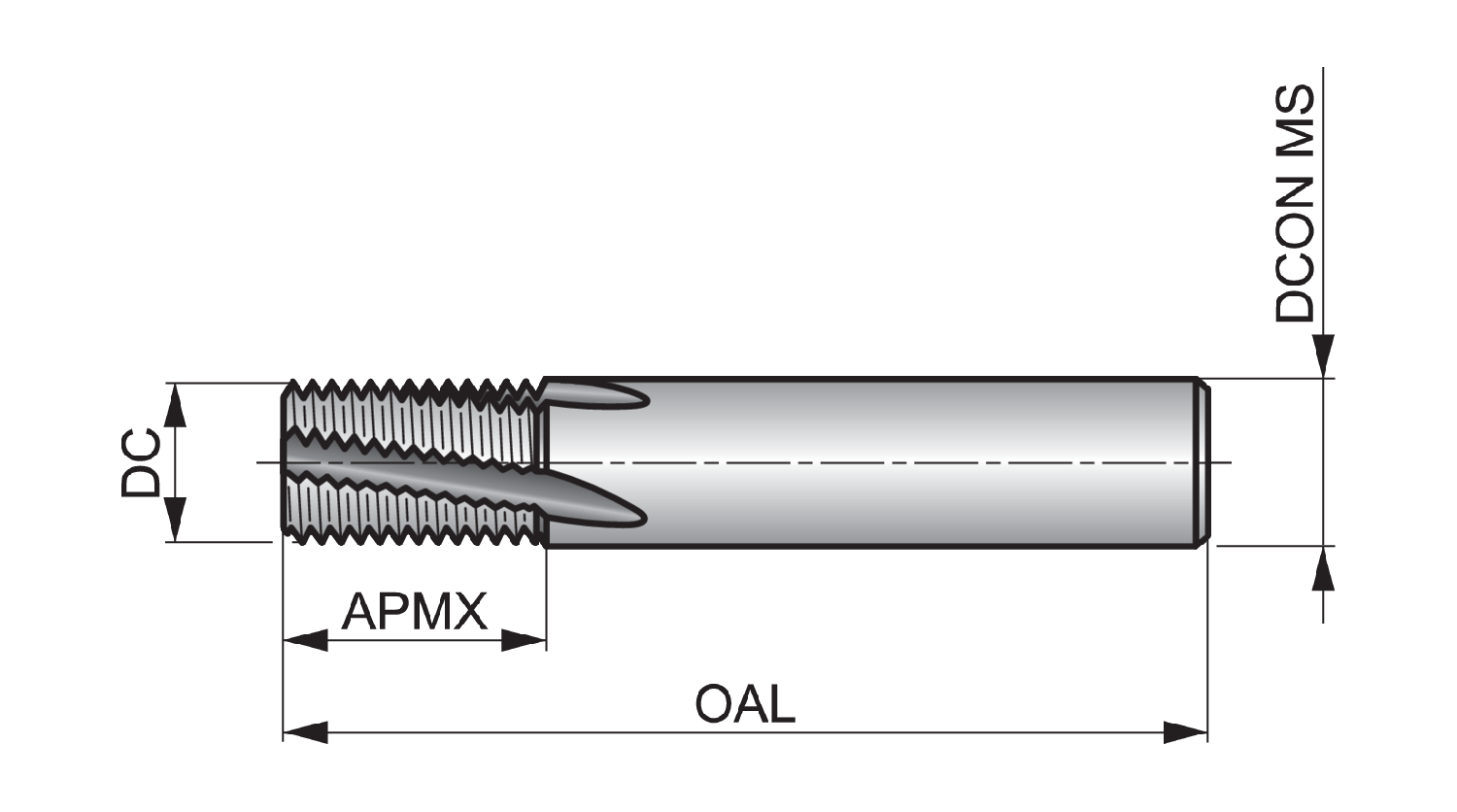

Material: HM

Cutting Diameter - in (DC): 0.9843

Cutting Diameter - mm (DC): 25.0

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 4.7638

Connetion Diameter: 0.9843

Max. Depth of Cut: 1.7717

Tool Direction: Right

Diameter Size: 1'', 3''

TPI: 11.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank DIN 6535 HA

Grade: Alcrona Pro

EDP: 46821355

EAN: 7320760689332

MFG Part Number: 6821355
