TNMG 331-NF:HF7

TNMG 331-NF:HF7

SKU DOR6834704
by Dormer Pramet
Possible Use:

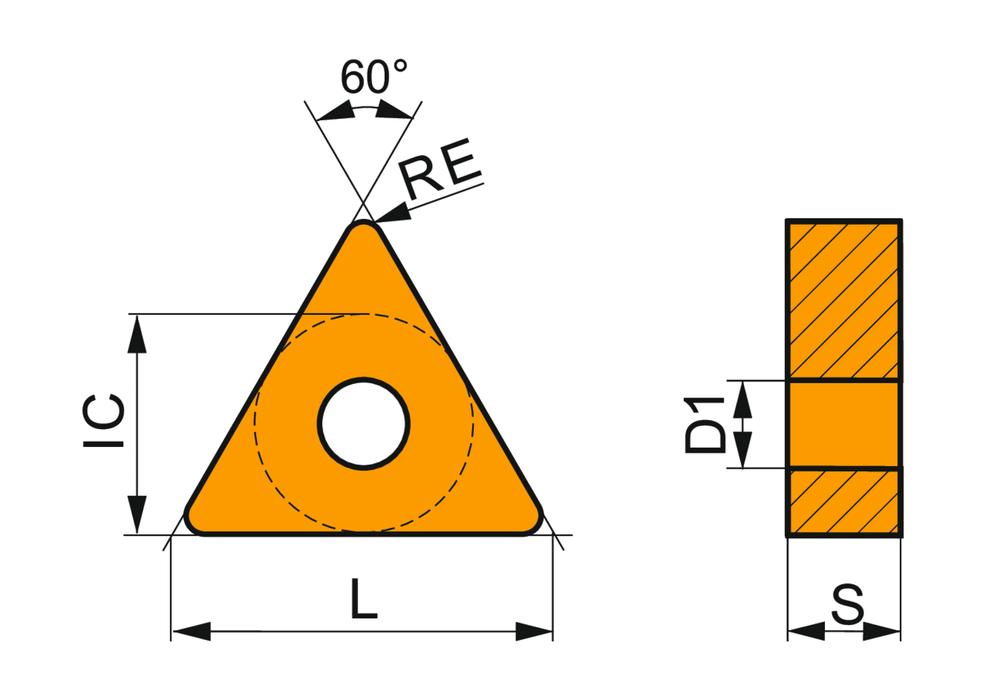

Double-sided negative turning insert, triangular with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NF, in grade HF7, an uncoated fine grained WC-Co carbide, for fine to medium machining

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$7.68 - $7.68
$7.68
$7.68 - $7.68
$7.68
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.118

Insert Design: TNMG

Insert Shape Code: T - triangular 60° included angle

Insert Shape Code: gid://shopify/Metaobject/145756717118

Insert Thickness: 0.187

Stainless Steel: Possible use

Cast Iron: Possible use

Non Ferrous: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: NF

Grade: HF7

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6834704

EAN: 3603603012660

MFG Part Number: 6834704
