VNMG 331-NF:T7335

VNMG 331-NF:T7335

SKU DOR6834716
by Dormer Pramet
Primary Use: Possible Use:

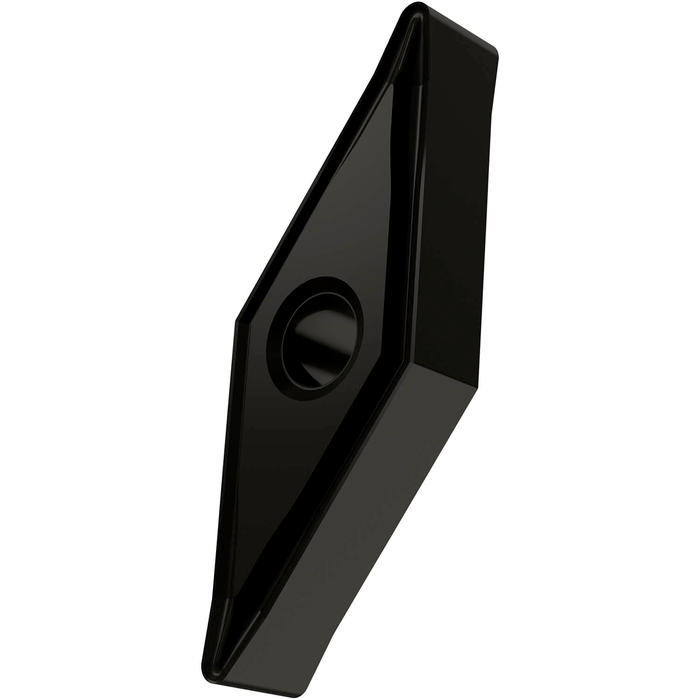

Double-sided negative turning insert, 35° rhomboid with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NF, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for fine to medium machining of stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.79 - $17.79
$17.79
$17.79 - $17.79
$17.79
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

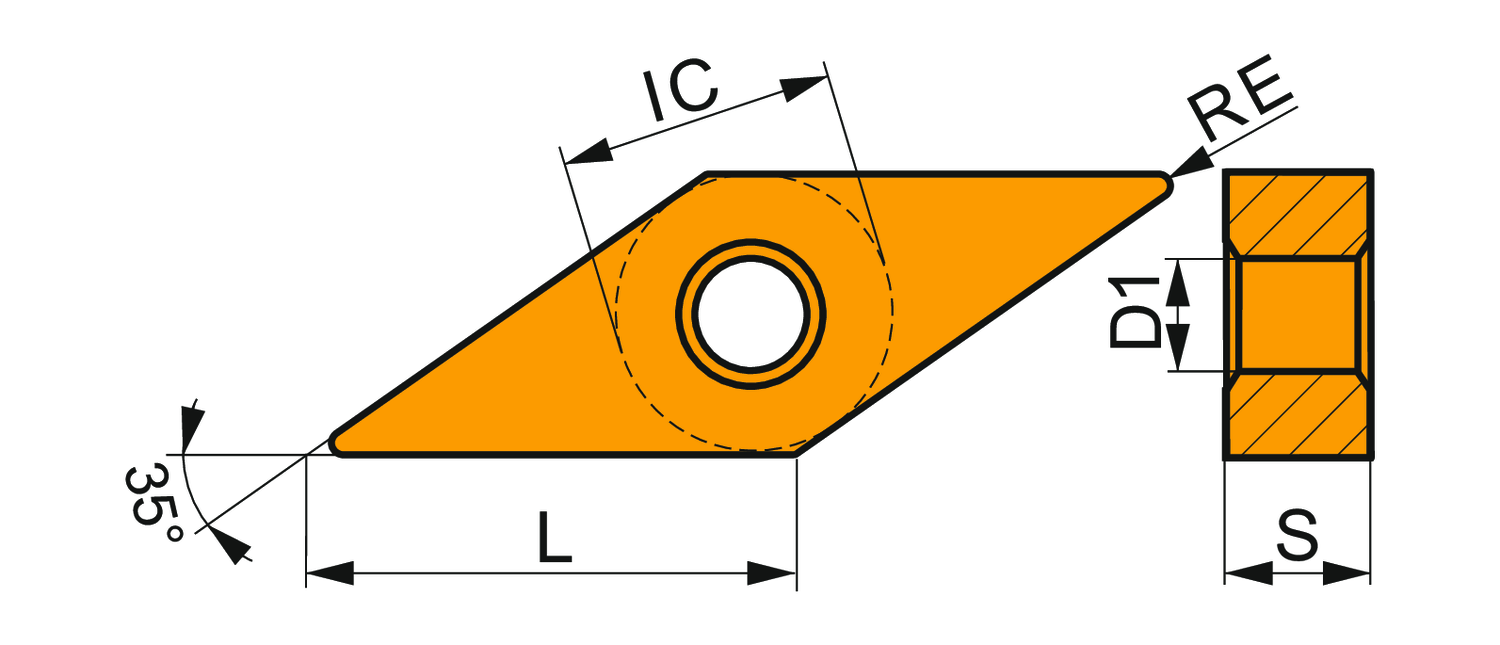

Max. Depth of Cut: 0.098

Insert Design: VNMG

Insert Shape Code: V - rhombic 35° included angle

Insert Shape Code: gid://shopify/Metaobject/145756749886

Insert Thickness: 0.187

Steel and Cast Steel: Possible use

Stainless Steel: Primary use

High Temp Alloys: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: NF

Grade: T7335

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6834716

EAN: 3603603012783

MFG Part Number: 6834716
