WNMG 331-NF:T8315

WNMG 331-NF:T8315

SKU DOR6834727
by Dormer Pramet
Primary Use: Possible Use:

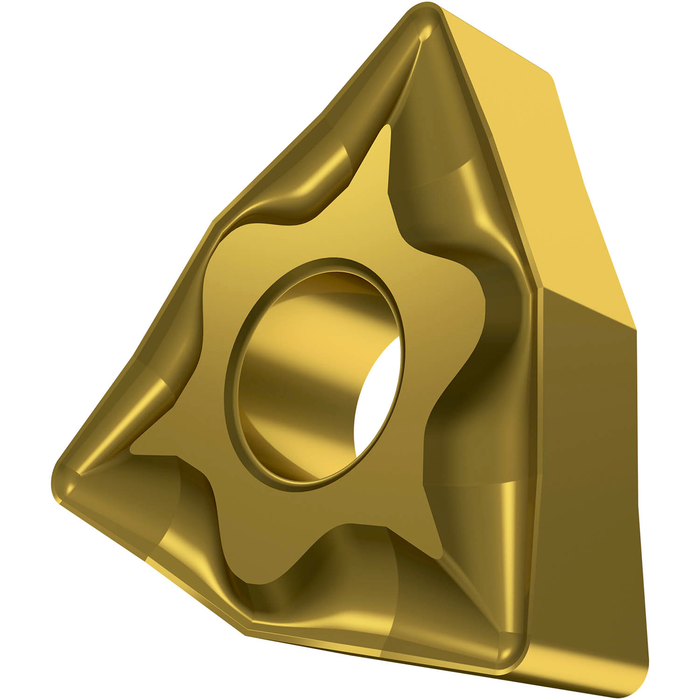

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NF, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range M05-M20, for fine to medium machining of stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$11.40 - $11.40
$11.40
$11.40 - $11.40
$11.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

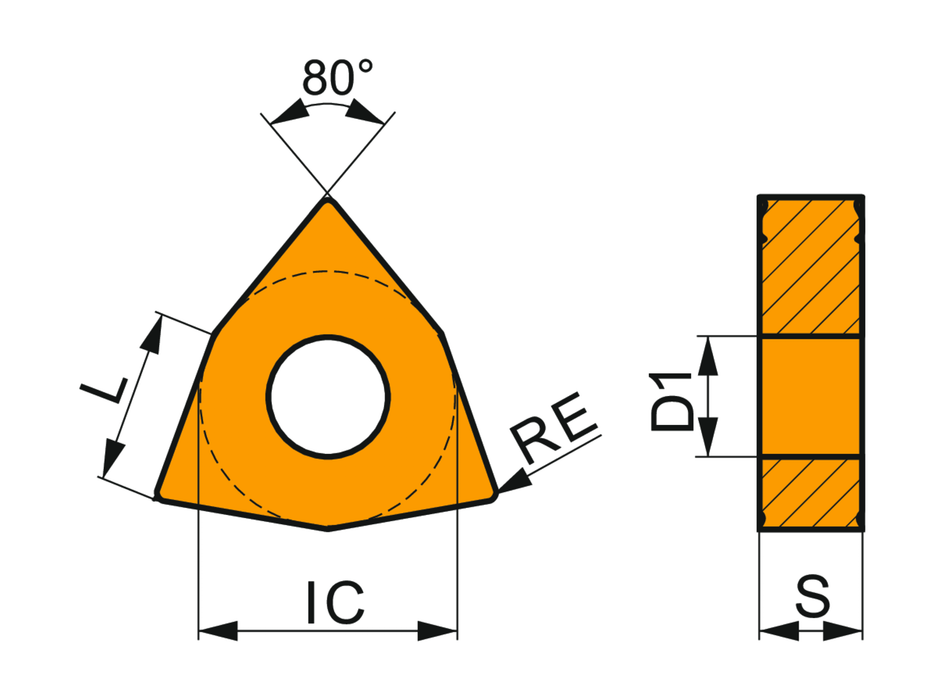

Max. Depth of Cut: 0.118

Insert Design: WNMG

Insert Shape Code: W - trigon

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.375

Chip Breaker: NF

Grade: T8315

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6834727

EAN: 3603603012899

MFG Part Number: 6834727
