CNMG 543-SM:T6310

CNMG 543-SM:T6310

SKU DOR6915809
by Dormer Pramet
Primary Use: Possible Use:

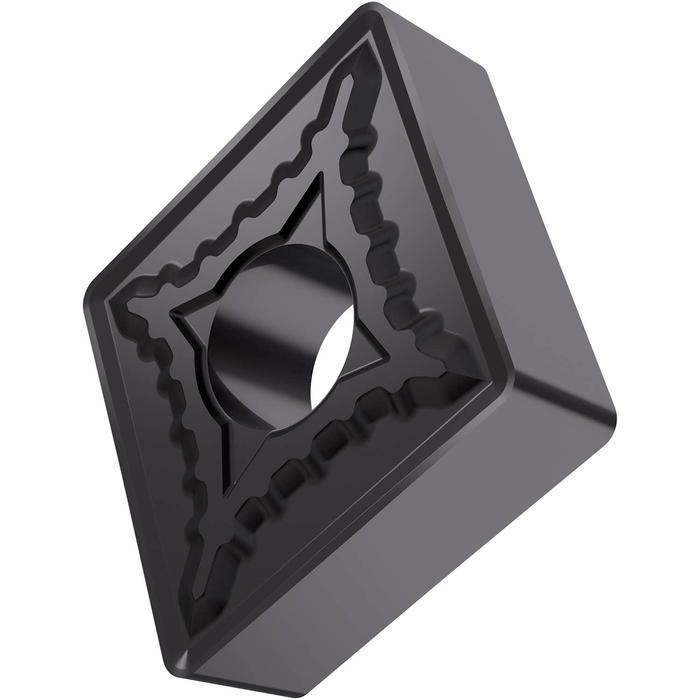

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 5/8", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker SM, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 - P15/M01 - M15/K05 - K20 and S01 - S15, for fine to heavy machining of steels, stainless-steels, cast-irons and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$19.61 - $19.61
$19.61
$19.61 - $19.61
$19.61
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.217

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Shape Code: gid://shopify/Metaobject/130432860222

Insert Thickness: 0.25

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Possible use

High Temp Alloys: Primary use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.625

Chip Breaker: SM

Grade: T6310

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6915809

EAN: 3603603069190

MFG Part Number: 6915809
