WNMG 432-SF:T7335

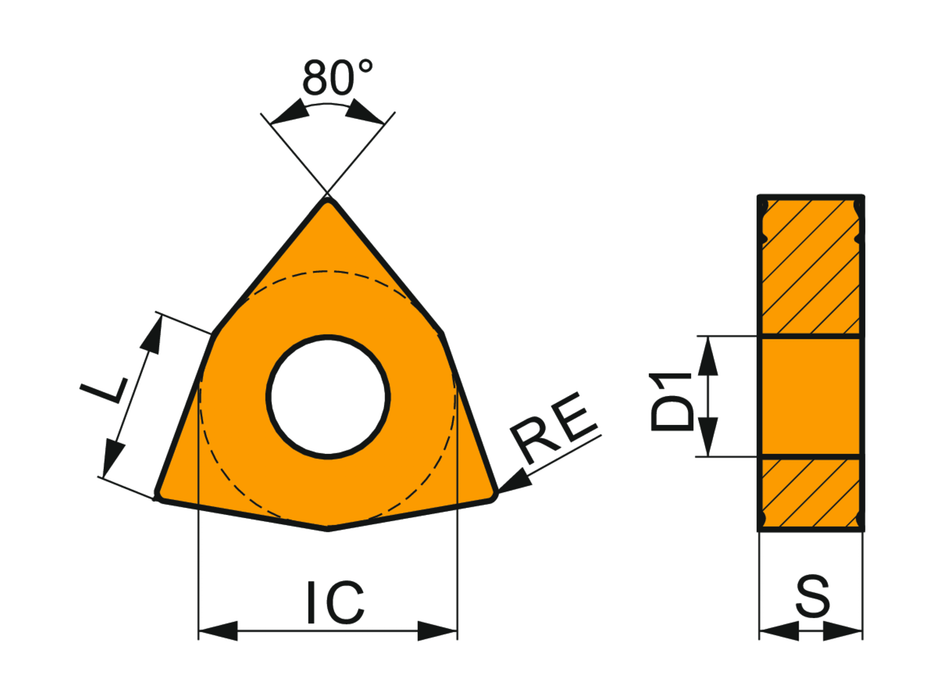

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker SF, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20-M40 and S15-S25, for fine to medium machining of stainless-steels and super-alloys
Sold in packs of: 10
Inscribed circle diameter - inch (IC): 0.5
Coating: T7335
Chip Breaker: SF
Insert Design: WNMG
Corner Radius (IN): 0.031
