50J3R100H50-SAD16E54-C

50J3R100H50-SAD16E54-C

SKU DOR6922377
by Dormer Pramet
Primary Use: Possible Use:

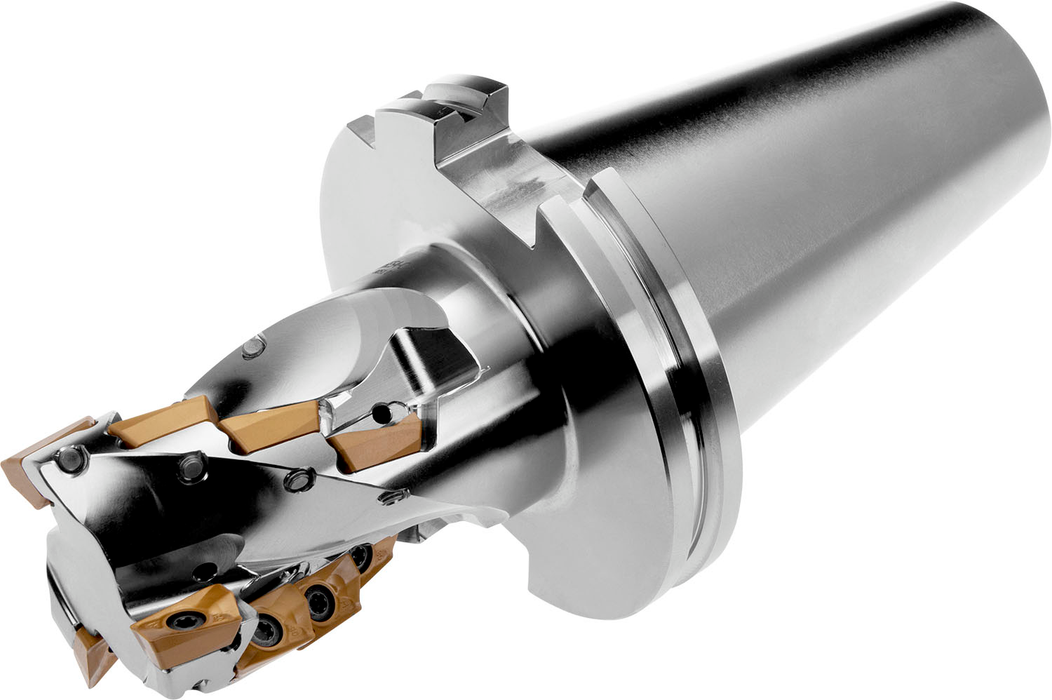

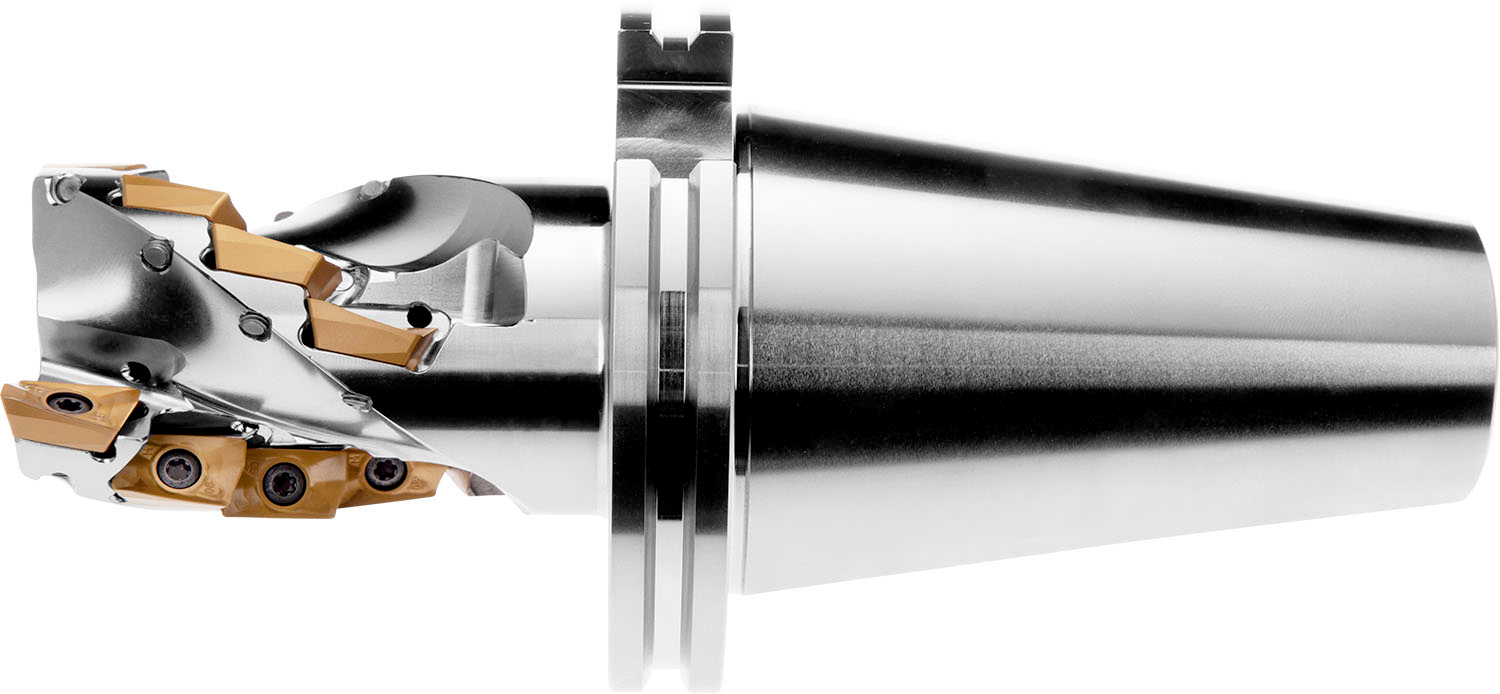

Shoulder mill with extended flute with positve/negative geometry which utilises 12 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 50mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 54mm functional and 202mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 54mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$1,922.00 - $1,922.00
$1,922.00
$1,922.00 - $1,922.00
$1,922.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

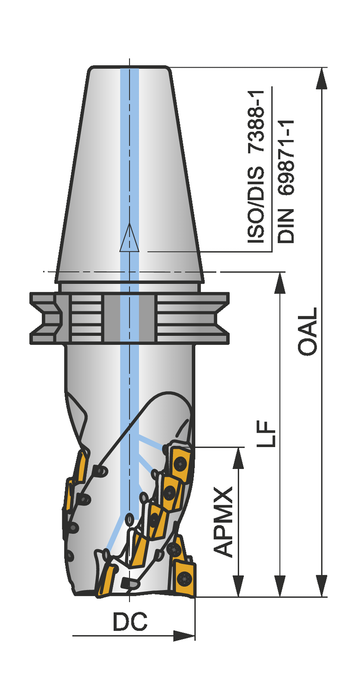

Cutting Diameter - in (DC): 1.969

Cutting Diameter - mm (DC): 50.0

Through Coolant: 1

Overall Length (OAL): 7.953

Tool Direction: Right

Shank: Arbor DIN 69871-1

Cutter Design: J(T)-SAD16E

Cutting Edge Count: 12

EDP: 6922377

EAN: 3603603072046

MFG Part Number: 6922377
