50J3R140H50-SAD16E80-C

50J3R140H50-SAD16E80-C

SKU DOR6922379
by Dormer Pramet
Primary Use: Possible Use:

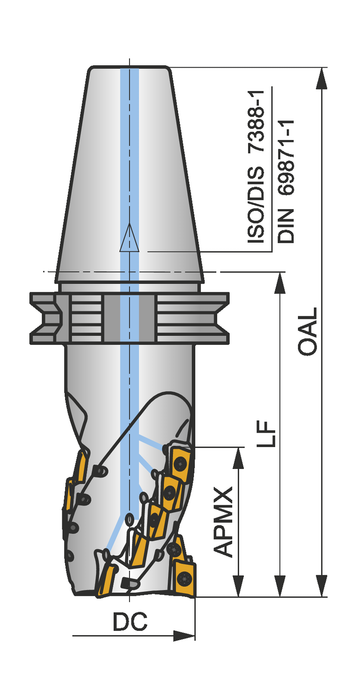

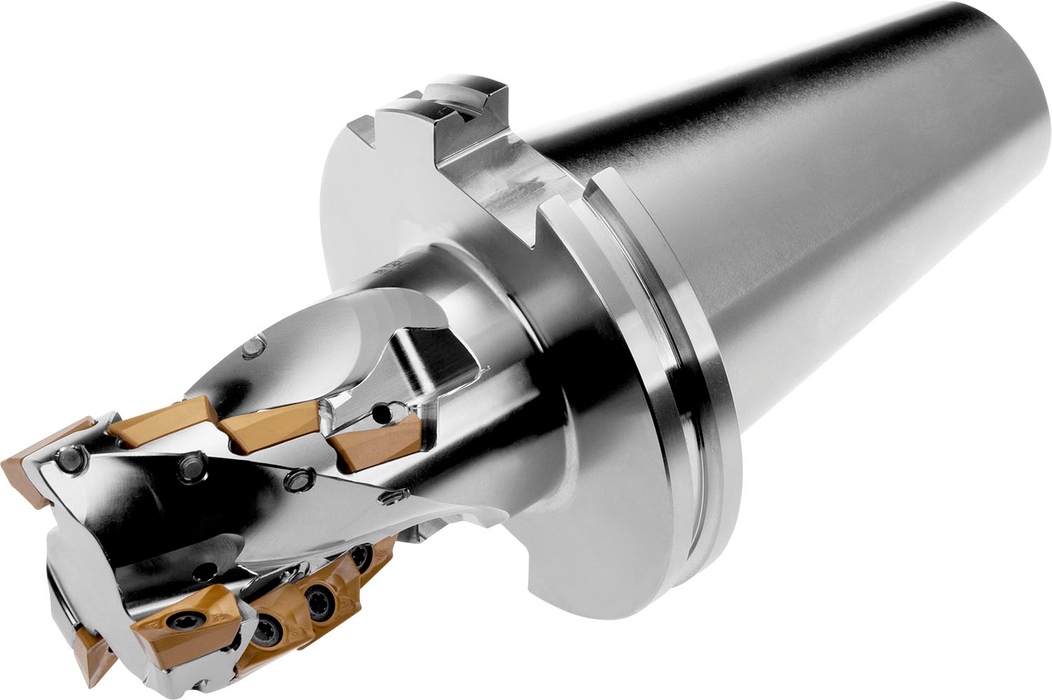

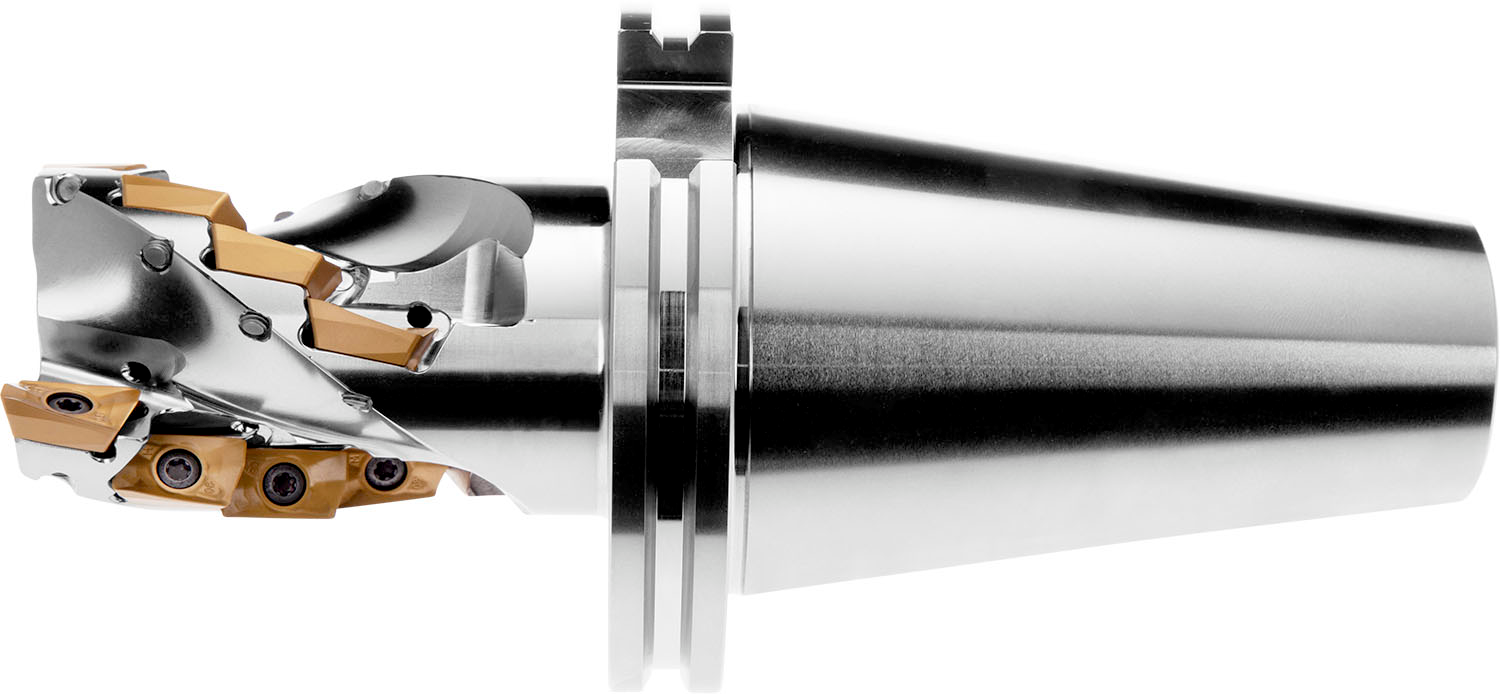

Shoulder mill with extended flute with positve/negative geometry which utilises 18 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 50mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 80mm functional and 242mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 80mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,383.00 - $2,383.00
$2,383.00
$2,383.00 - $2,383.00
$2,383.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 1.969

Cutting Diameter - mm (DC): 50.0

Through Coolant: 1

Overall Length (OAL): 9.528

Tool Direction: Right

Shank: Arbor DIN 69871-1

Cutter Design: J(T)-SAD16E

Cutting Edge Count: 18

EDP: 6922379

EAN: 3603603072060

MFG Part Number: 6922379
