50T03R-S90AD16E40-C

50T03R-S90AD16E40-C

SKU DOR6922411
by Dormer Pramet
Primary Use: Possible Use:

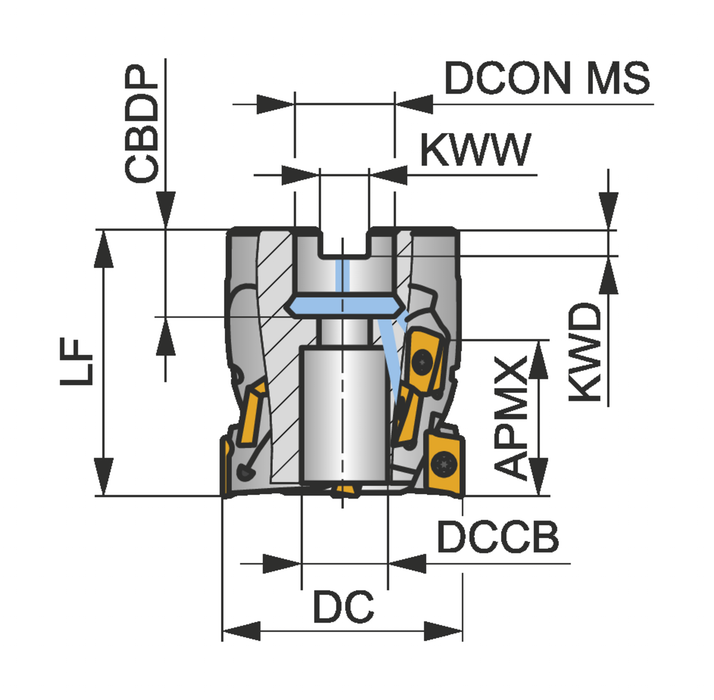

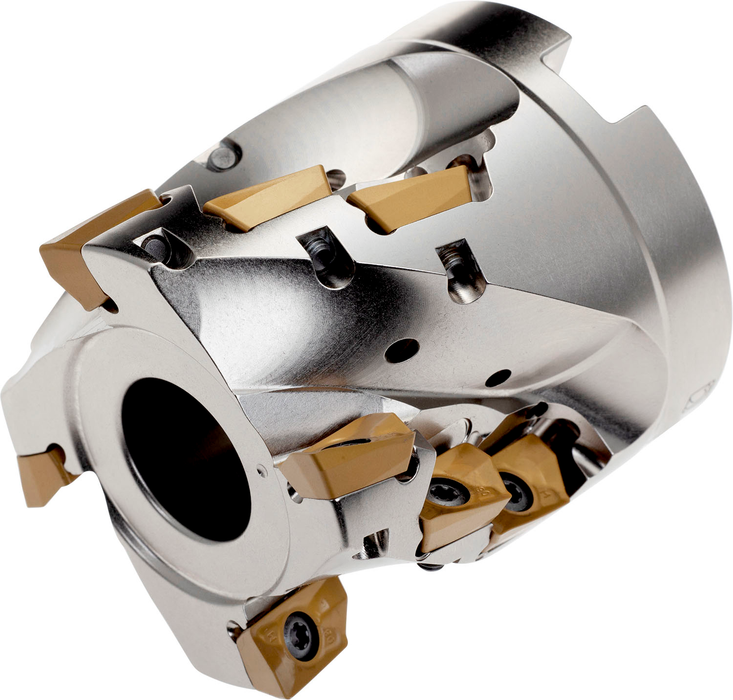

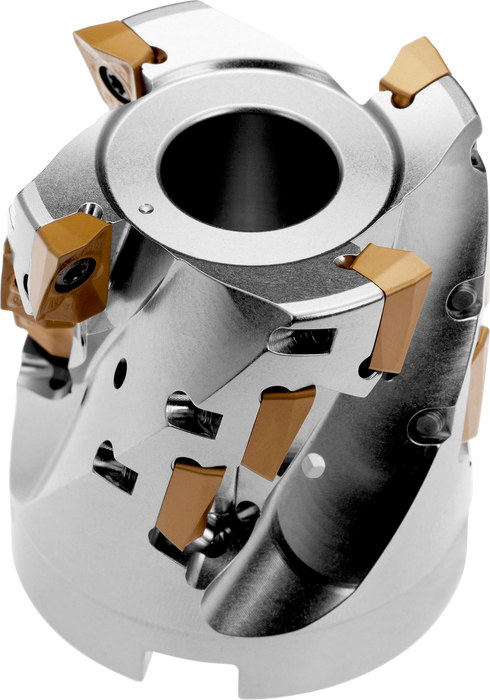

Shoulder mill with extended flute with positve/negative geometry which utilises 9 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030, 40mm functional and 70mm protrusion length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 40mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$1,386.00 - $1,386.00
$1,386.00
$1,386.00 - $1,386.00
$1,386.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 1.969

Cutting Diameter - mm (DC): 50.0

Through Coolant: 1

Connetion Diameter: 0.866

Tool Direction: Right

Shank: Shell mill DIN 8030 – helical mill

Cutter Design: J(T)-SAD16E

Cutting Edge Count: 9

EDP: 6922411

EAN: 3603603072084

MFG Part Number: 6922411
