63J3R155H50-SAD16E95-C

63J3R155H50-SAD16E95-C

SKU DOR6922414
by Dormer Pramet
Primary Use: Possible Use:

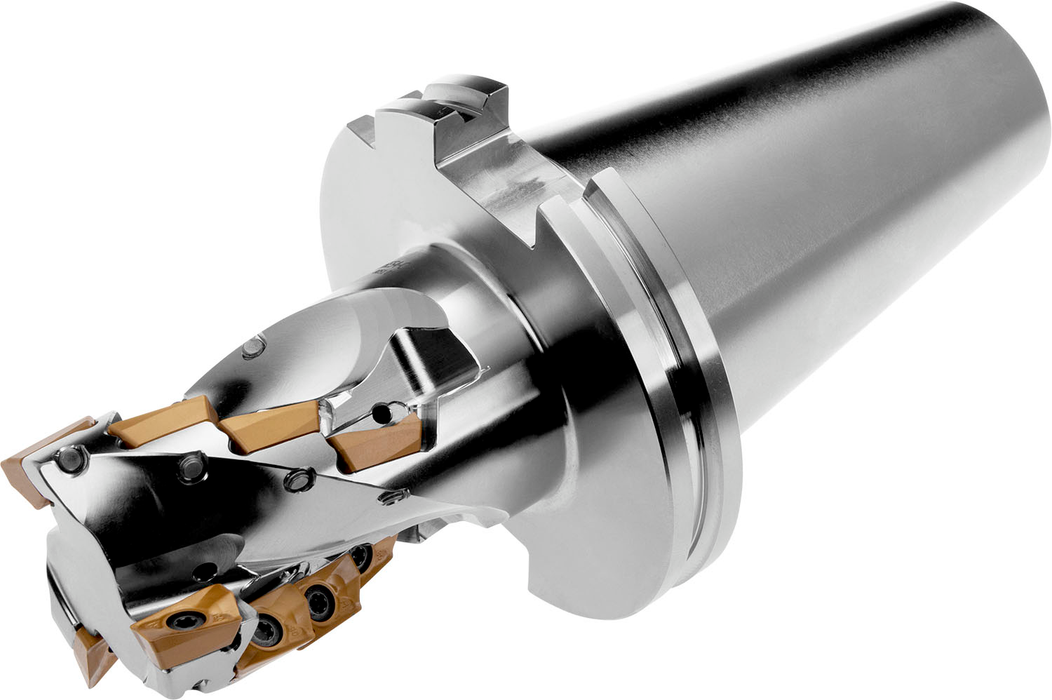

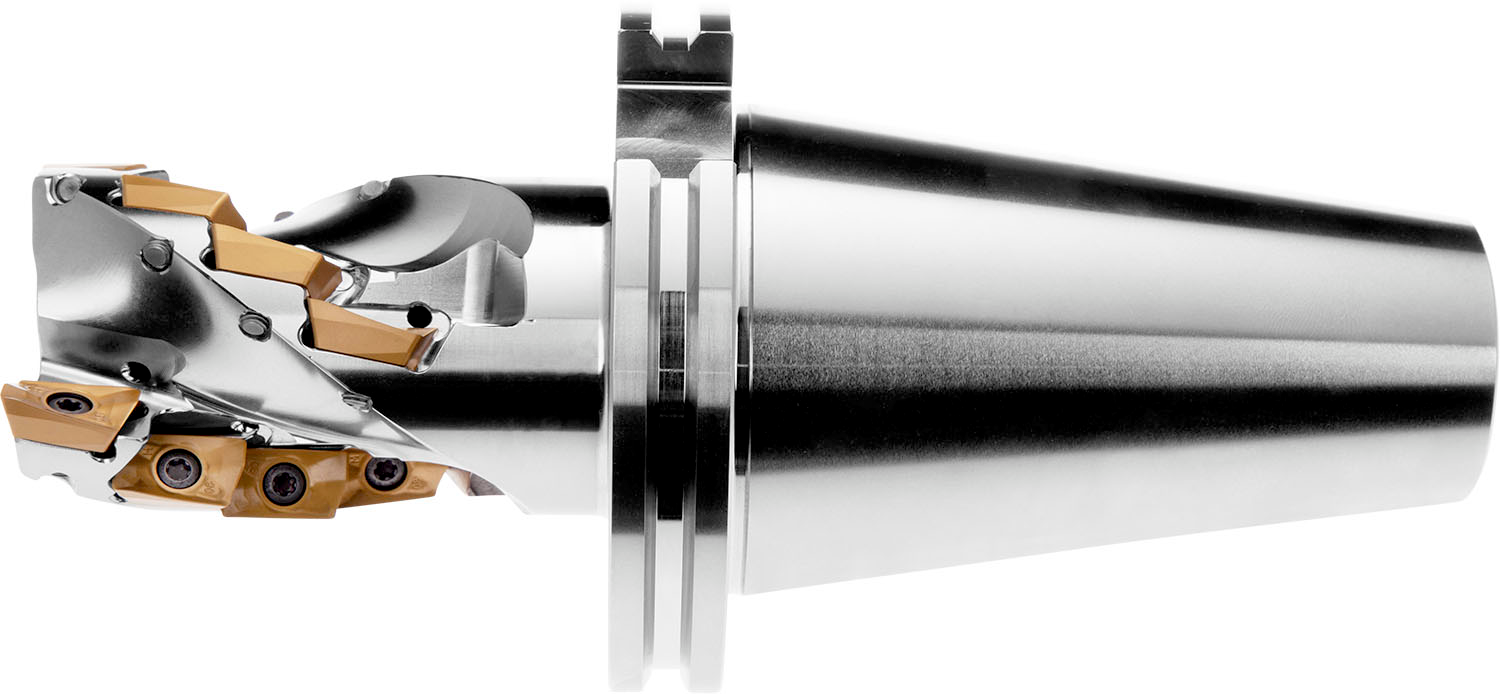

Shoulder mill with extended flute with positve/negative geometry which utilises 21 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 63mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 95mm functional and 257mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,588.00 - $2,588.00
$2,588.00
$2,588.00 - $2,588.00
$2,588.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

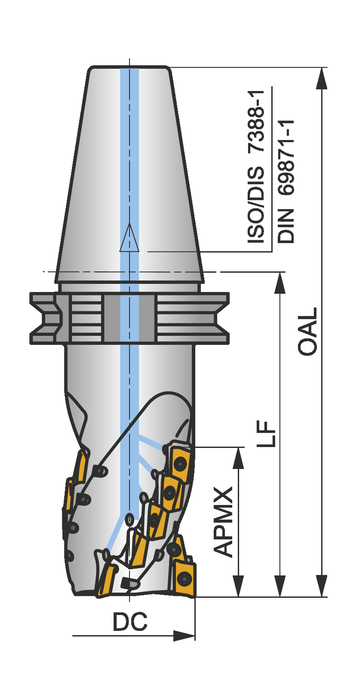

Cutting Diameter - in (DC): 2.48

Cutting Diameter - mm (DC): 63.0

Through Coolant: 1

Overall Length (OAL): 10.118

Tool Direction: Right

Shank: Arbor DIN 69871-1

Cutter Design: J(T)-SAD16E

Cutting Edge Count: 21

EDP: 6922414

EAN: 3603603072114

MFG Part Number: 6922414
