63T04R-S90AD16E68-C

63T04R-S90AD16E68-C

SKU DOR6922417
by Dormer Pramet
Primary Use: Possible Use:

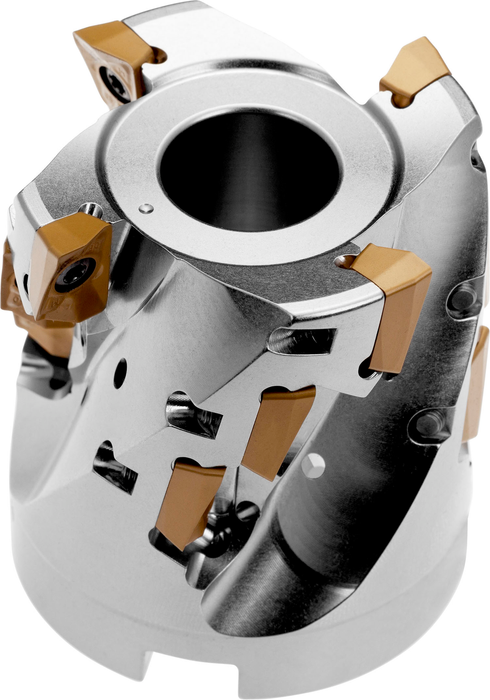

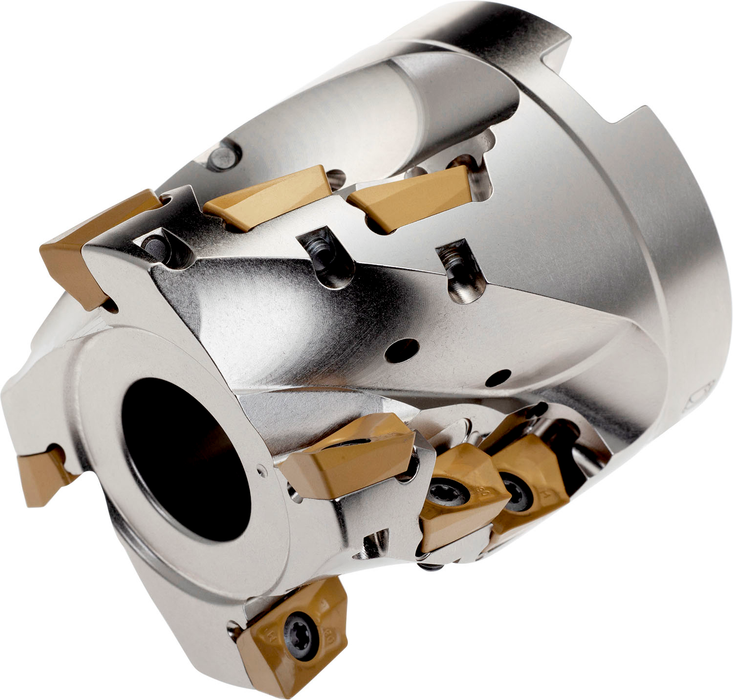

Shoulder mill with extended flute with positve/negative geometry which utilises 20 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 63mm with 90° approach angle and 27mm connection bore according to DIN 8030, 68mm functional and 100mm protrusion length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 68mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,167.00 - $2,167.00
$2,167.00
$2,167.00 - $2,167.00
$2,167.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

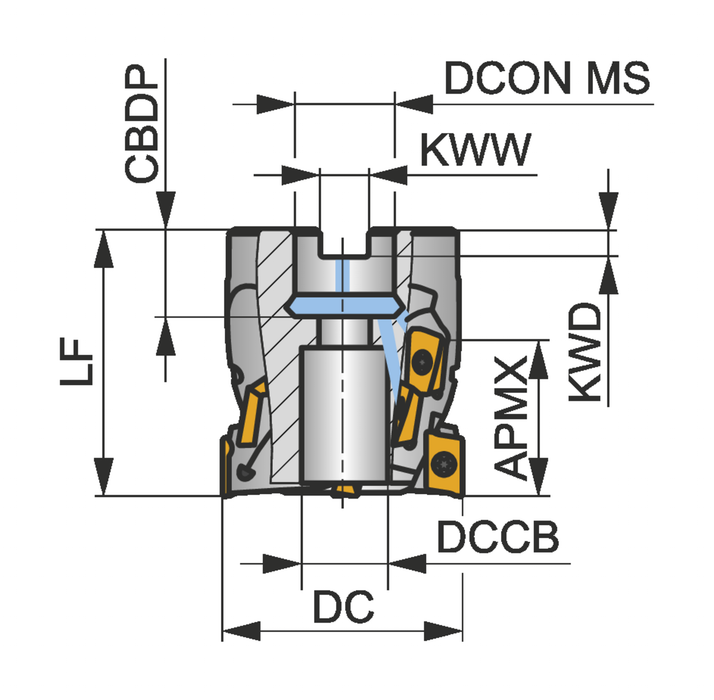

Cutting Diameter - in (DC): 2.48

Cutting Diameter - mm (DC): 63.0

Through Coolant: 1

Connetion Diameter: 1.063

Tool Direction: Right

Shank: Shell mill DIN 8030 – helical mill

Cutter Design: J(T)-SAD16E

Cutting Edge Count: 20

EDP: 6922417

EAN: 3603603072145

MFG Part Number: 6922417
