80J4R165G50-SAD16E108-C

80J4R165G50-SAD16E108-C

SKU DOR6922418
by Dormer Pramet
Primary Use: Possible Use:

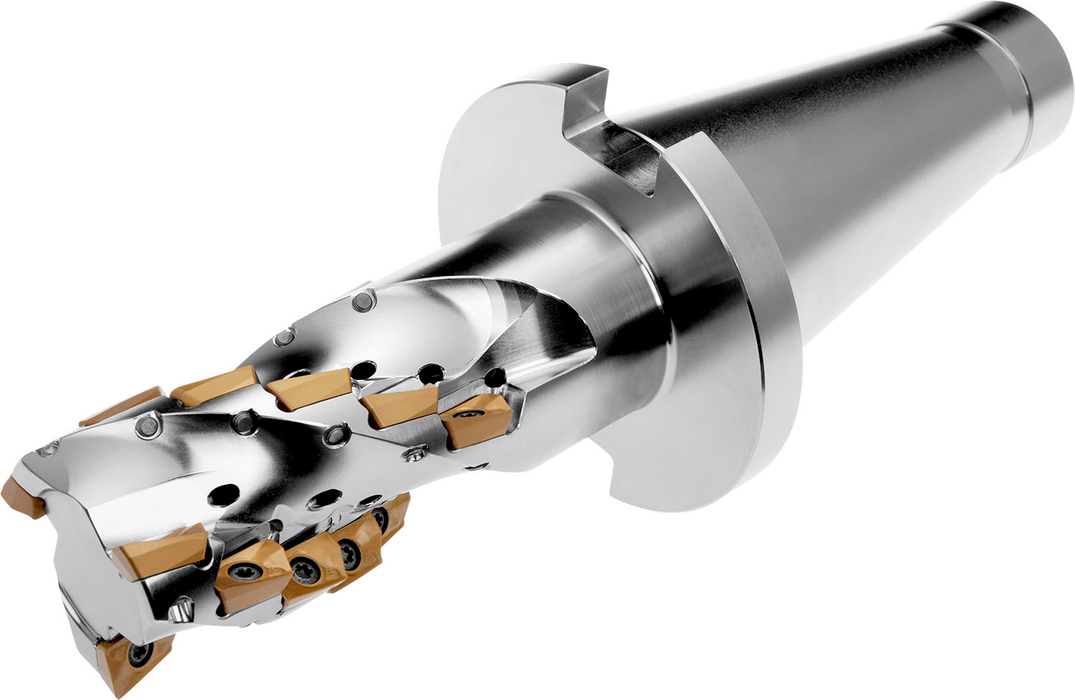

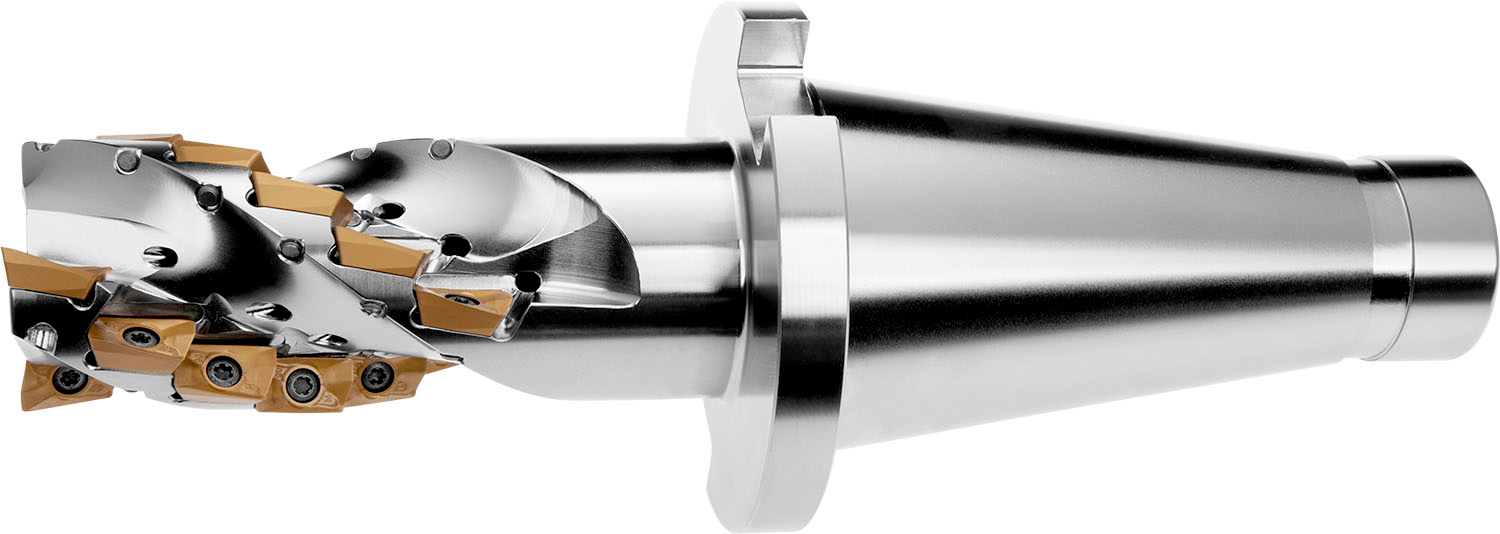

Shoulder mill with extended flute with positve/negative geometry which utilises 32 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO 297, 108mm functional and 292mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 108mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$3,230.00 - $3,230.00
$3,230.00
$3,230.00 - $3,230.00
$3,230.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

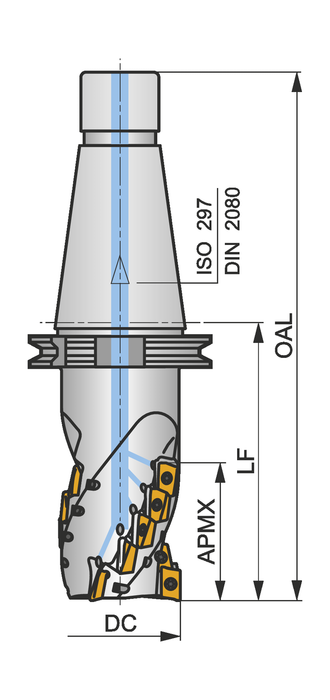

Cutting Diameter - in (DC): 3.15

Cutting Diameter - mm (DC): 80.0

Through Coolant: 1

Overall Length (OAL): 11.496

Tool Direction: Right

Shank: Arbor DIN 2080-1

Cutter Design: J(T)-SAD16E

Cutting Edge Count: 32

EDP: 6922418

EAN: 3603603072152

MFG Part Number: 6922418
