80J4R165H50-SAD16E108-C

80J4R165H50-SAD16E108-C

SKU DOR6922419
by Dormer Pramet
Primary Use: Possible Use:

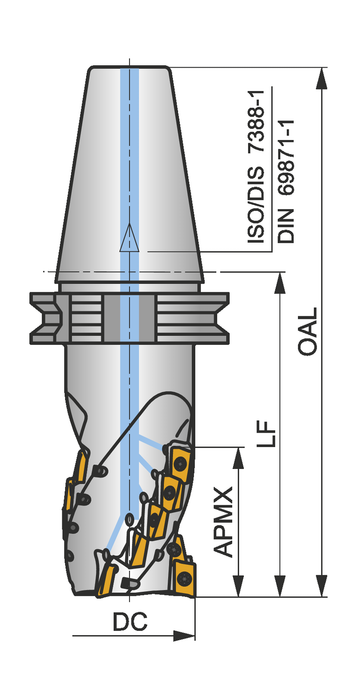

Shoulder mill with extended flute with positve/negative geometry which utilises 32 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 108mm functional and 257mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 108mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$3,230.00 - $3,230.00
$3,230.00
$3,230.00 - $3,230.00
$3,230.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 3.15

Cutting Diameter - mm (DC): 80.0

Through Coolant: 1

Overall Length (OAL): 10.118

Tool Direction: Right

Shank: Arbor DIN 69871-1

Cutter Design: J(T)-SAD16E

Cutting Edge Count: 32

EDP: 6922419

EAN: 3603603072169

MFG Part Number: 6922419
