80J4R165X50-SAD16E95-C

80J4R165X50-SAD16E95-C

SKU DOR6922420
by Dormer Pramet
Primary Use: Possible Use:

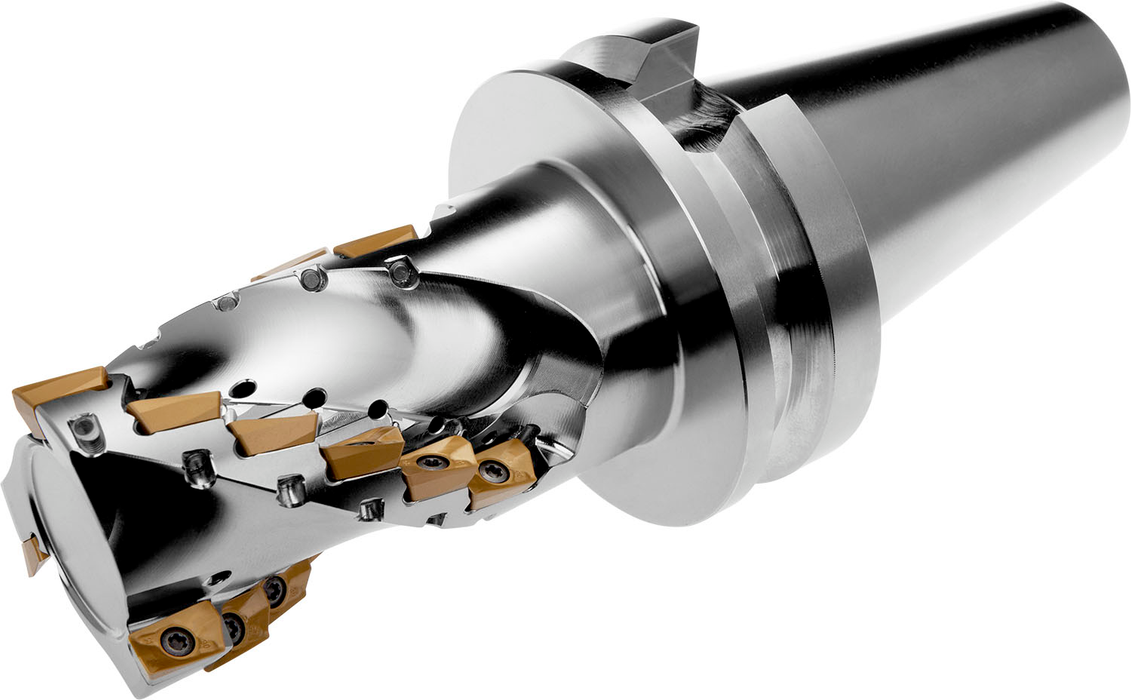

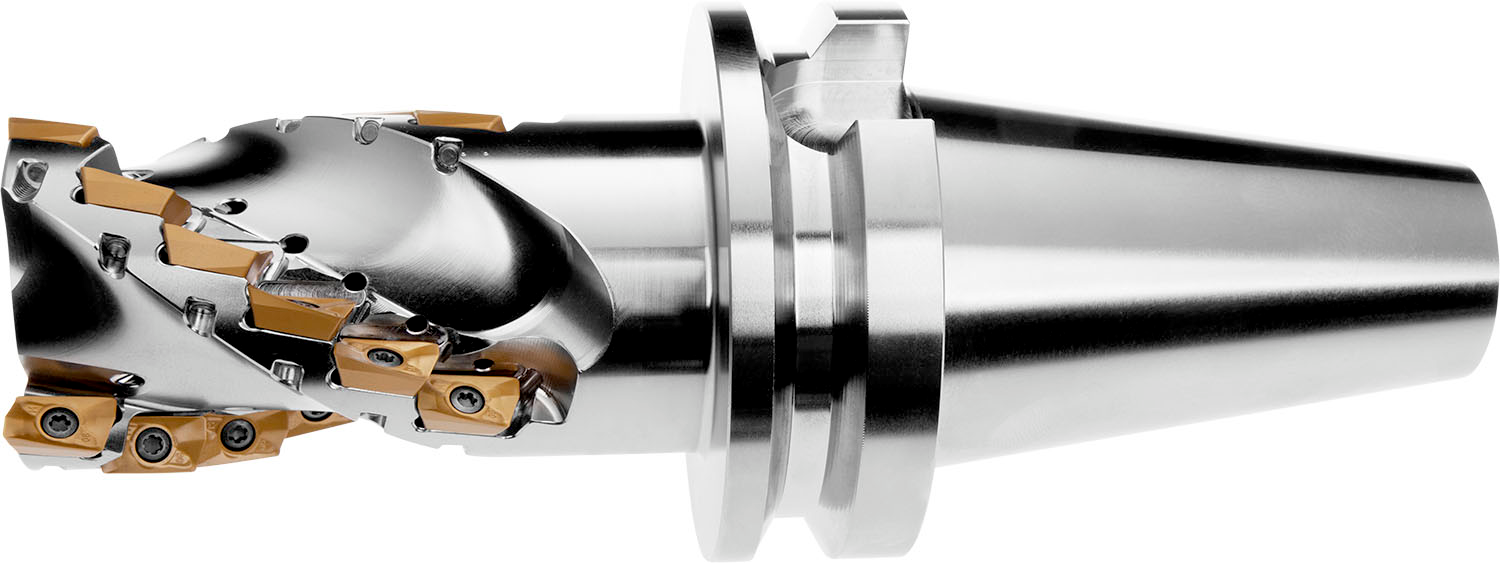

Shoulder mill with extended flute with positve/negative geometry which utilises 28 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95mm functional and 267mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,713.00 - $2,713.00
$2,713.00
$2,713.00 - $2,713.00
$2,713.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

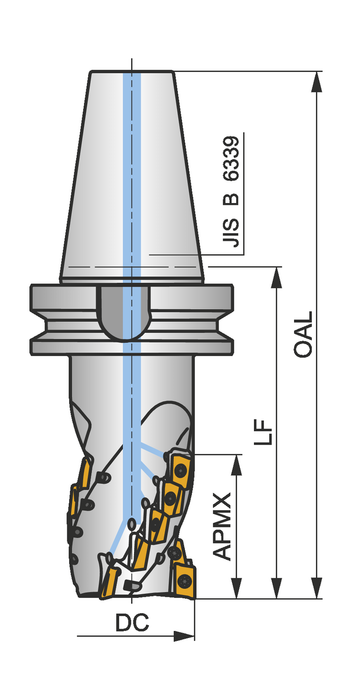

Cutting Diameter - in (DC): 3.15

Cutting Diameter - mm (DC): 80.0

Through Coolant: 1

Overall Length (OAL): 10.512

Tool Direction: Right

Shank: Arbor MAS BT (JIS-B-6339)

Cutter Design: J(T)-SAD16E

Cutting Edge Count: 28

EDP: 6922420

EAN: 3603603072176

MFG Part Number: 6922420
