LC 2016-KP:M8310

LC 2016-KP:M8310

SKU DOR6922539
by Dormer Pramet
Primary Use:

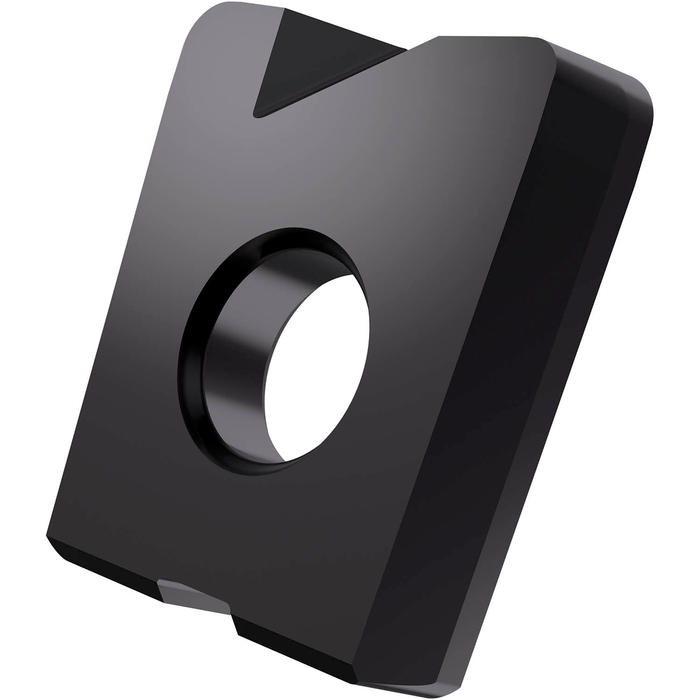

Toroidal copy milling insert with a diameter of .7874" and .063" corner radii for a maximum depth of cut of .063", KP geometry and M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-SRC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$69.43 - $69.43
$69.43
$69.43 - $69.43
$69.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

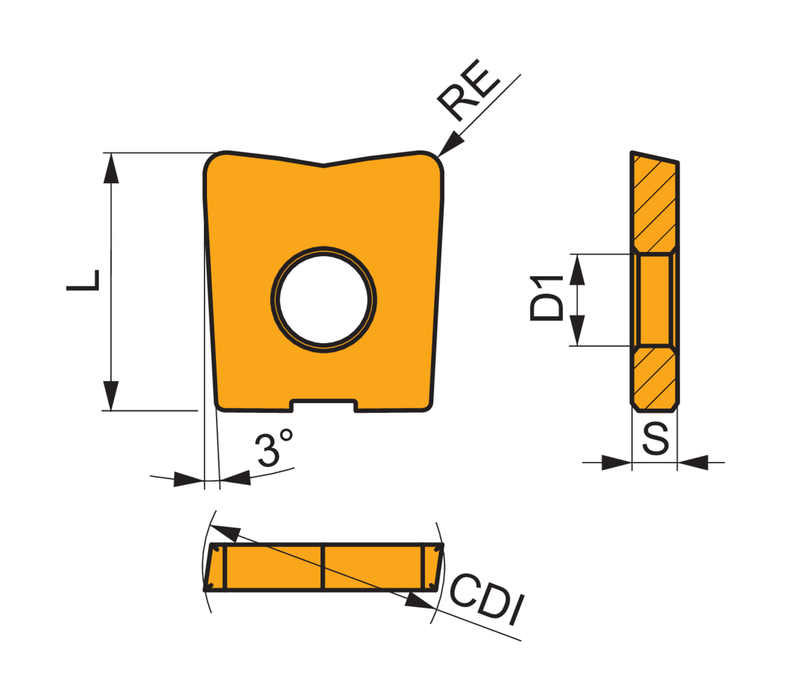

Max. Depth of Cut: 0.063

Insert Design: LC

Insert Shape Code: L - rectangular

Insert Thickness: 0.118

Chip Breaker: KP

Grade: M8310

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6922539

EAN: 3603603072619

MFG Part Number: 6922539
