TNMA 432:T5315

TNMA 432:T5315

SKU DOR6922802
by Dormer Pramet
Primary Use: Possible Use:

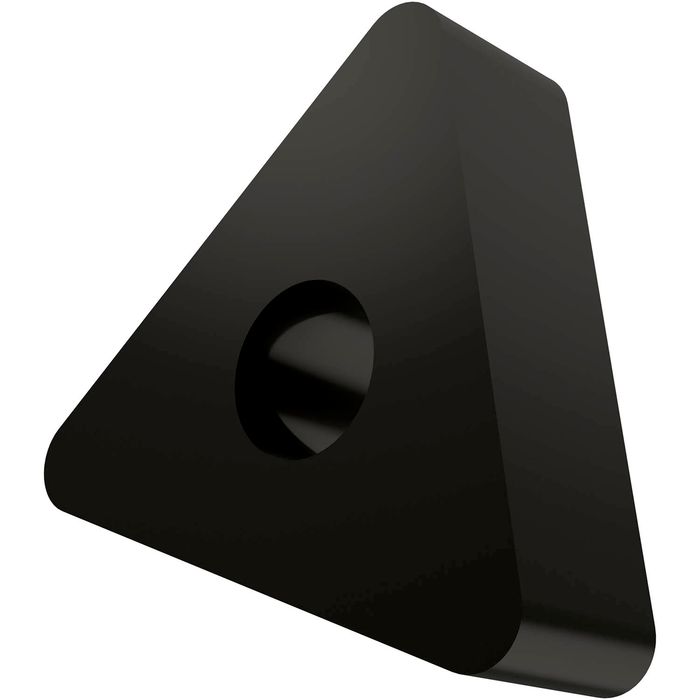

Double-sided negative turning insert, triangular with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$15.61 - $15.61
$15.61
$15.61 - $15.61
$15.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

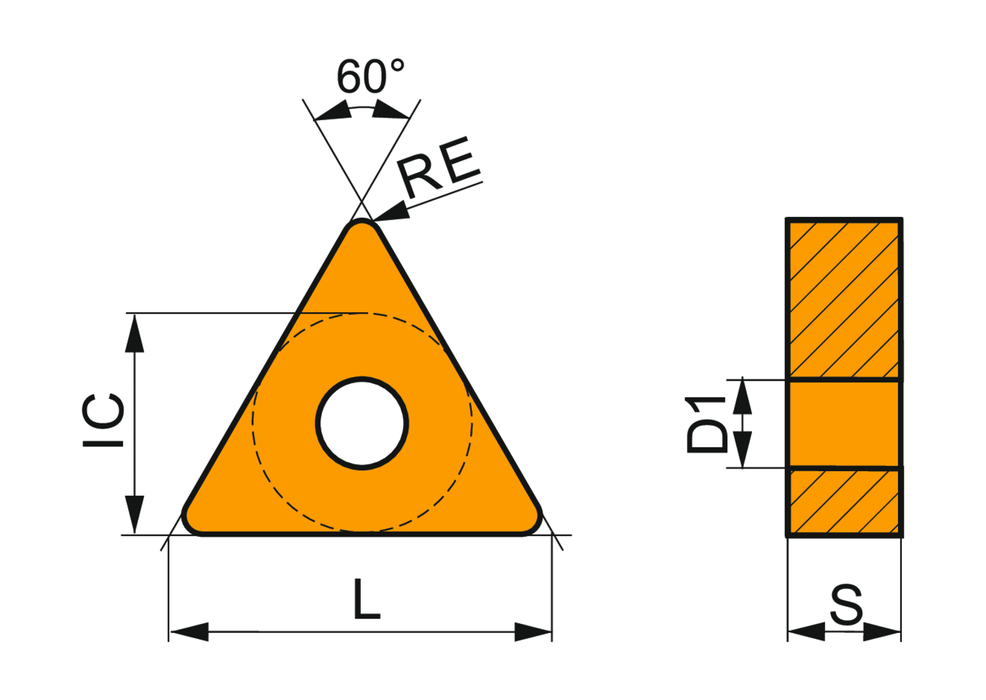

Max. Depth of Cut: 0.252

Insert Design: TNMA

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: No chipbreaker

Grade: T5315

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6922802

EAN: 3603603076280

MFG Part Number: 6922802
