CCMW 32.51:T5315

CCMW 32.51:T5315

SKU DOR6922807
by Dormer Pramet
Primary Use: Possible Use:

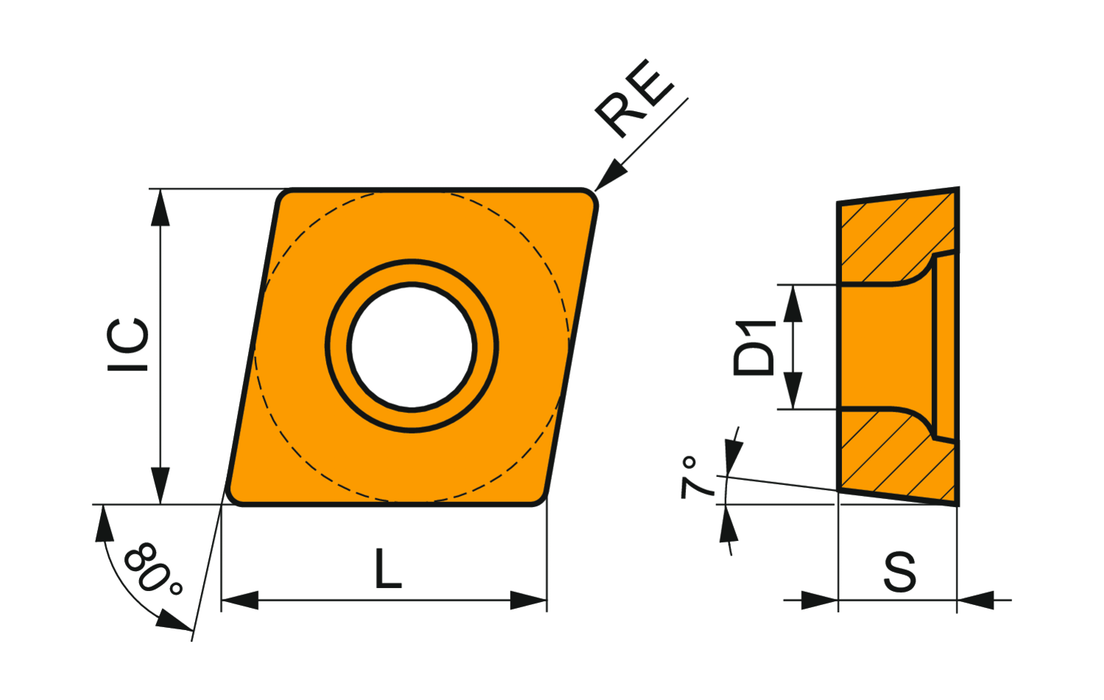

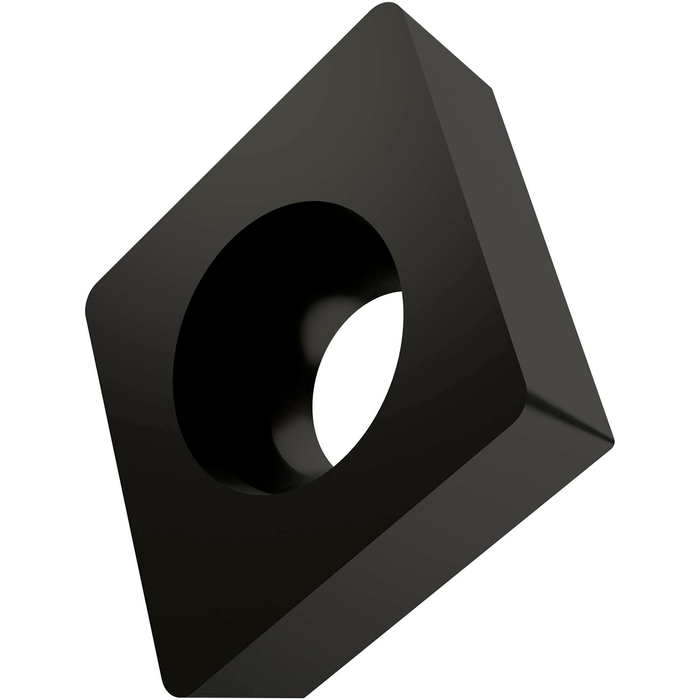

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$11.79 - $11.79
$11.79
$11.79 - $11.79
$11.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.248

Insert Design: CCMW

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: No chipbreaker

Grade: T5315

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6922807

EAN: 3603603076334

MFG Part Number: 6922807
