SEET 09T3AFEN:M6330

SEET 09T3AFEN:M6330

SKU DOR6925530
by Dormer Pramet
Primary Use: Possible Use:

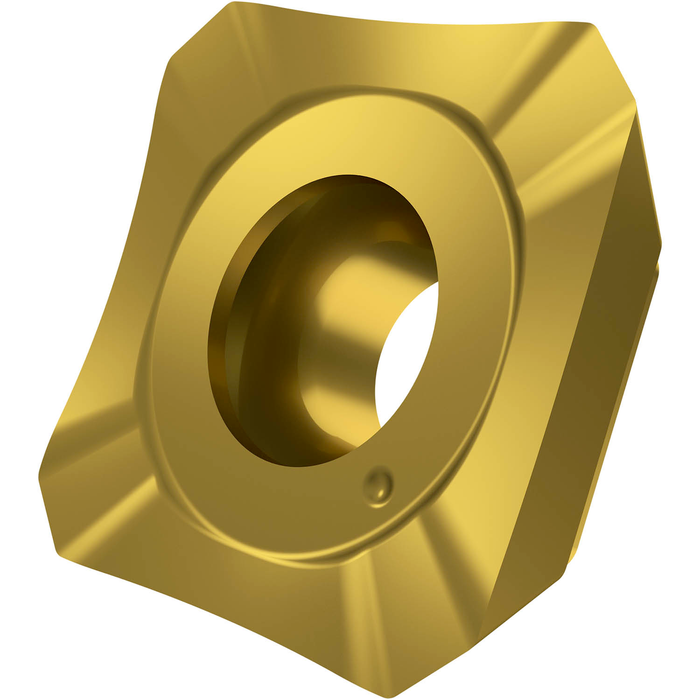

Single-sided milling insert SEET 09T3 with chip-breakers, square for a maximum depth of cut of .1772", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M6330 PVD coated WC-Co carbide within ISO-grade ranges M20-M35 and S10-S30 for machining of stainless-steel and superalloy with face mills SSE09

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$20.83 - $20.83
$20.83
$20.83 - $20.83
$20.83
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

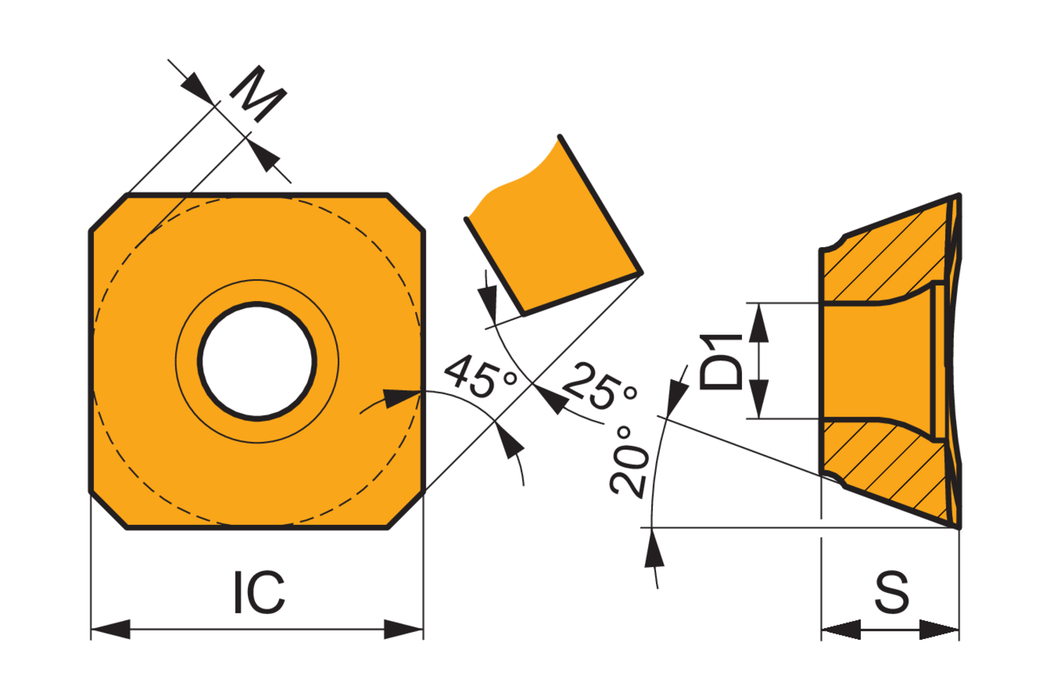

Max. Depth of Cut: 0.177

Insert Design: SEET

Insert Shape Code: S - square

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: With chipbreaker -no designation

Grade: M6330

EDP: 6925530

EAN: 3603603074637

MFG Part Number: 6925530
