TNGJ 281025-PF-S01:T9226

TNGJ 281025-PF-S01:T9226

SKU DOR6931834
by Dormer Pramet
Primary Use: Possible Use:

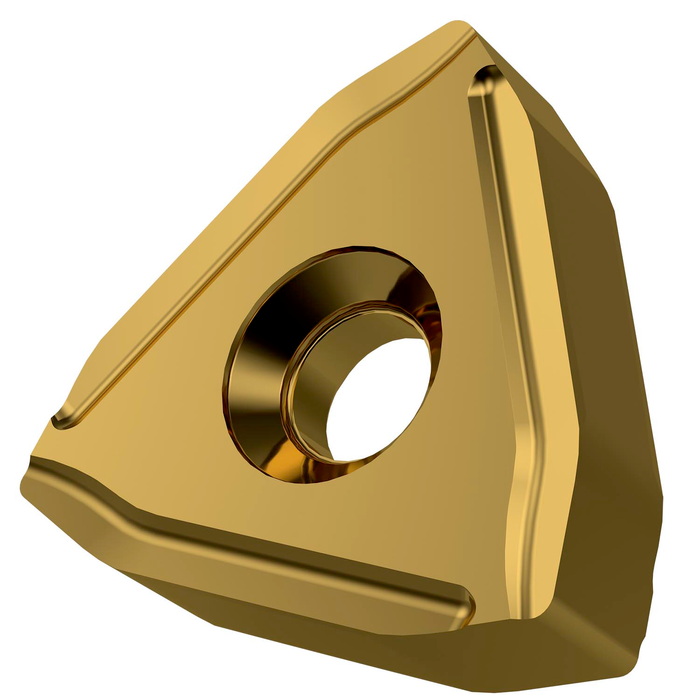

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6mm, 10mm thick for 2.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S01 cutting edge preperation, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for high strength steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 3

For more information about this product, click here
$95.71 - $95.71
$95.71
$95.71 - $95.71
$95.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

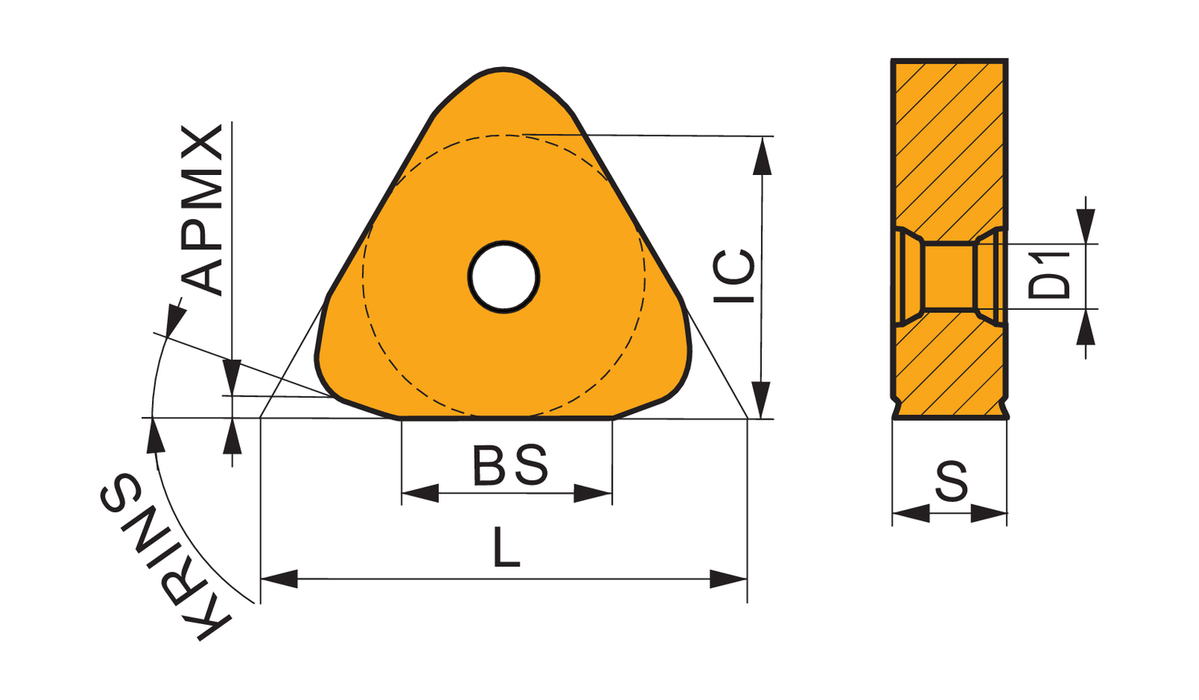

Max. Depth of Cut: 0.098

Insert Design: TNGJ

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.394

Inscribed Circle Diameter: 1.126

Chip Breaker: PF-S01

Grade: T9226

EDP: 6931834

EAN: 3603603078826

MFG Part Number: 6931834
