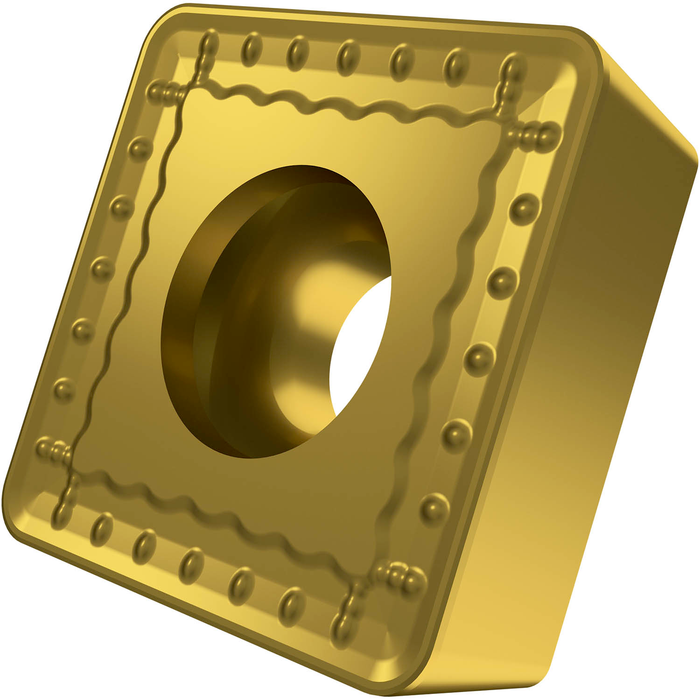

SCMT 866-OR:T9226

SCMT 866-OR:T9226

SKU DOR6931863
by Dormer Pramet
Primary Use: Possible Use:

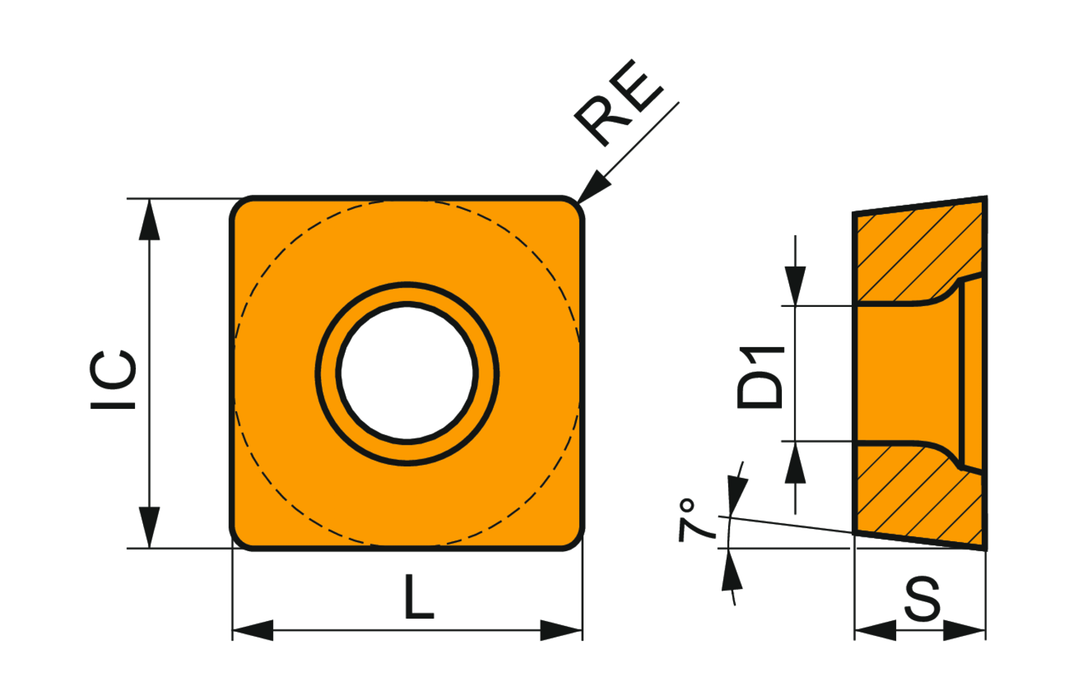

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 1", 3/8" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker OR, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for heavy to extra heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$70.21 - $70.21
$70.21
$70.21 - $70.21
$70.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.63

Insert Design: SCMT

Insert Shape Code: S - square

Insert Thickness: 0.375

Inscribed Circle Diameter: 1.0

Chip Breaker: OR_

Grade: T9226

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 6931863

EAN: 3603603078970

MFG Part Number: 6931863
