TNMM 546-HR:T9226

TNMM 546-HR:T9226

SKU DOR6931891
by Dormer Pramet
Primary Use: Possible Use:

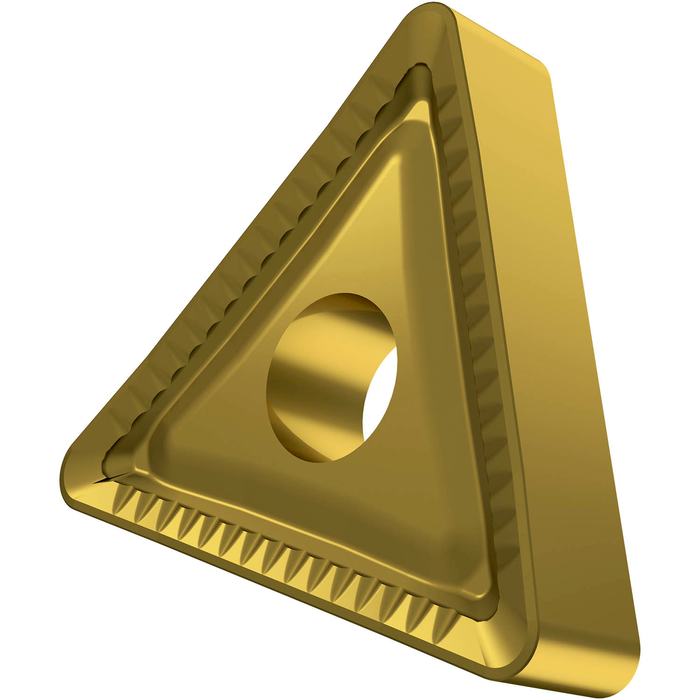

Double-sided negative turning insert, triangular with inscribed circle diameter of 5/8", 1/4" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker HR, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 - P35, for heavy to extra heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$24.97 - $24.97
$24.97
$24.97 - $24.97
$24.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

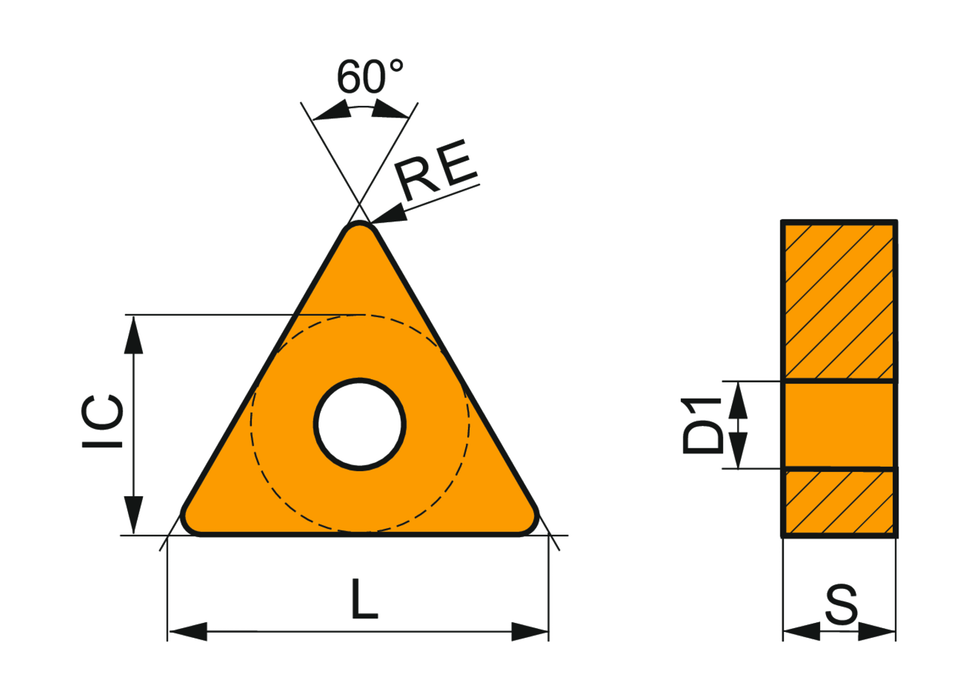

Max. Depth of Cut: 0.35

Insert Design: TNMM

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.625

Chip Breaker: HR

Grade: T9226

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 6931891

EAN: 3603603079250

MFG Part Number: 6931891
