LNMU 160708SR-R:M8340

LNMU 160708SR-R:M8340

SKU DOR6941421
by Dormer Pramet
Primary Use: Possible Use:

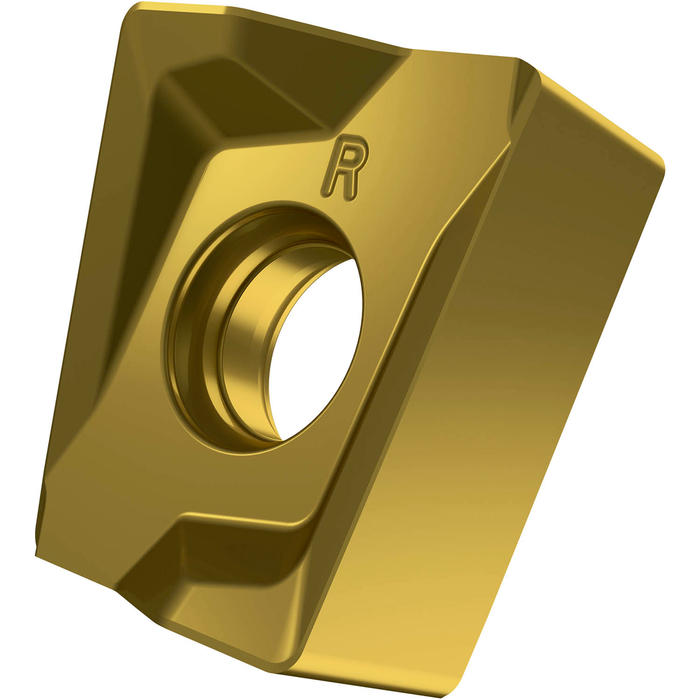

Double-sided milling insert LNMU 1607 with chip-breakers, rectangular for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills SLN16

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$28.37 - $28.37
$28.37
$28.37 - $28.37
$28.37
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

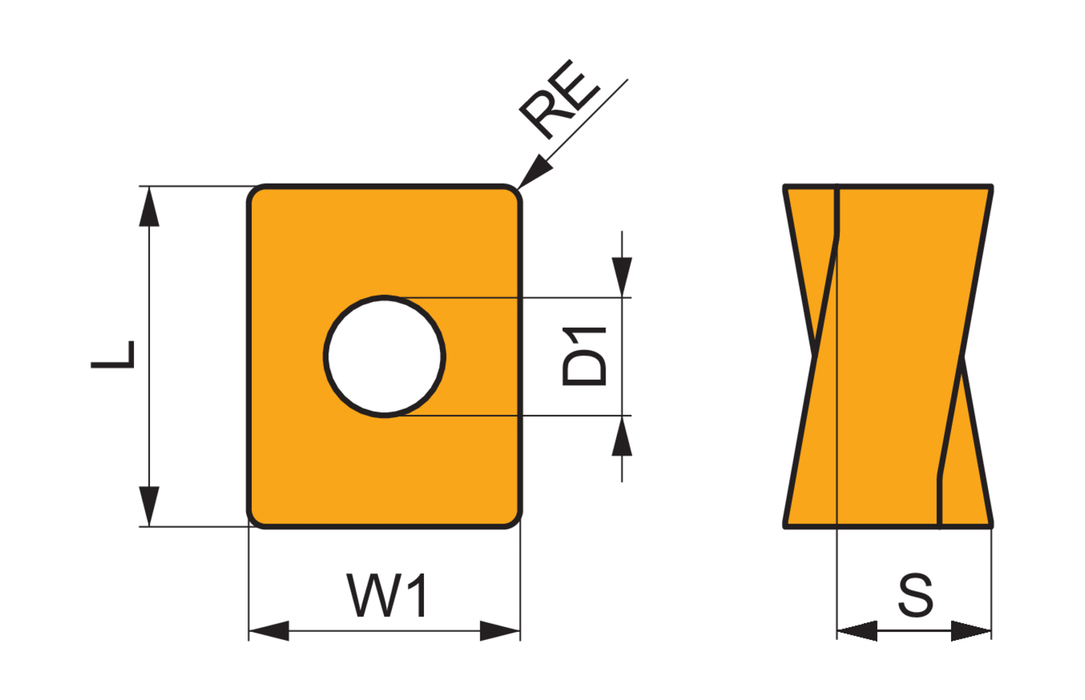

Max. Depth of Cut: 0.512

Insert Design: LNMU

Insert Shape Code: L - rectangular

Insert Thickness: 0.295

Chip Breaker: R

Grade: M8340

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6941421

EAN: 3603603081185

MFG Part Number: 6941421
