S7138.0

S7138.0

SKU DOR7002455
by Dormer Pramet
Primary Use:

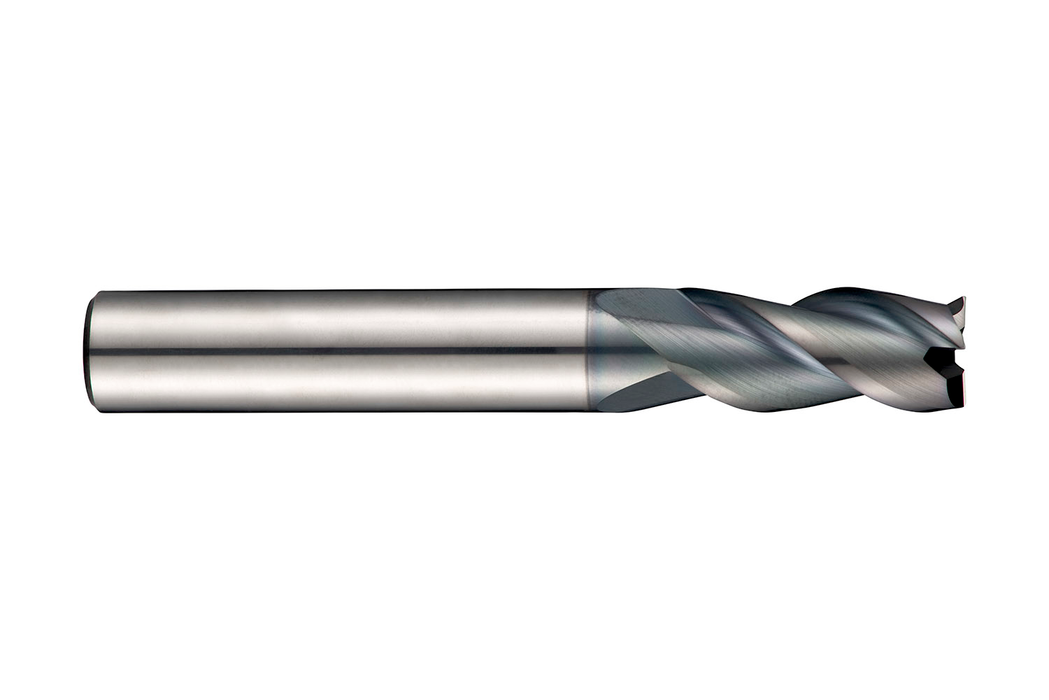

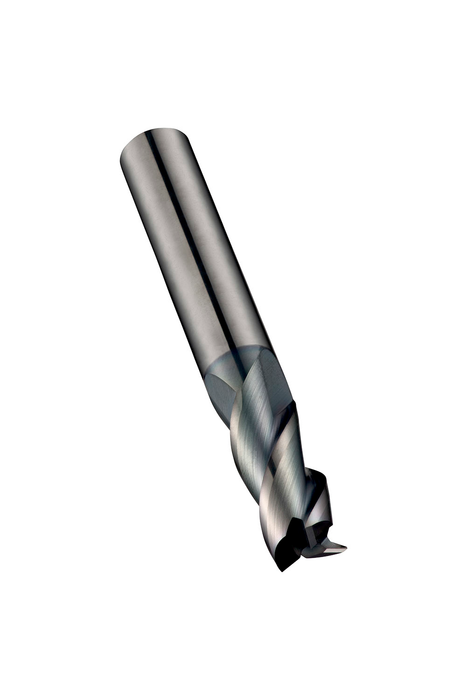

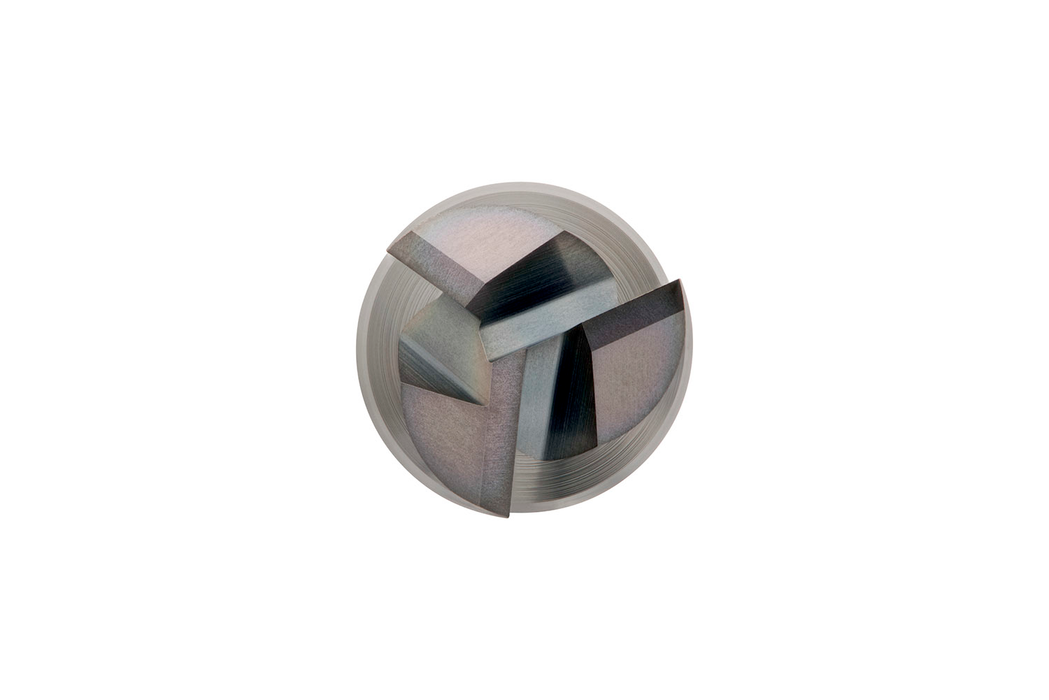

Short series end mill with 3 flutes, diameter 8mm with 20mm length of cut and 64mm overall length, according to DORMER standard with a 8mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling and slot milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$76.11 - $76.11
$76.11
$76.11 - $76.11
$76.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

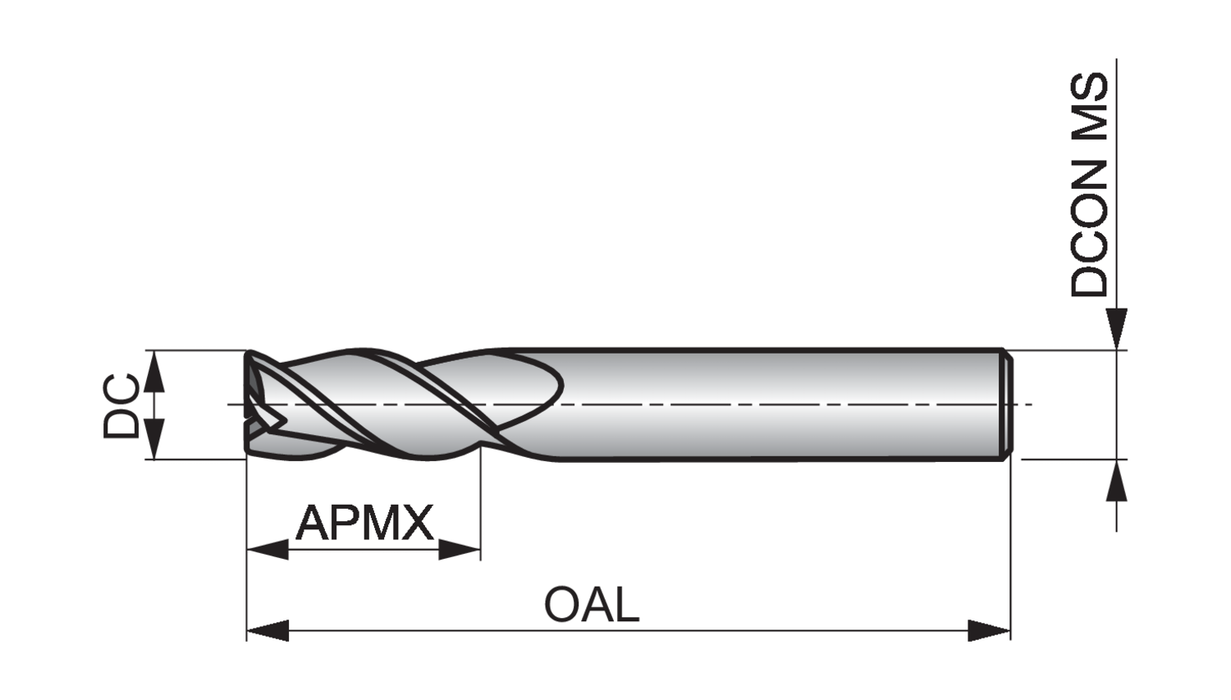

Cutting Diameter - in (DC): 0.315

Cutting Diameter - mm (DC): 8.0

Overall Length (OAL): 2.5197

Connetion Diameter: 0.315

Max. Depth of Cut: 0.7874

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 3

EDP: 47002455

EAN: 7320760689967

MFG Part Number: 7002455
