A1471.1

A1471.1

SKU DOR7022358
by Dormer Pramet
Primary Use: Possible Use:

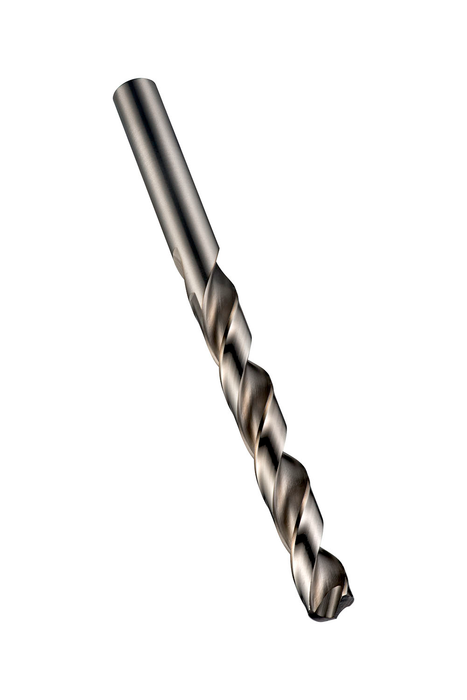

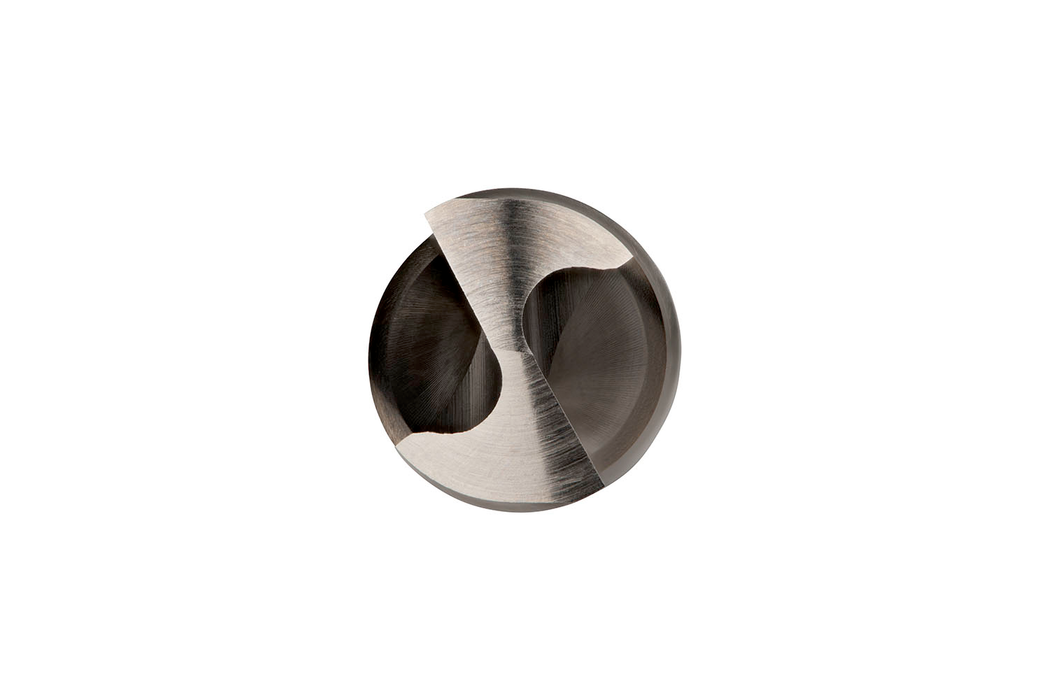

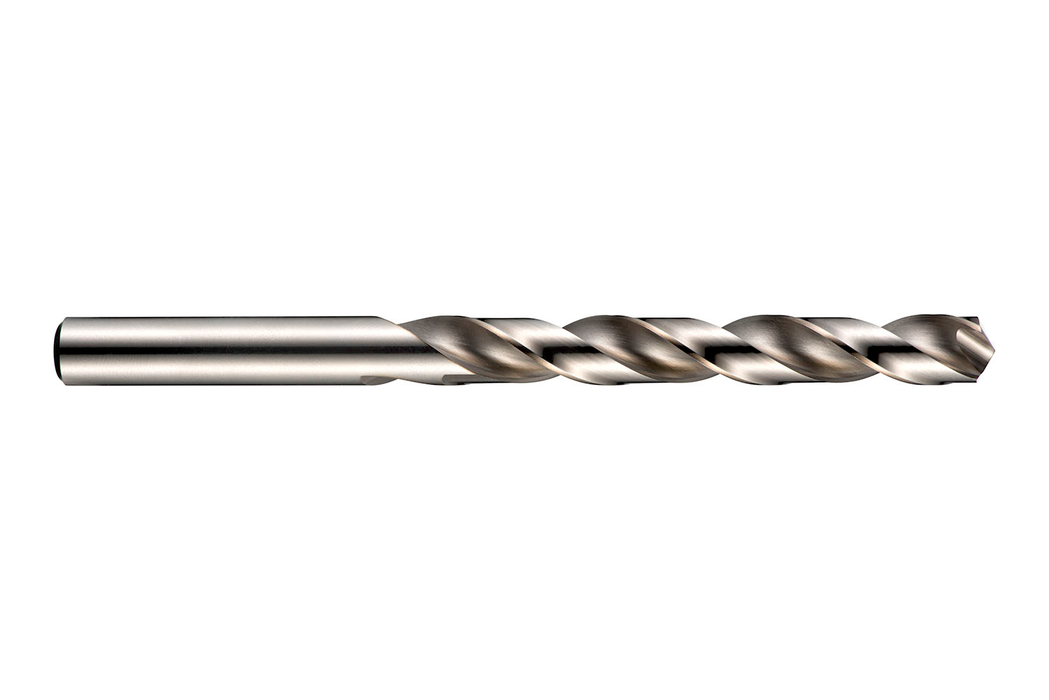

Jobber length drill with straight shank, diameter 1.1mm with an overall length of 36mm and flute length of 14mm according to DIN 338 standard with 130° thinned conical point with corrected cutting lips, cobalt based HSS-E with bright finish for 4xD drilling without pecking in stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$7.94 - $7.94
$7.94
$7.94 - $7.94
$7.94
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.0433

Cutting Diameter - mm (DC): 1.1

Drill Point Angle - deg: 130

Flute Length: 0.5512

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 1.4173

Connetion Diameter: 0.0433

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 47022358

EAN: 7320760690697

MFG Part Number: 7022358
