A1475.7

A1475.7

SKU DOR7022444
by Dormer Pramet
Primary Use: Possible Use:

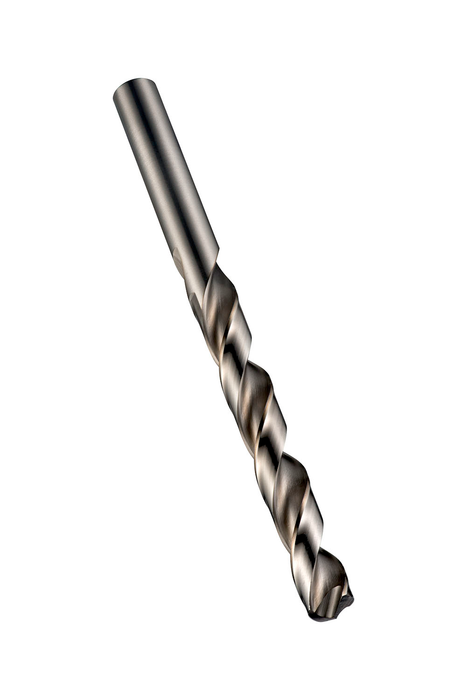

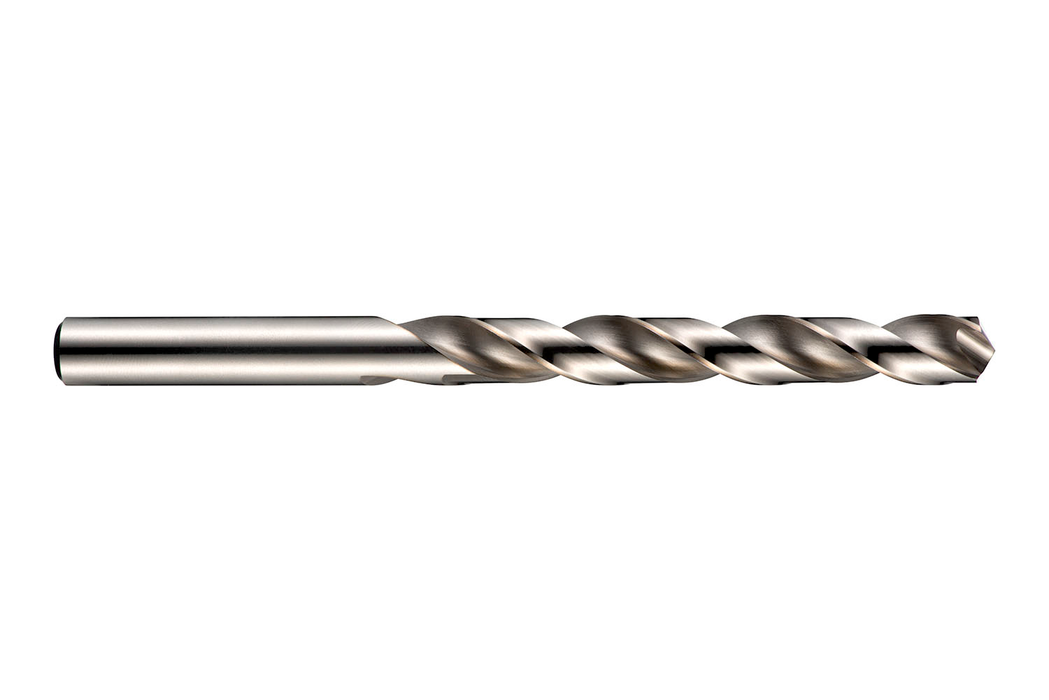

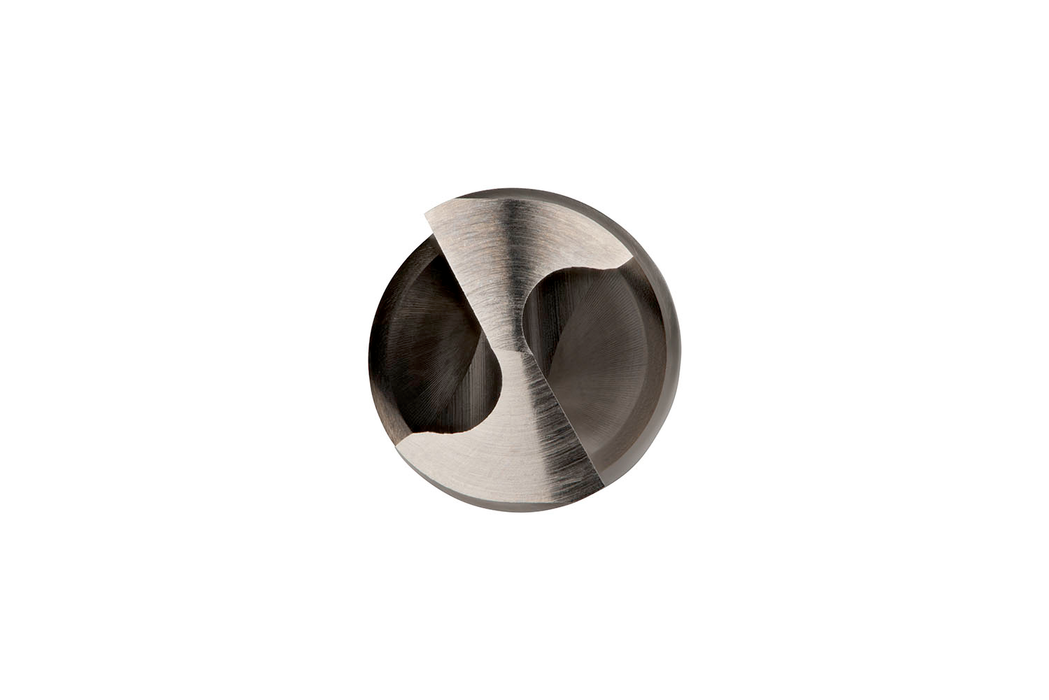

Jobber length drill with straight shank, diameter 5.7mm with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 130° thinned conical point with corrected cutting lips, cobalt based HSS-E with bright finish for 4xD drilling without pecking in stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$15.39 - $15.39
$15.39
$15.39 - $15.39
$15.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.2244

Cutting Diameter - mm (DC): 5.7

Drill Point Angle - deg: 130

Flute Length: 2.2441

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.6614

Connetion Diameter: 0.2244

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 47022444

EAN: 7320760691151

MFG Part Number: 7022444
