DSDNN 4040 S 25
SKU DOR7028438
Primary Use:
Possible Use:

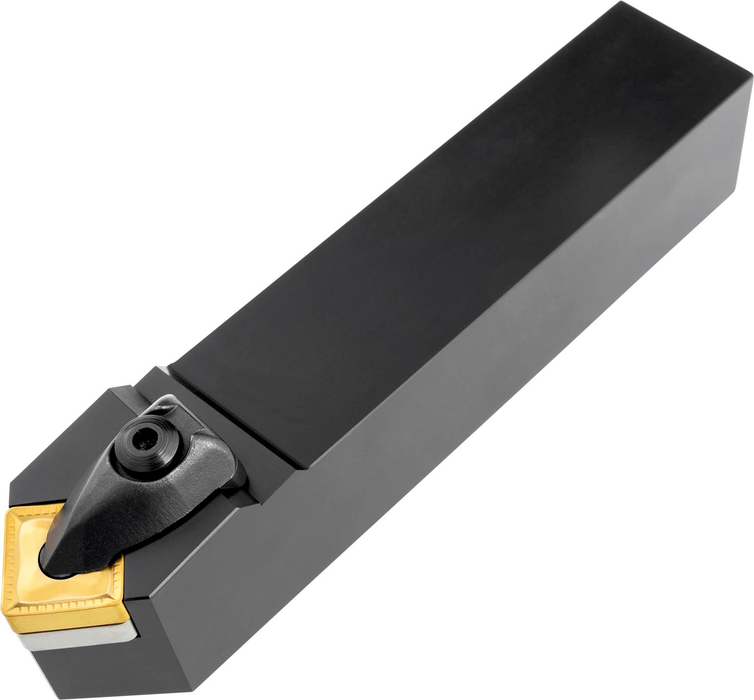

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 25.4mm, 7.94mm thick (ISO designation SN.. 2507.. ), neutral hand 45° side cutting with straight shank, 40mm tool height x 40mm width x 250mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$296.00
-
Original price
$296.00
Original price
$296.00
$296.00
-
$296.00
Current price
$296.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

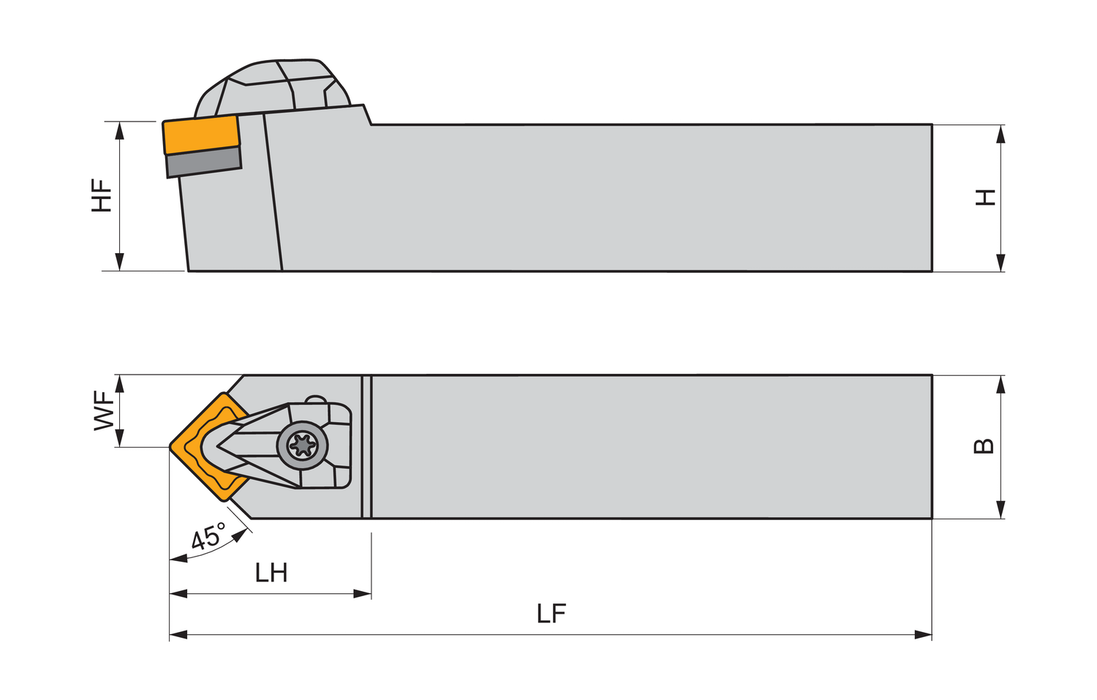

Height: 1.575
Tool Direction: Neutral
Insert Designation: ["SN.. 2507.."]
Functional Length: 9.843
EDP: 7028438
EAN: 3603603105430
MFG Part Number: 7028438
