DSSNL 3225 P 15

DSSNL 3225 P 15

SKU DOR7028446
by Dormer Pramet
Primary Use: Possible Use:

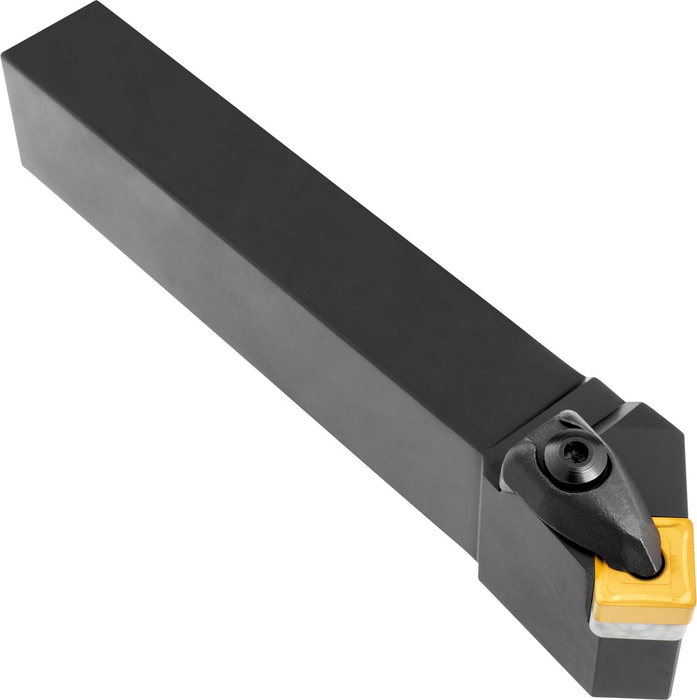

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 15.875mm, 6.35mm thick (ISO designation SN.. 1506.. ), left hand 45° side cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$182.00 - $182.00
$182.00
$182.00 - $182.00
$182.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

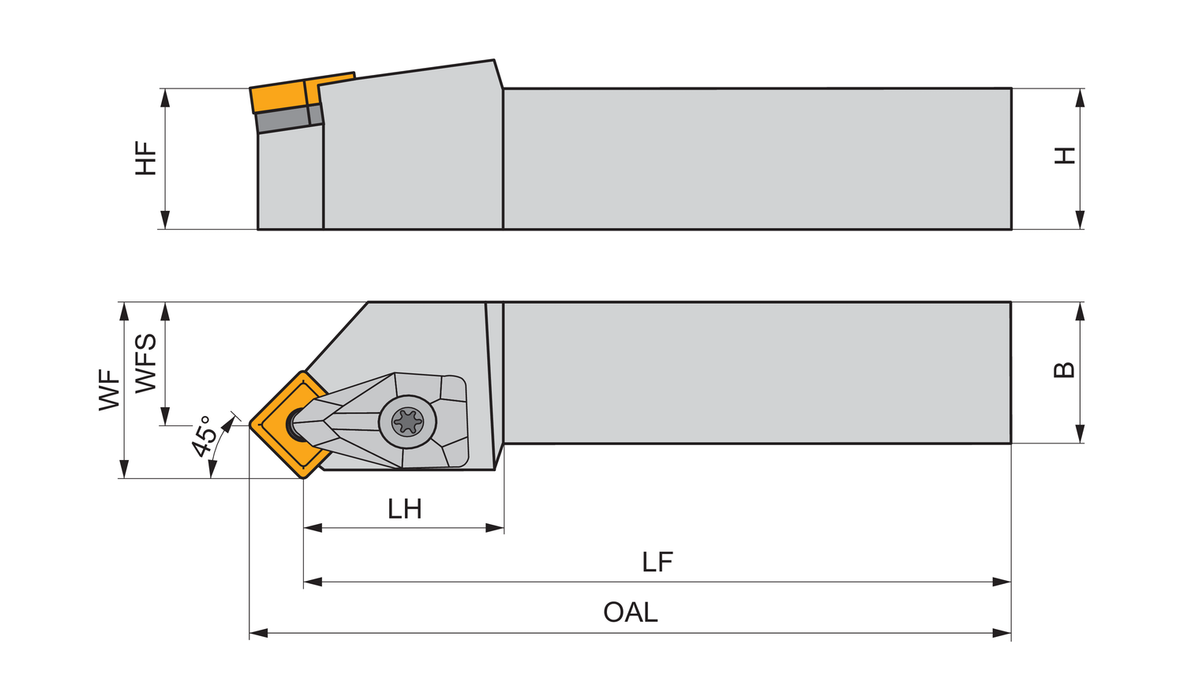

Overall Length (OAL): 7.094

Height: 1.26

Tool Direction: Left

Insert Designation: ["SN.. 1506.."]

Functional Length: 6.693

EDP: 7028446

EAN: 3603603105515

MFG Part Number: 7028446
