DVJNL 3225 P 16
SKU DOR7028465
Primary Use:
Possible Use:

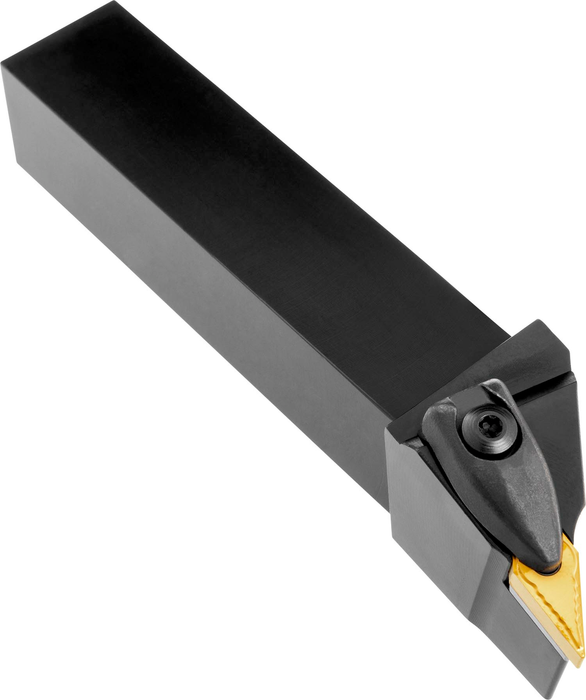

Double clamp turning tool for holding a 35° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VN.. 1604.. ), left hand 93° side cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$213.00
-
Original price
$213.00
Original price
$213.00
$213.00
-
$213.00
Current price
$213.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

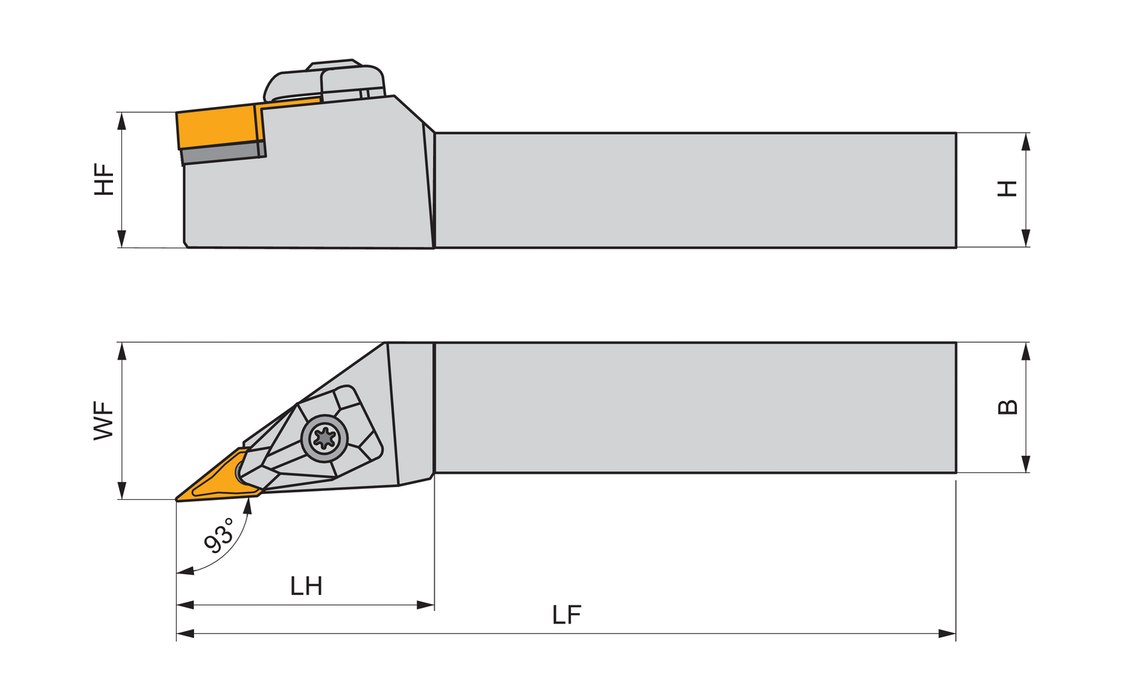

Height: 1.26
Tool Direction: Left
Insert Designation: ["VN.. 1604.."]
Functional Length: 6.693
EDP: 7028465
EAN: 3603603105706
MFG Part Number: 7028465
