A25T-DDUNR 11
SKU DOR7028480
by Pramet

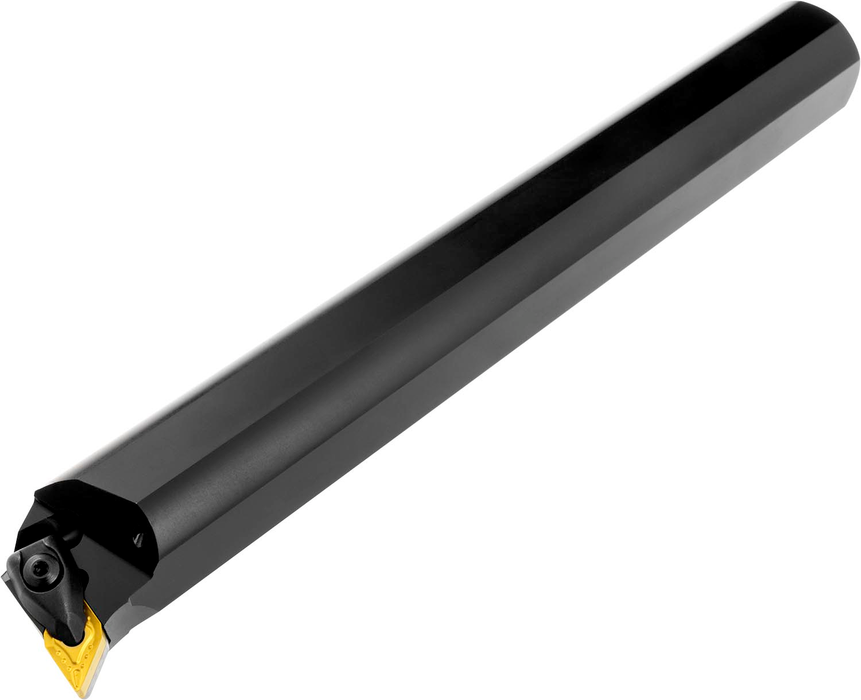

Double clamp boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation DN.. 1104.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for internal chamfering, taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder
Sold in packs of: 1
For more information about this product,
click here
Original price
$399.00
-
Original price
$399.00
Original price
$399.00
$399.00
-
$399.00
Current price
$399.00
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

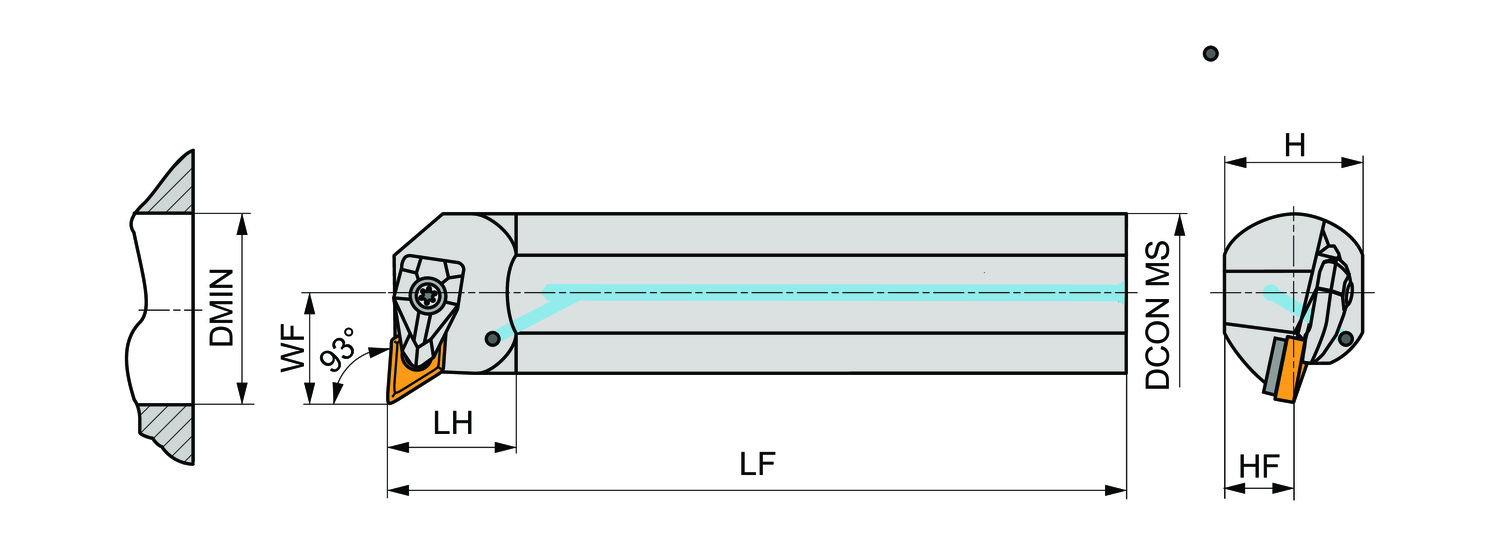

Connection Diameter: 0.984
Shank Height: 0.906
Minimum Bore: 1.26
Cutter Design: DN.. 1104..
EAN: 3603603105850
MFG Part Number: 7028480
