A25T-DTFNL 16
A25T-DTFNL 16

A25T-DTFNL 16

SKU DOR7028481
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.00 CAD - $429.00 CAD
$429.00 CAD
$429.00 CAD - $429.00 CAD
$429.00 CAD

Sold in packs of: 1

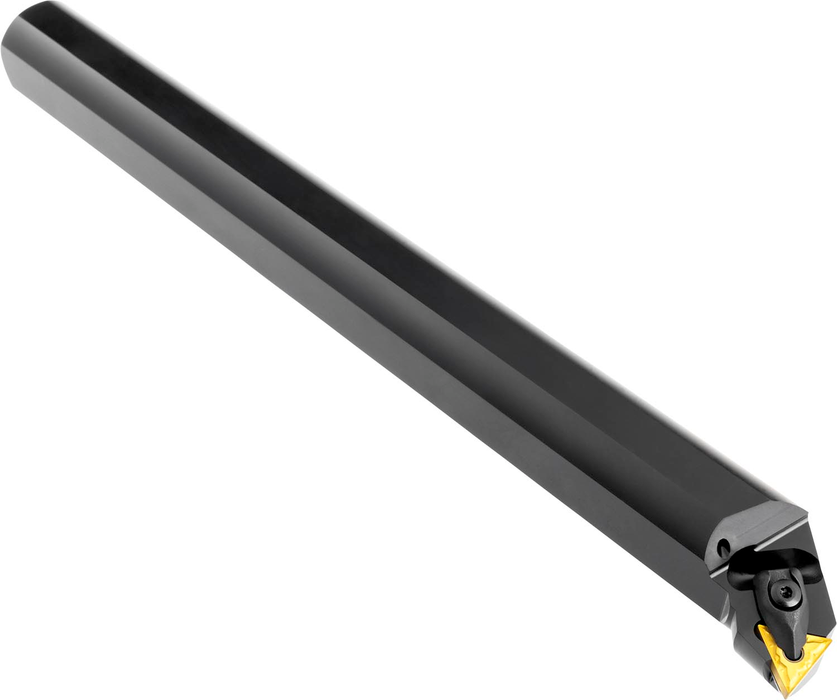

Double clamp boring bar for holding a triangular negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation TN.. 1604.. ), left hand 90° end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for internal chamfering, taper boring and longitudinal boring without shoulder

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-DTFNL 16
Product Number7028481
Product FamilyDTFN(RL) INT

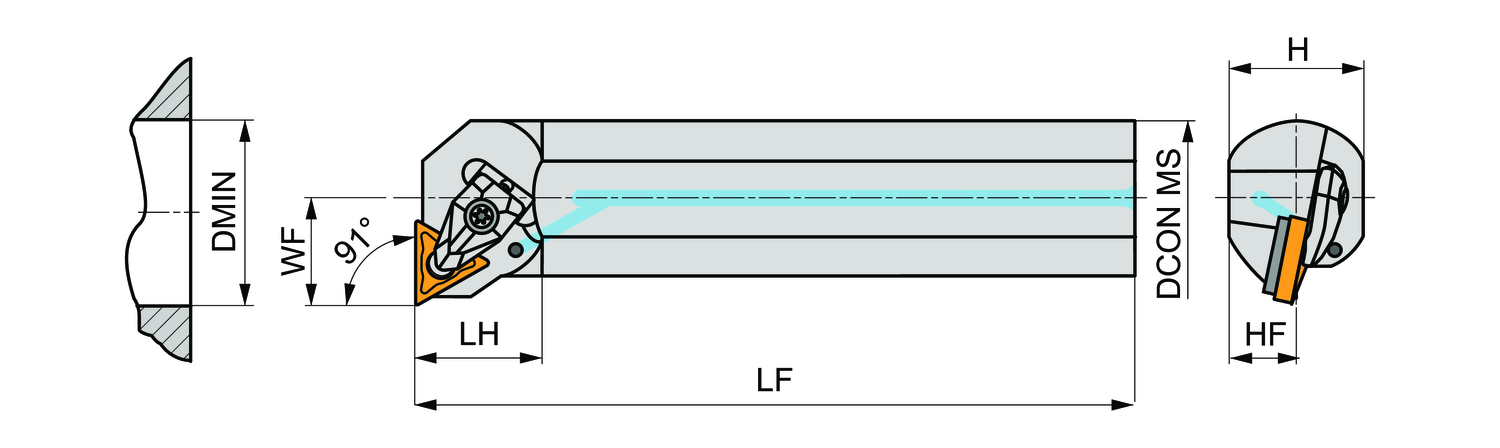

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolLeft
Through Coolant Yes
Reference Numbers
EDP Number7028481
EAN3603603105867
File Type Download
A25T-DTFNL 16 — Line Drawing PDF Download
