A25T-DWLNL 06

A25T-DWLNL 06

SKU DOR7028483
by Dormer Pramet
Primary Use: Possible Use:

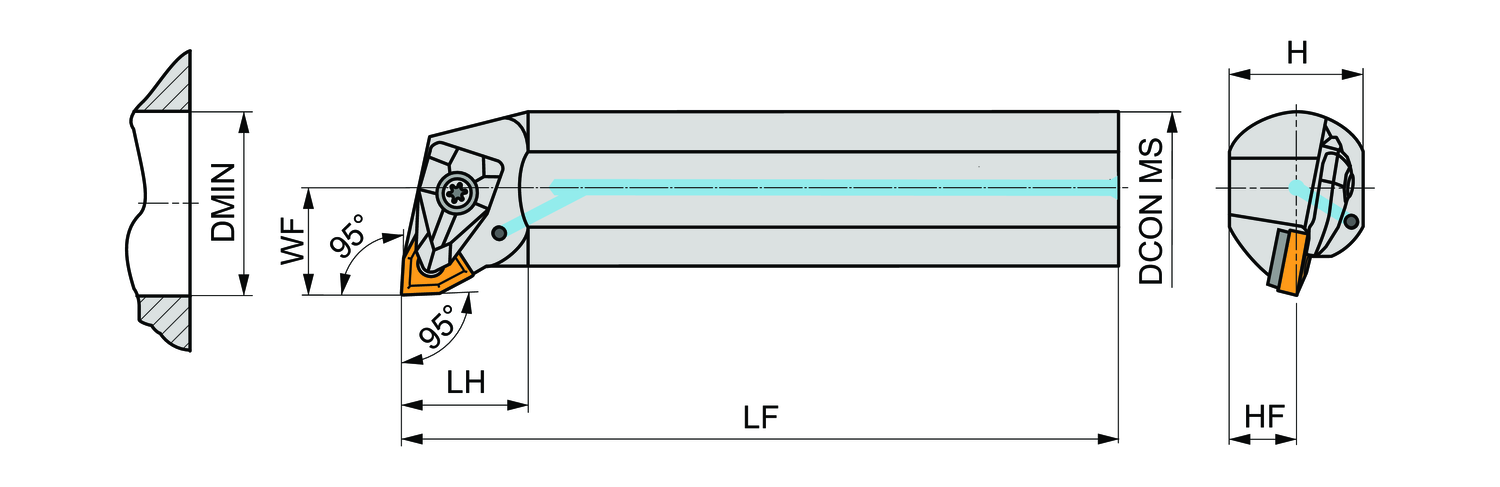

Double clamp boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation WN.. 0604.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$399.00 - $399.00
$399.00
$399.00 - $399.00
$399.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Through Coolant: 1

Connetion Diameter: 0.984

Height: 0.906

Minimum Bore: 1.26

Tool Direction: Left

Insert Designation: ["WN.. 0604.."]

Functional Length: 11.811

EDP: 7028483

EAN: 3603603105881

MFG Part Number: 7028483
