A32T-DWLNL 08

A32T-DWLNL 08

SKU DOR7028489
by Dormer Pramet
Primary Use: Possible Use:

Double clamp boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 32mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$415.00 - $415.00
$415.00
$415.00 - $415.00
$415.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

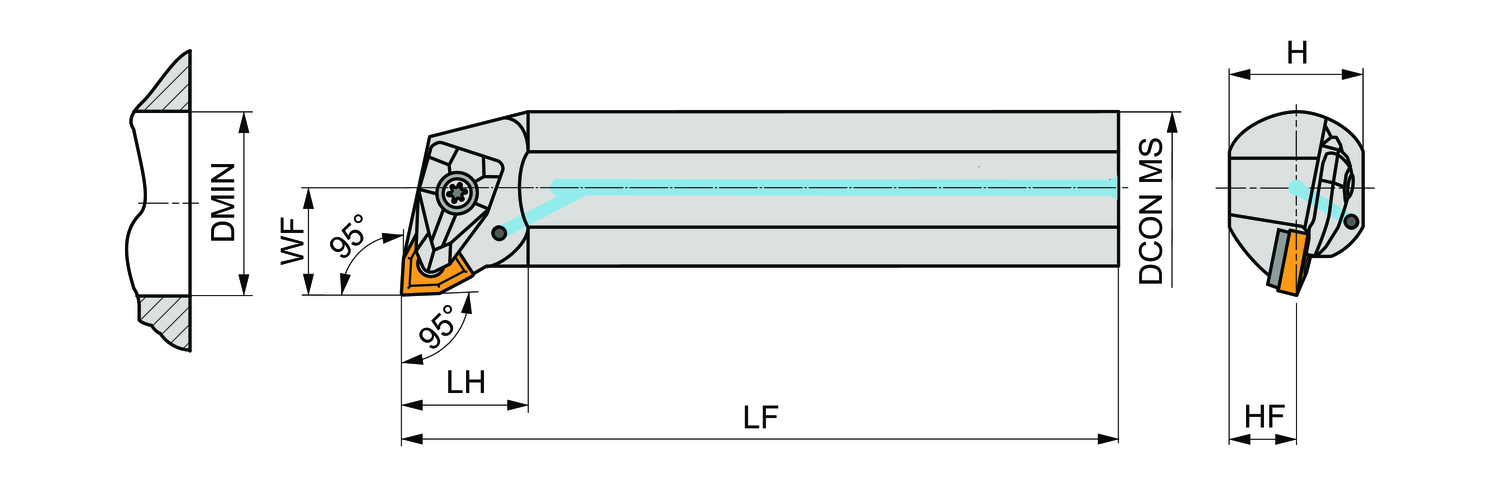

Through Coolant: 1

Connetion Diameter: 1.26

Height: 1.181

Minimum Bore: 1.575

Tool Direction: Left

Insert Designation: ["WN.. 0804.."]

Functional Length: 11.811

EDP: 7028489

EAN: 3603603105942

MFG Part Number: 7028489
