A40T-DDUNR 15
SKU DOR7028496
by Pramet

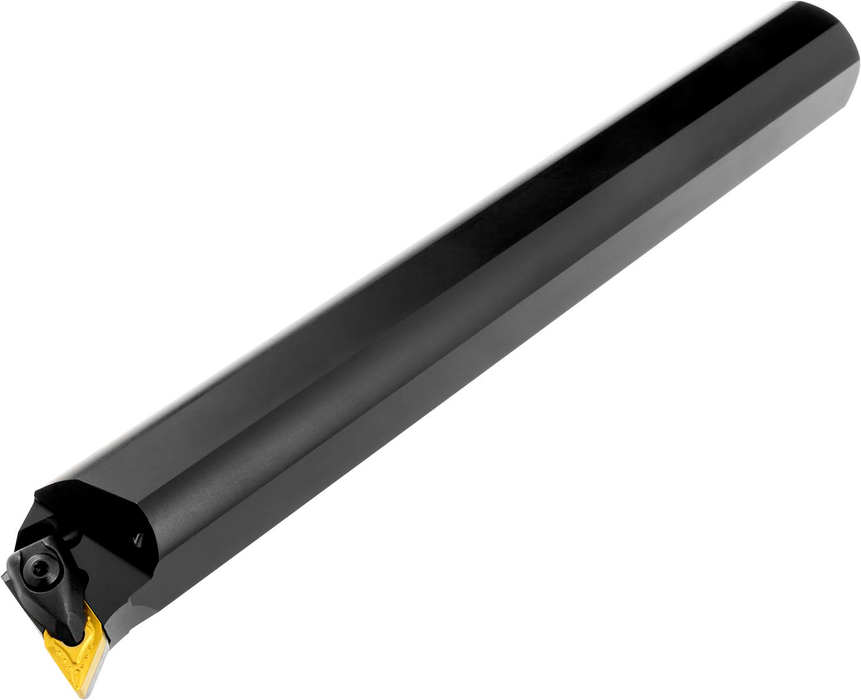

Double clamp boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 6.35mm thick (ISO designation DN.. 1506.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 40mm diameter x 300mm long for internal chamfering, taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder
Sold in packs of: 1
For more information about this product,
click here
Original price
$464.10
-
Original price
$464.10
Original price
$464.10
$464.10
-
$464.10
Current price
$464.10
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

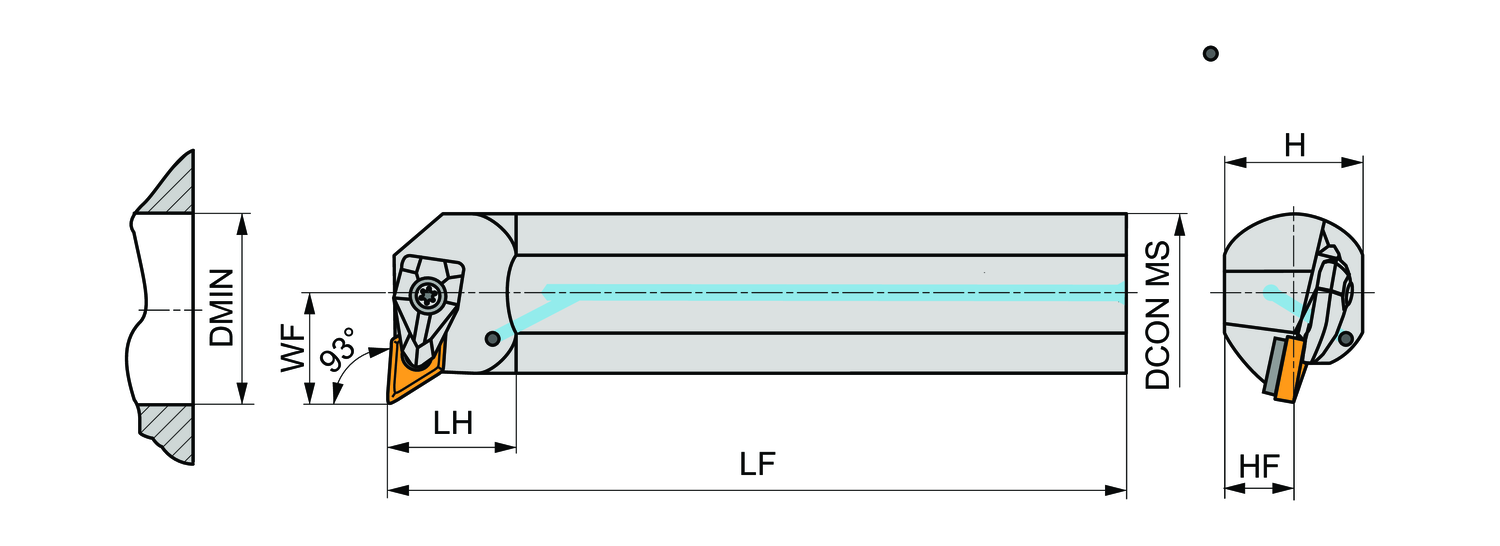

Connection Diameter: 1.575
Shank Height: 1.457
Minimum Bore: 1.969
Cutter Design: DN.. 1506..
EAN: 3603603106017
MFG Part Number: 7028496
