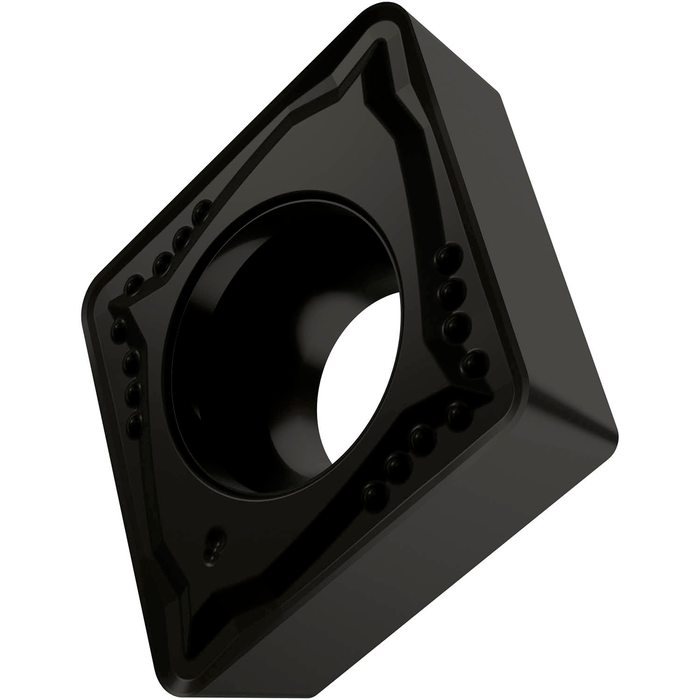

CCMT 32.52W-FM:T9325

CCMT 32.52W-FM:T9325

SKU DOR7034006
by Dormer Pramet
Primary Use: Possible Use:

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/32" nose radius, indexing accuracy according to ISO-tolerance class- M, , chip-breaker FM with WIPER edge design, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for fine to medium machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$13.19 - $13.19
$13.19
$13.19 - $13.19
$13.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

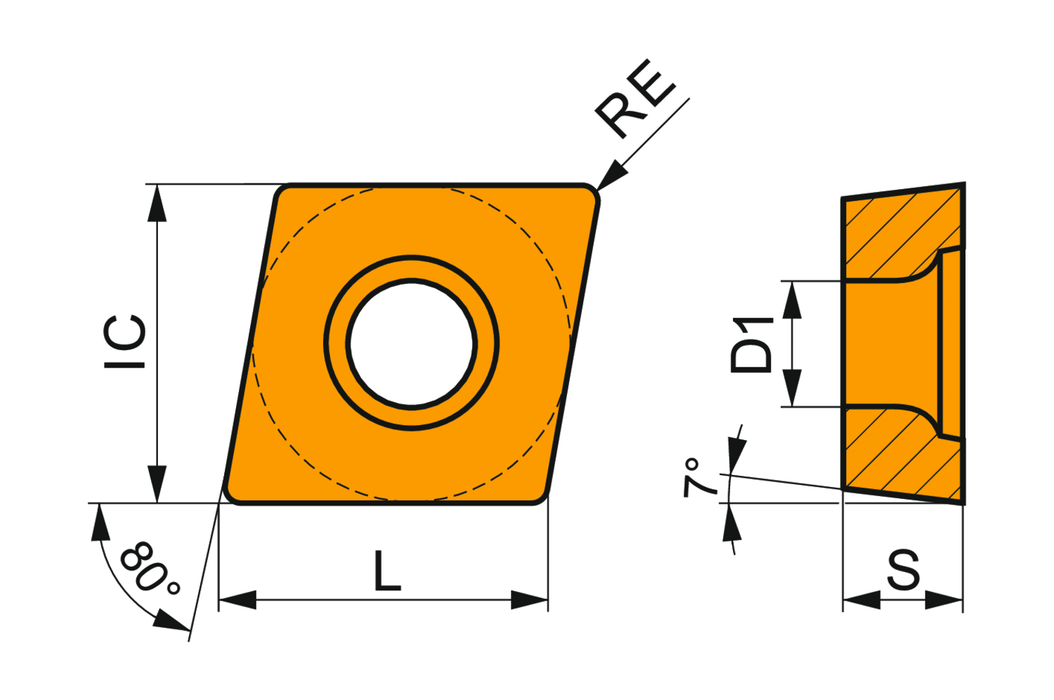

Max. Depth of Cut: 0.118

Insert Design: CCMT

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: W-FM

Grade: T9325

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7034006

EAN: 3603603108097

MFG Part Number: 7034006
