DNMG 433-M:T5315

DNMG 433-M:T5315

SKU PRA7035039
by Pramet

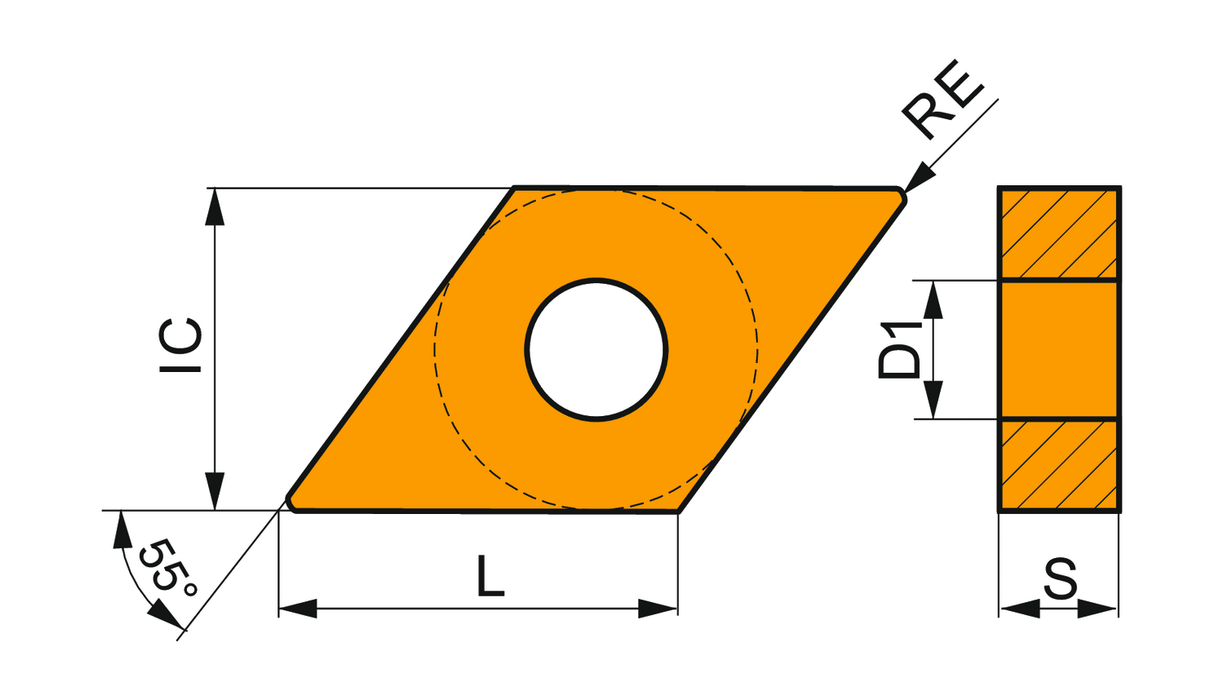

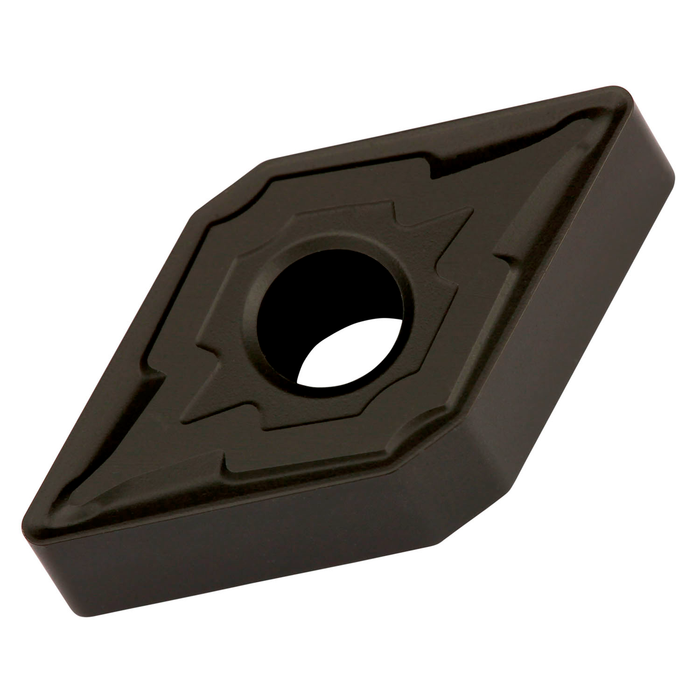

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to heavy machining of cast-irons

Sold in packs of: 10

For more information about this product, click here
$17.24 - $17.24
$17.24
$17.24 - $17.24
$17.24
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering. If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

Inscribed circle diameter - inch (IC): 0.5

Coating: T5315

Chip Breaker: M

Insert Design: DNMG

Corner Radius (IN): 0.047
