SNMM 646-HR2:T9335

SNMM 646-HR2:T9335

SKU DOR7036357
by Dormer Pramet
Primary Use: Possible Use:

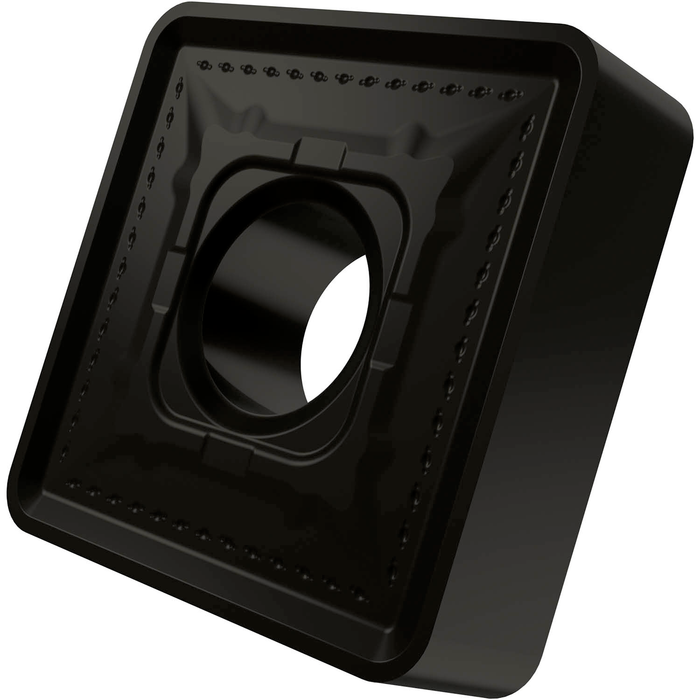

Double-sided negative turning insert, square with inscribed circle diameter of 3/4", 1/4" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker HR2, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20 - P45, for heavy to extra heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$29.29 - $29.29
$29.29
$29.29 - $29.29
$29.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.512

Insert Design: SNMM

Insert Shape Code: S - square

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.75

Chip Breaker: HR2

Grade: T9335

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 7036357

EAN: 3603603110120

MFG Part Number: 7036357
