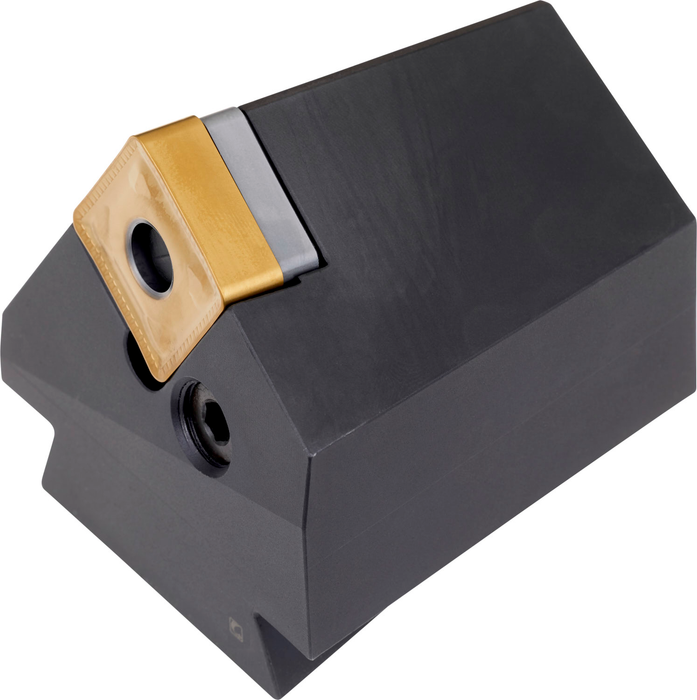

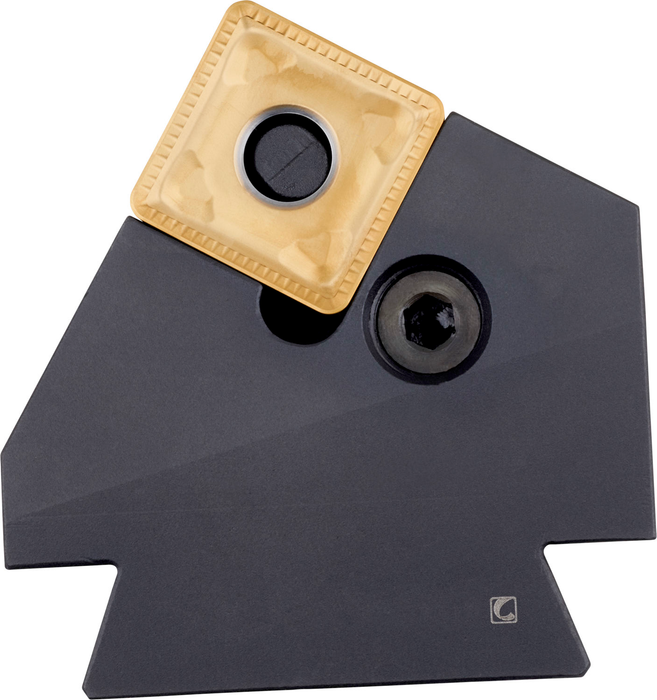

KHP-SBNL 19
SKU DOR7045620
Primary Use:

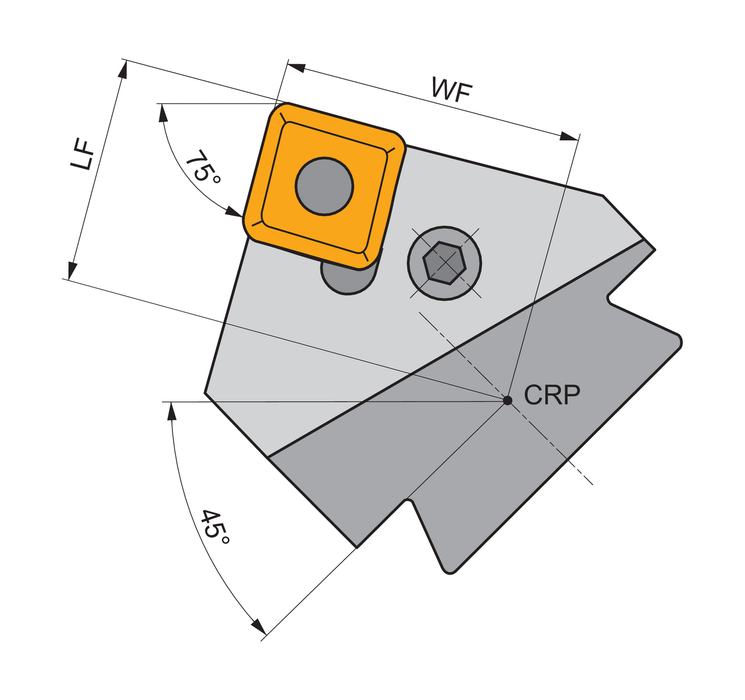

Lever lock modular turning tool cartridge for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), assemble with DHKL.. for left hand 75° side cutting with straight shank for taper turning, face turning without shoulder and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$453.00
-
Original price
$453.00
Original price
$453.00
$453.00
-
$453.00
Current price
$453.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Tool Direction: Left
Functional Length: 1.417
EDP: 7045620
EAN: 3603603115033
MFG Part Number: 7045620
