PDKT 090530ER-FM:M9325

PDKT 090530ER-FM:M9325

SKU DOR7048989
by Dormer Pramet
Primary Use: Possible Use:

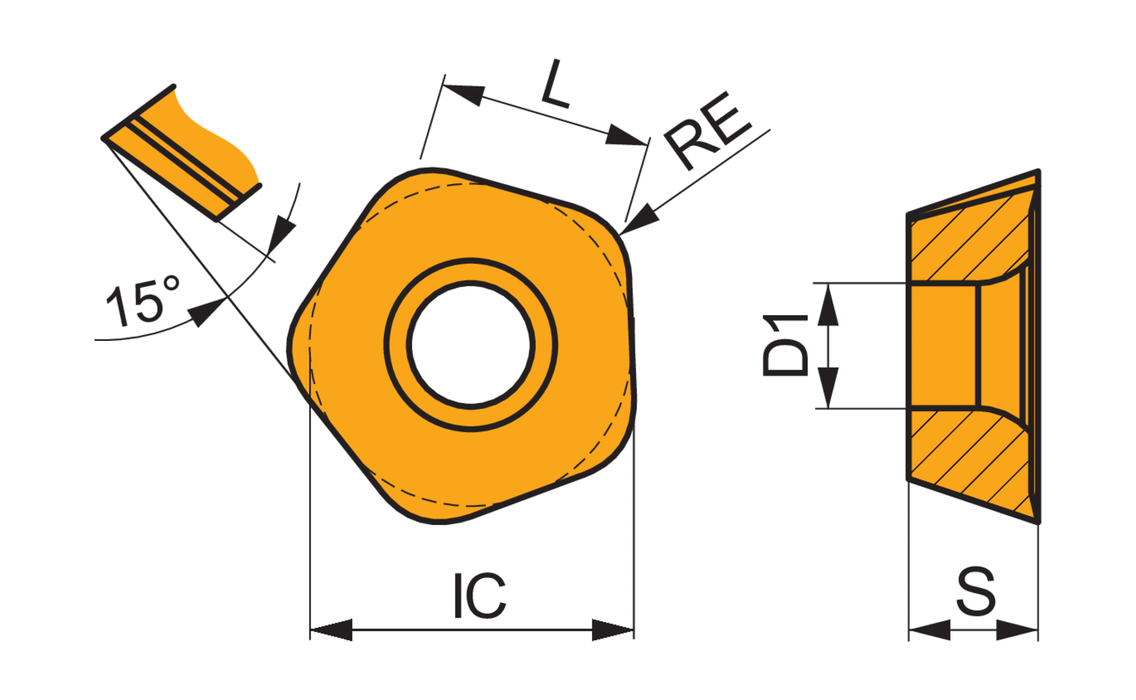

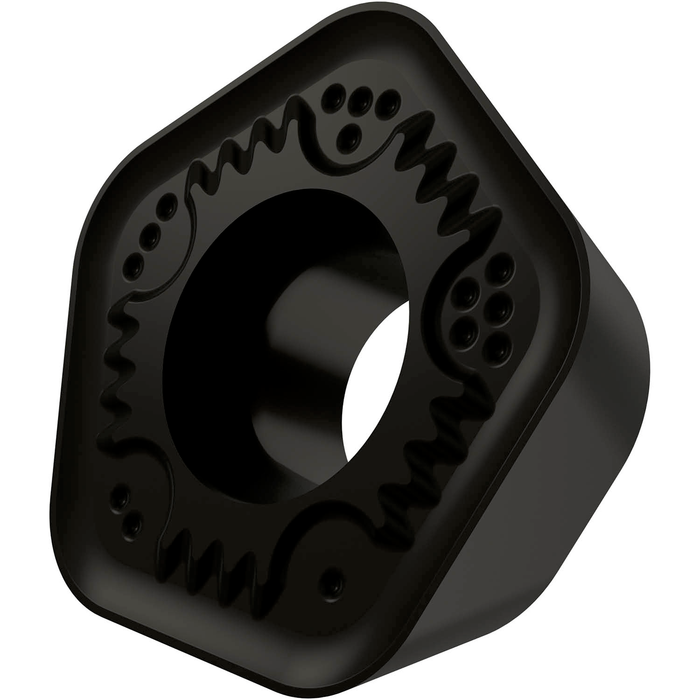

Single-sided milling insert PDKT 0905 with chip-breakers, pentagonal for a maximum depth of cut of .0787", with .1181" corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M9325 MT-CVD coated WC-Co carbide for machining of steel with high feed cutters SPD09

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$25.24 - $25.24
$25.24
$25.24 - $25.24
$25.24
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.079

Insert Design: PDKT

Insert Shape Code: P - pentagonal

Insert Thickness: 0.215

Inscribed Circle Diameter: 0.531

Chip Breaker: FM

Grade: M9325

Corner Radius - in: 0.118

Corner Radius - mm: 3

EDP: 7048989

EAN: 3603603116054

MFG Part Number: 7048989
