HNGX 0906ANSN-M:M6330

HNGX 0906ANSN-M:M6330

SKU DOR7077577
by Dormer Pramet
Primary Use: Possible Use:

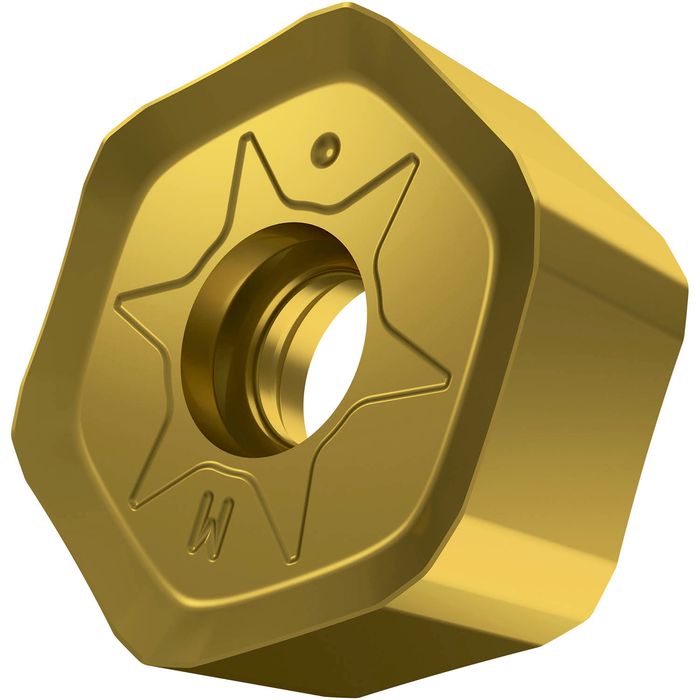

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide for machining with face mills SHN09C

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$37.63 - $37.63
$37.63
$37.63 - $37.63
$37.63
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

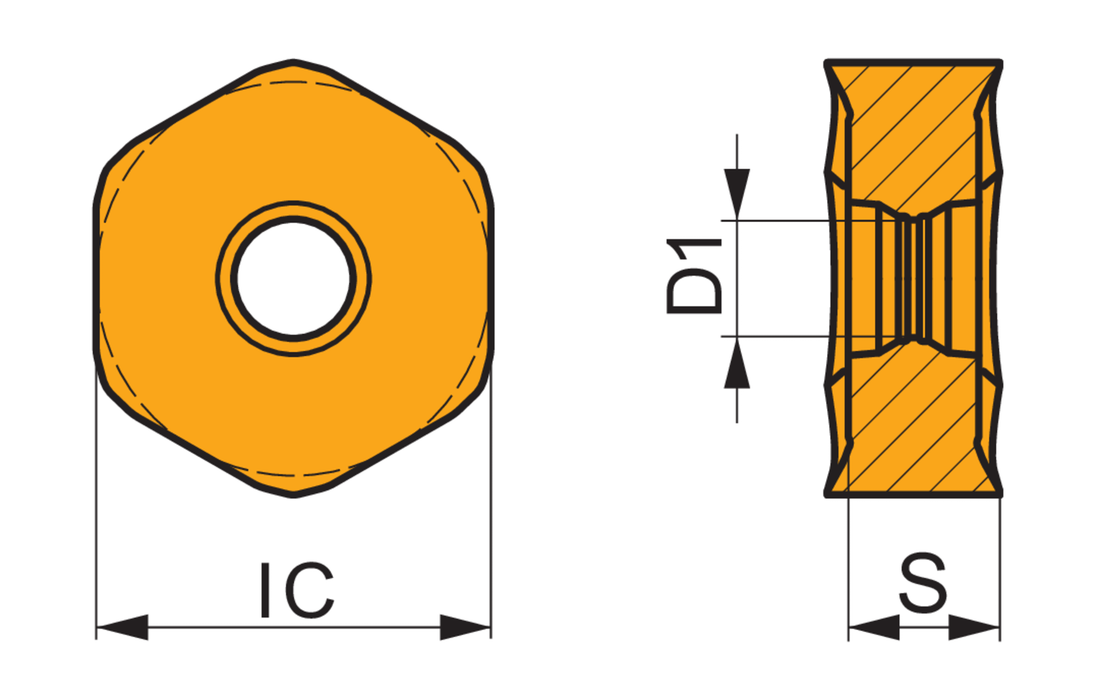

Max. Depth of Cut: 0.197

Insert Design: HNGX

Insert Shape Code: H - hexagonal

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.65

Chip Breaker: M

Grade: M6330

EDP: 7077577

EAN: 3603603129016

MFG Part Number: 7077577
