CPGX 21.51FL-JR:TT010

CPGX 21.51FL-JR:TT010

SKU DOR7080617
by Dormer Pramet
Primary Use: Possible Use:

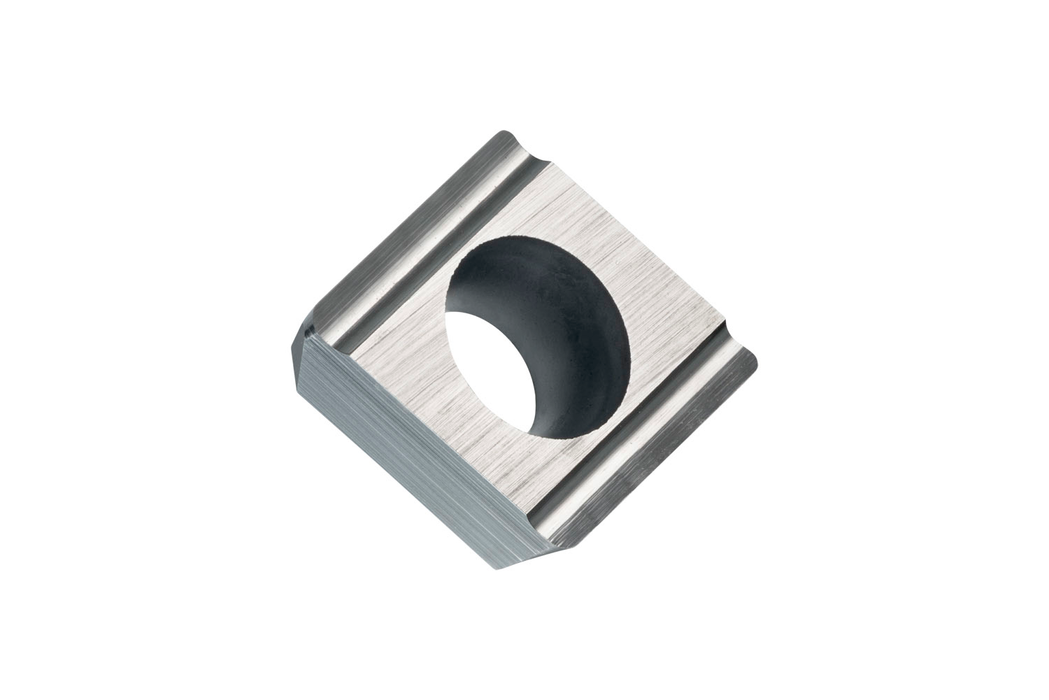

Special design positive turning insert, 80° rhomboid with 11° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker JR with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine machining of steels with a left handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$21.86 - $21.86
$21.86
$21.86 - $21.86
$21.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

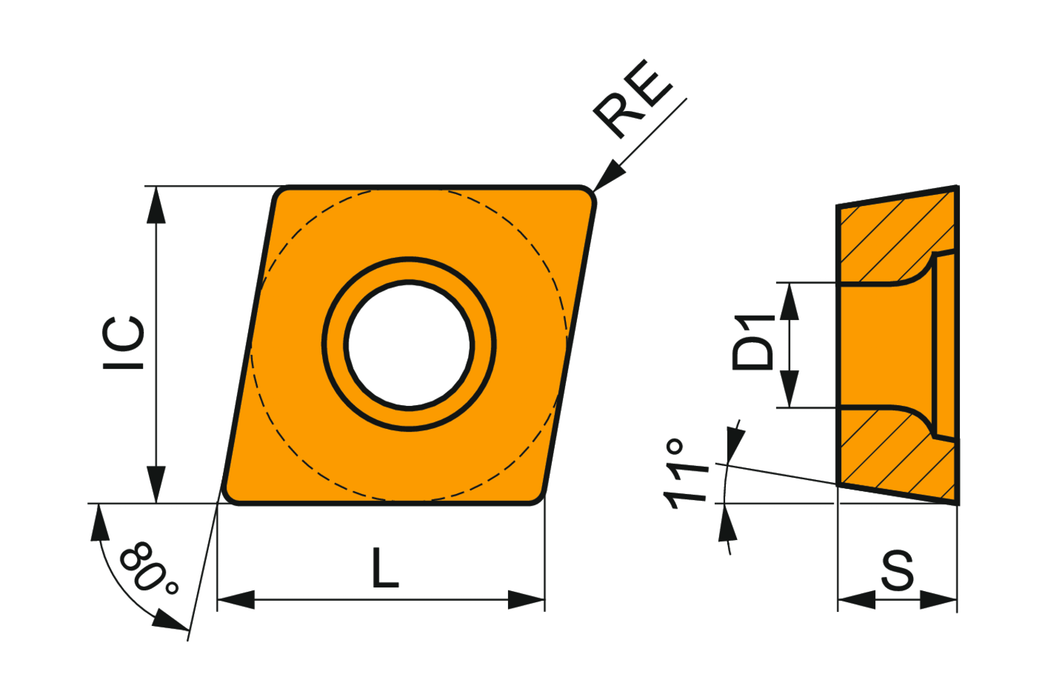

Max. Depth of Cut: 0.165

Insert Design: CPGX

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.094

Inscribed Circle Diameter: 0.25

Chip Breaker: JR

Grade: TT010

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7080617

EAN: 3603603129122

MFG Part Number: 7080617
