CPGX 2.521FR-JR:TT010

CPGX 2.521FR-JR:TT010

SKU DOR7080622
by Dormer Pramet
Primary Use: Possible Use:

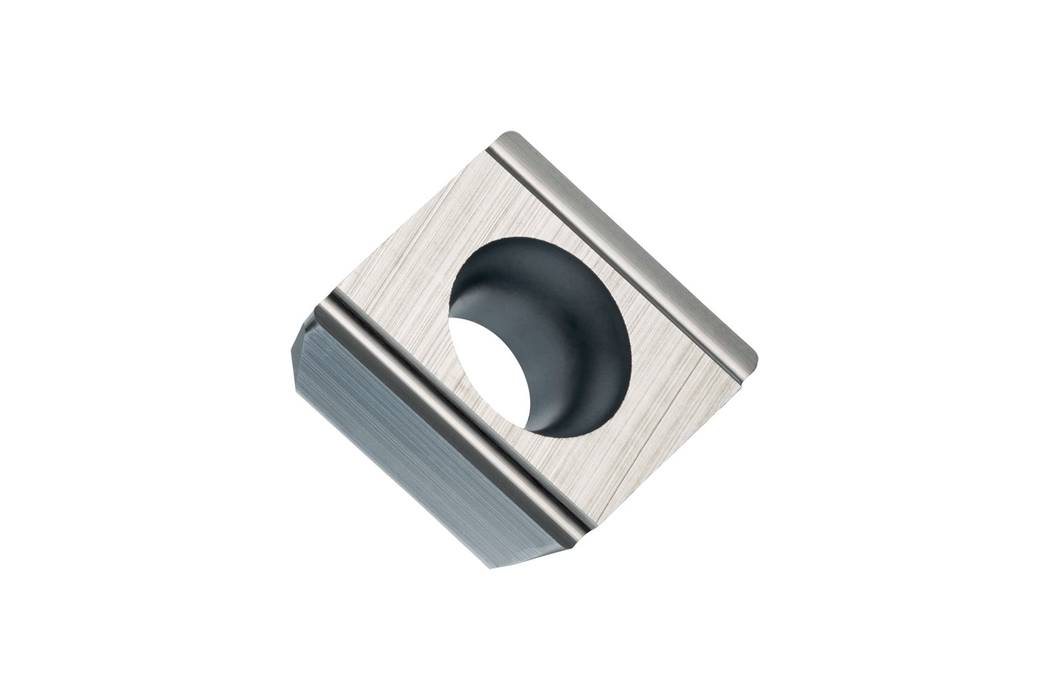

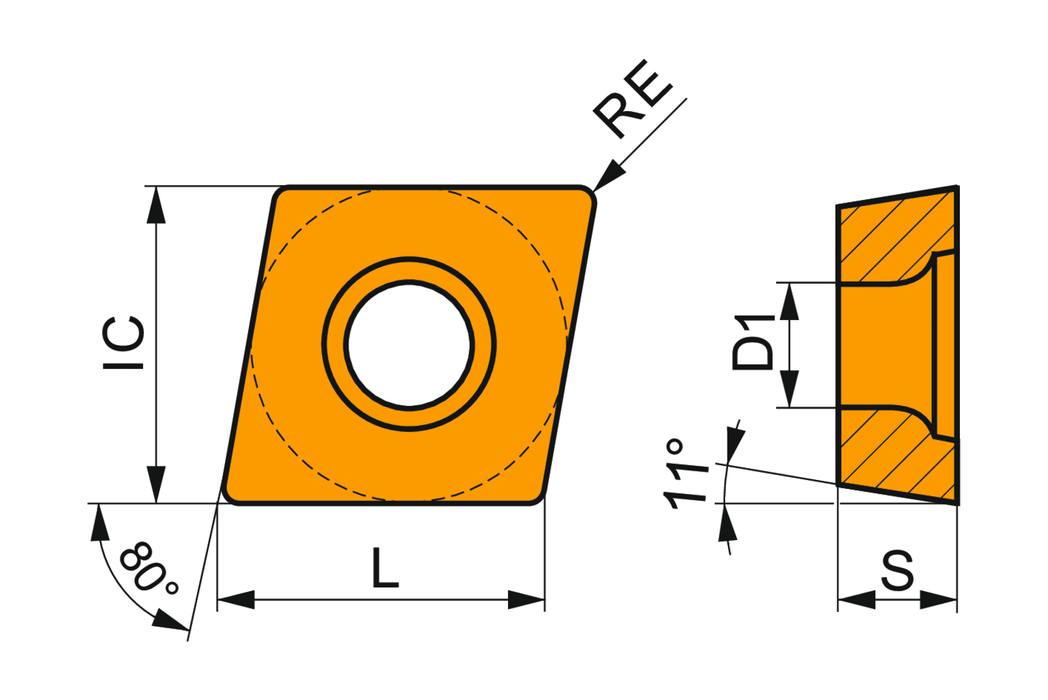

Special design positive turning insert, 80° rhomboid with 11° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker JR with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine machining of steels with a right handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.64 - $22.64
$22.64
$22.64 - $22.64
$22.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.22

Insert Design: CPGX

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.313

Chip Breaker: JR

Grade: TT010

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7080622

EAN: 3603603129177

MFG Part Number: 7080622
