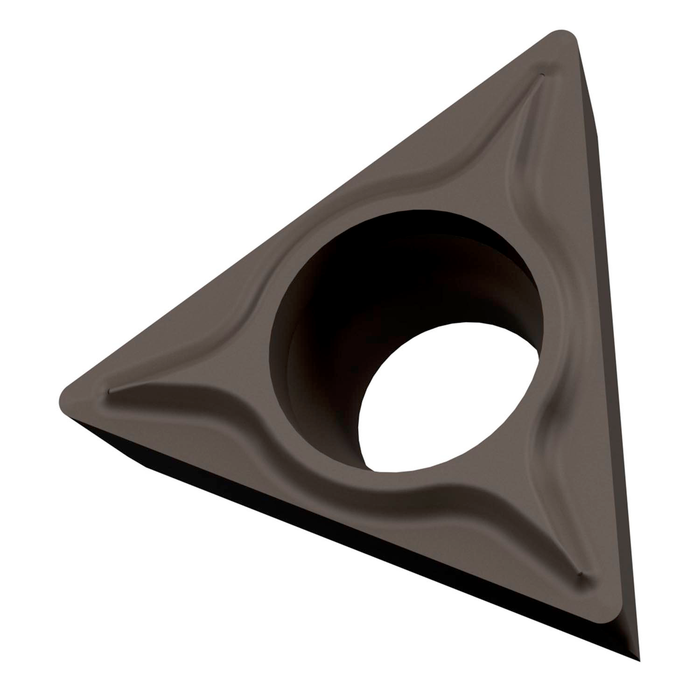

TCGT 1.21.20.5-FF2:TT010

TCGT 1.21.20.5-FF2:TT010

SKU DOR7080629
by Dormer Pramet
Primary Use:

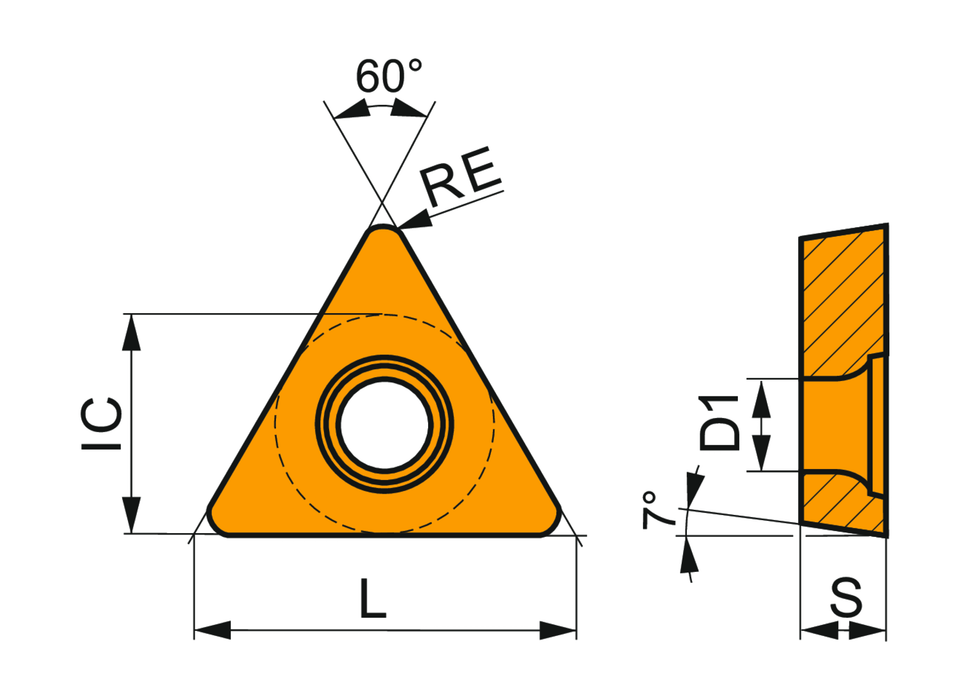

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 5/32", 5/64" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker FF2, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.83 - $12.83
$12.83
$12.83 - $12.83
$12.83
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.079

Insert Design: TCGT

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.078

Inscribed Circle Diameter: 0.156

Chip Breaker: FF2

Grade: TT010

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 7080629

EAN: 3603603129245

MFG Part Number: 7080629
