TCGT 1.81.50.5-FF2:TT010

TCGT 1.81.50.5-FF2:TT010

SKU DOR7080630
by Dormer Pramet
Primary Use:

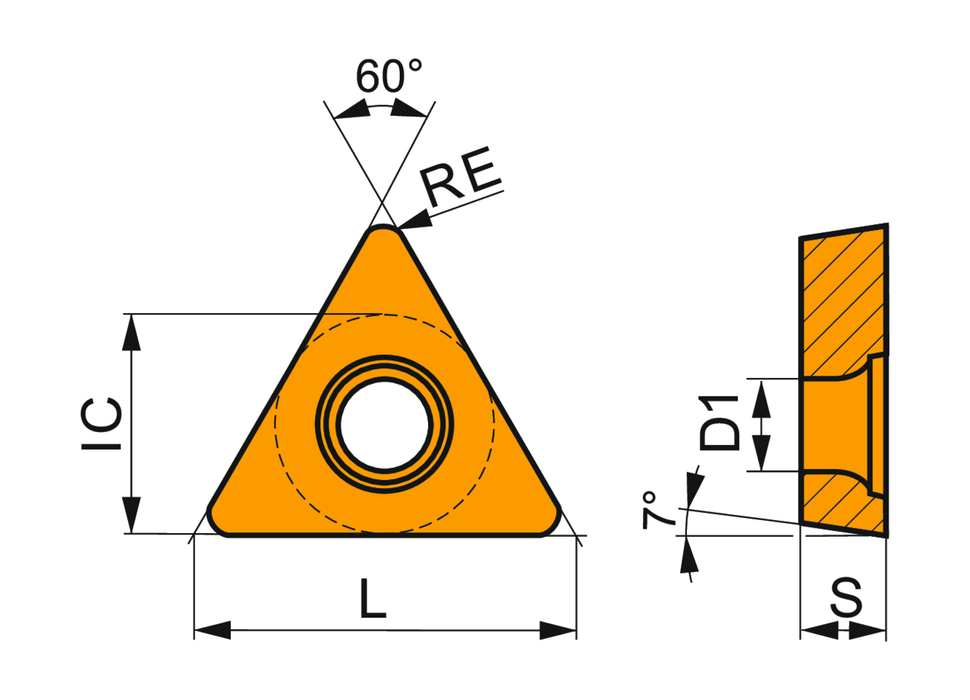

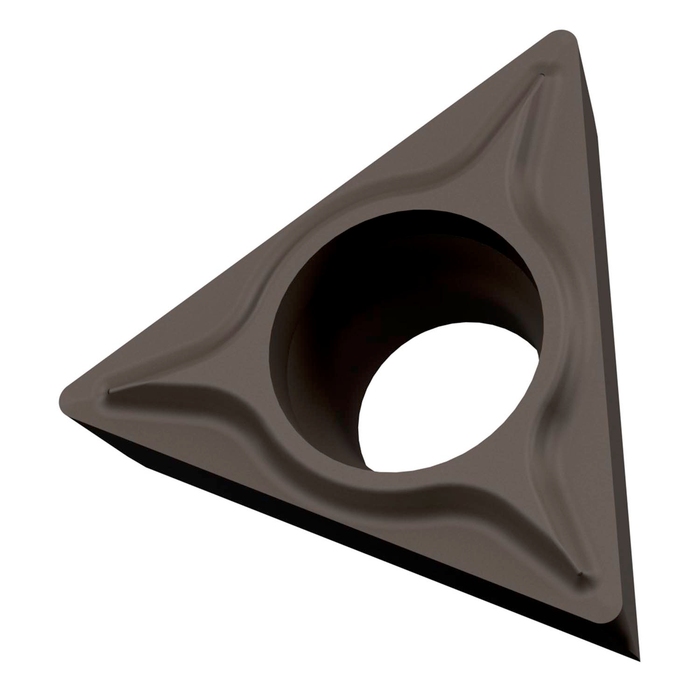

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 7/32, 3/32" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker FF2, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$13.47 - $13.47
$13.47
$13.47 - $13.47
$13.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.059

Insert Design: TCGT

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.094

Inscribed Circle Diameter: 0.219

Chip Breaker: FF2

Grade: TT010

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 7080630

EAN: 3603603129252

MFG Part Number: 7080630
