WCGX 1.210.5FL-JZ:TT010

WCGX 1.210.5FL-JZ:TT010

SKU DOR7080640
by Dormer Pramet
Primary Use: Possible Use:

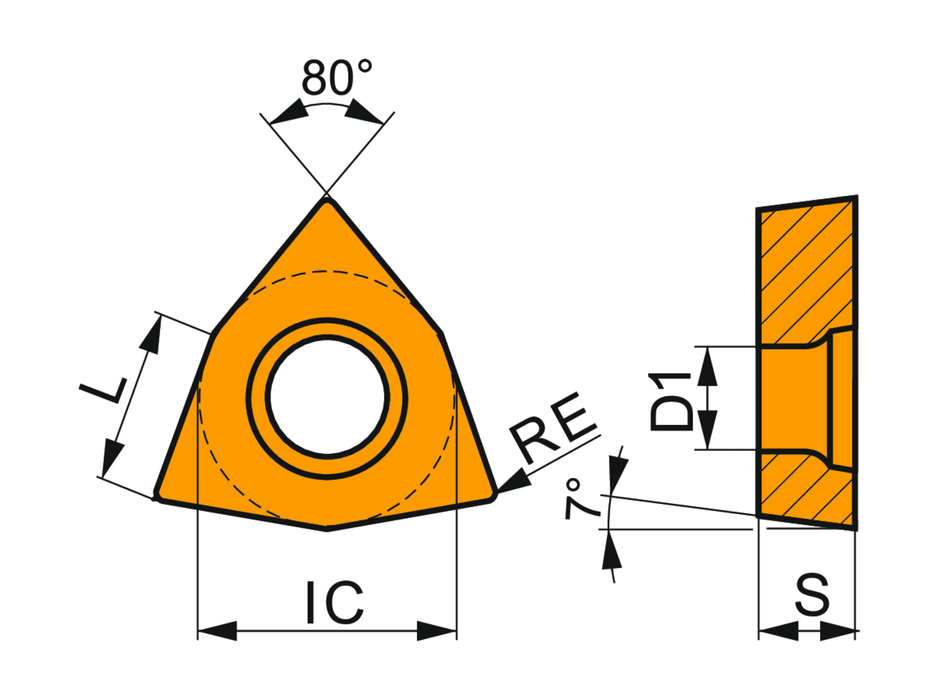

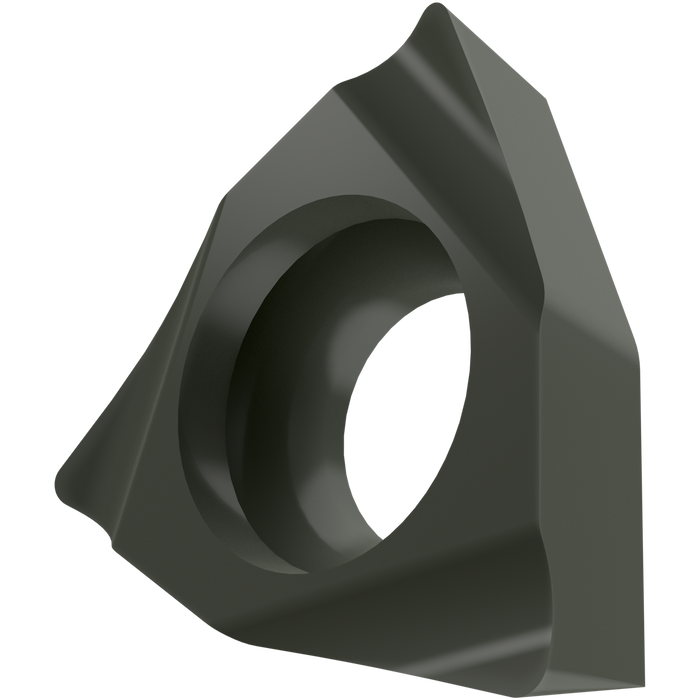

Special design positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 5/32", 1/16" thick, 1/128" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker JZ with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine machining of steels with a left handed turning tool

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$21.97 - $21.97
$21.97
$21.97 - $21.97
$21.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.02

Insert Design: WCGX

Insert Shape Code: W - trigon

Insert Thickness: 0.063

Inscribed Circle Diameter: 0.156

Chip Breaker: JZ

Grade: TT010

Corner Radius - in: 0.008

Corner Radius - mm: 0.2

EDP: 7080640

EAN: 3603603129351

MFG Part Number: 7080640
