S8225.0

S8225.0

SKU DOR7106958
by Dormer Pramet
Primary Use:

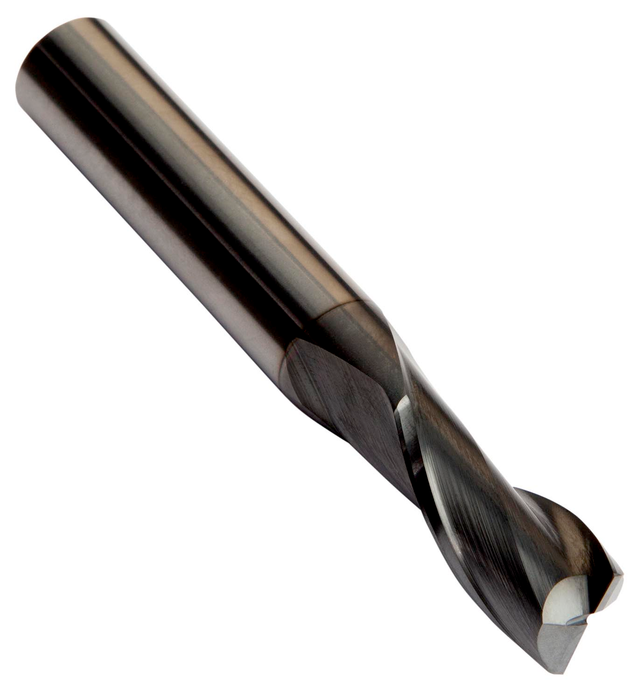

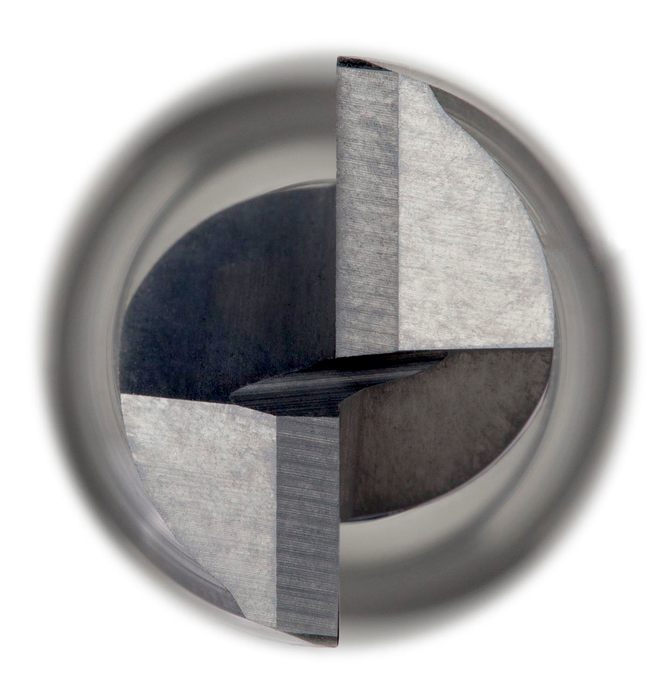

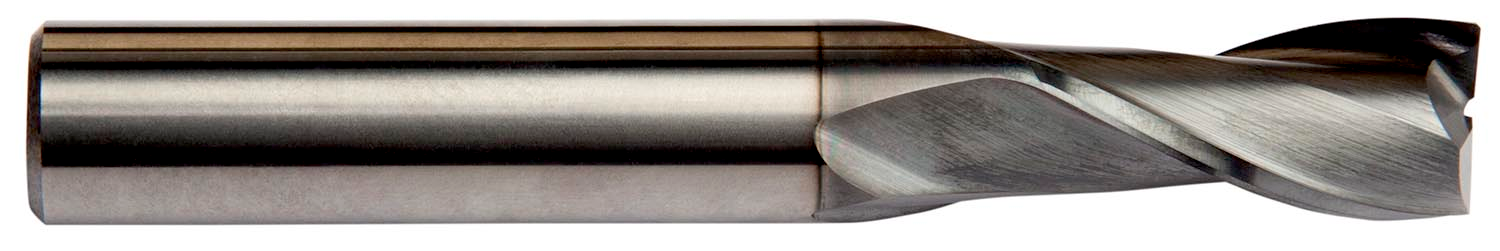

Regular length slot drill with 2 flutes, diameter 5mm with 16mm length of cut, 57mm overall length and 0.13mm 45° chamfered corner edges, according to DORMER standard with a 6mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$56.56 - $56.56
$56.56
$56.56 - $56.56
$56.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

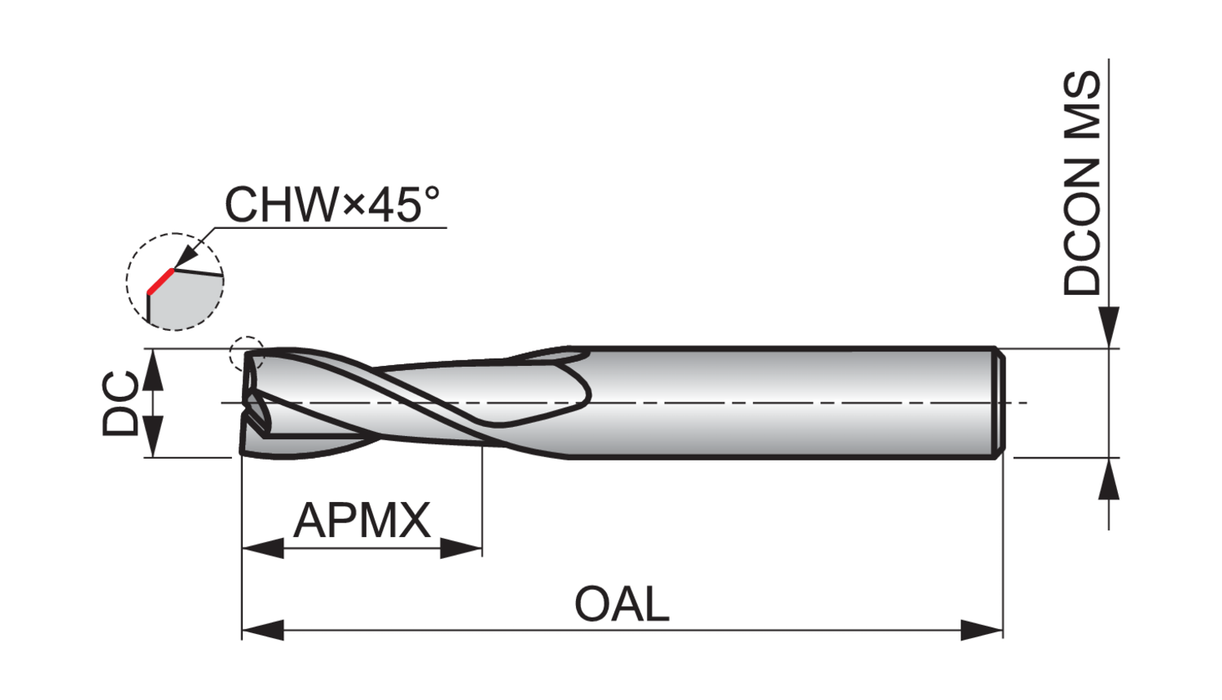

Material: HM

Cutting Diameter - in (DC): 0.1969

Cutting Diameter - mm (DC): 5.0

Overall Length (OAL): 2.2441

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.6299

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 2

EDP: 47106958

EAN: 7320760698471

MFG Part Number: 7106958
