A1471/8

A1471/8

SKU DOR7146721
by Dormer Pramet
Primary Use: Possible Use:

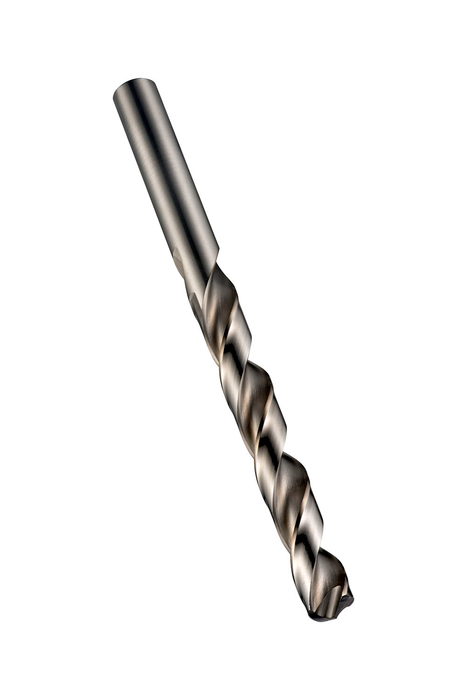

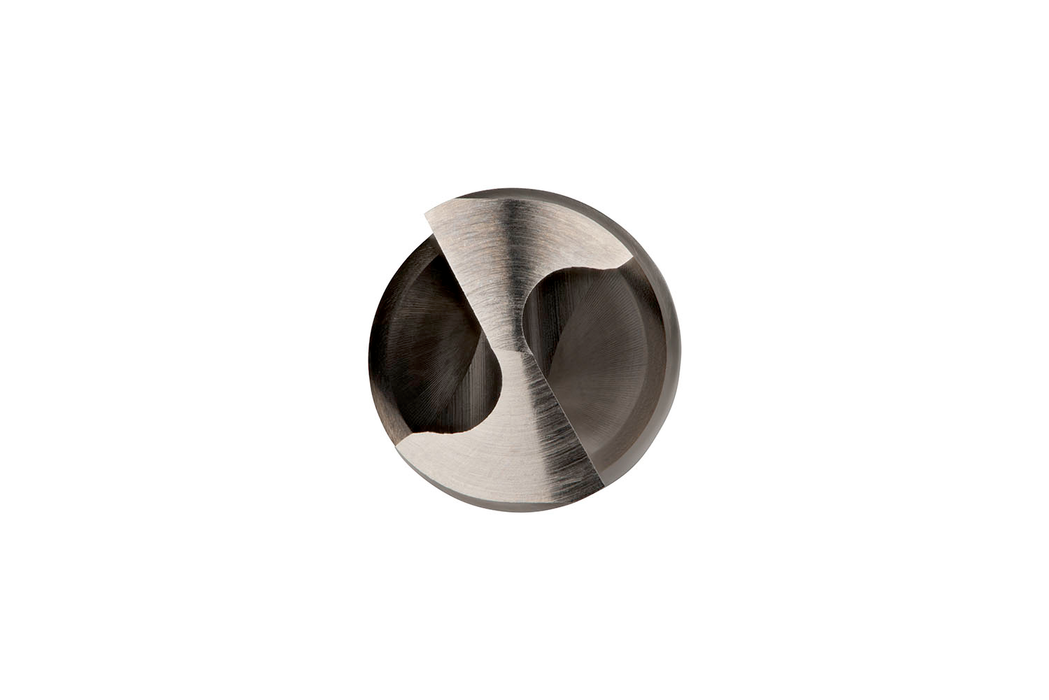

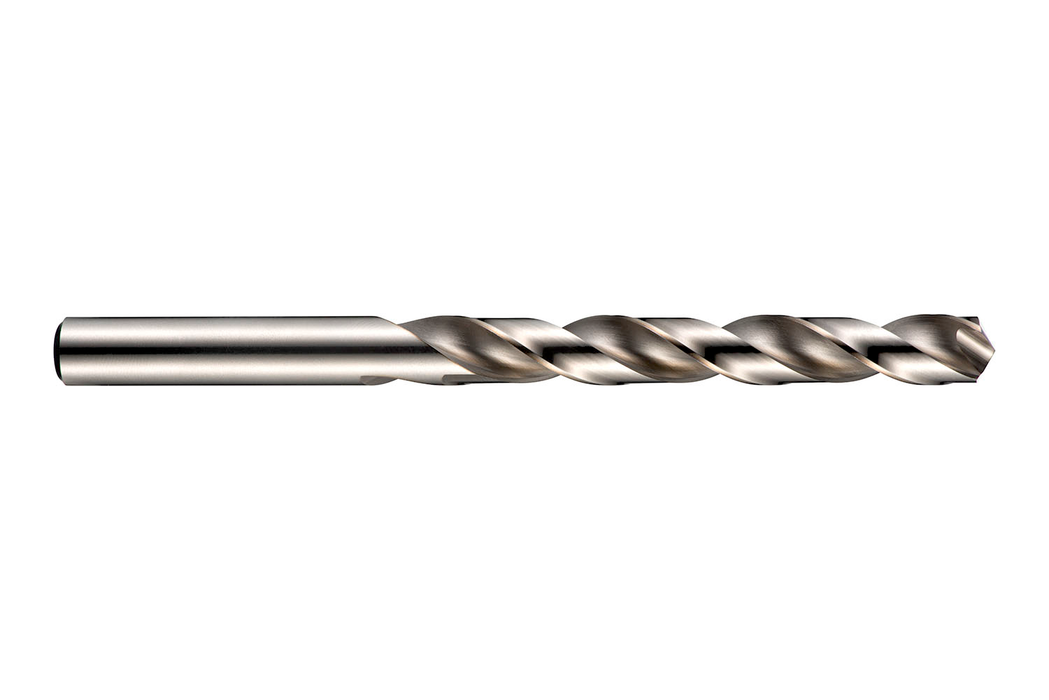

Jobber length drill with straight shank, diameter 0.1250" (1/8) with an overall length of 65mm and flute length of 36mm according to DIN 338 standard with 130° thinned conical point with corrected cutting lips, cobalt based HSS-E with bright finish for 4xD drilling without pecking in stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$7.16 - $7.16
$7.16
$7.16 - $7.16
$7.16
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.125

Cutting Diameter - mm (DC): 3.18

Drill Point Angle - deg: 130

Flute Length: 1.4173

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.5591

Connetion Diameter: 0.1252

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1/8

Grade: Bright

EDP: 47146721

EAN: 7320760702420

MFG Part Number: 7146721
