G10616.5

G10616.5

SKU DOR7147784
by Dormer Pramet
Primary Use: Possible Use:

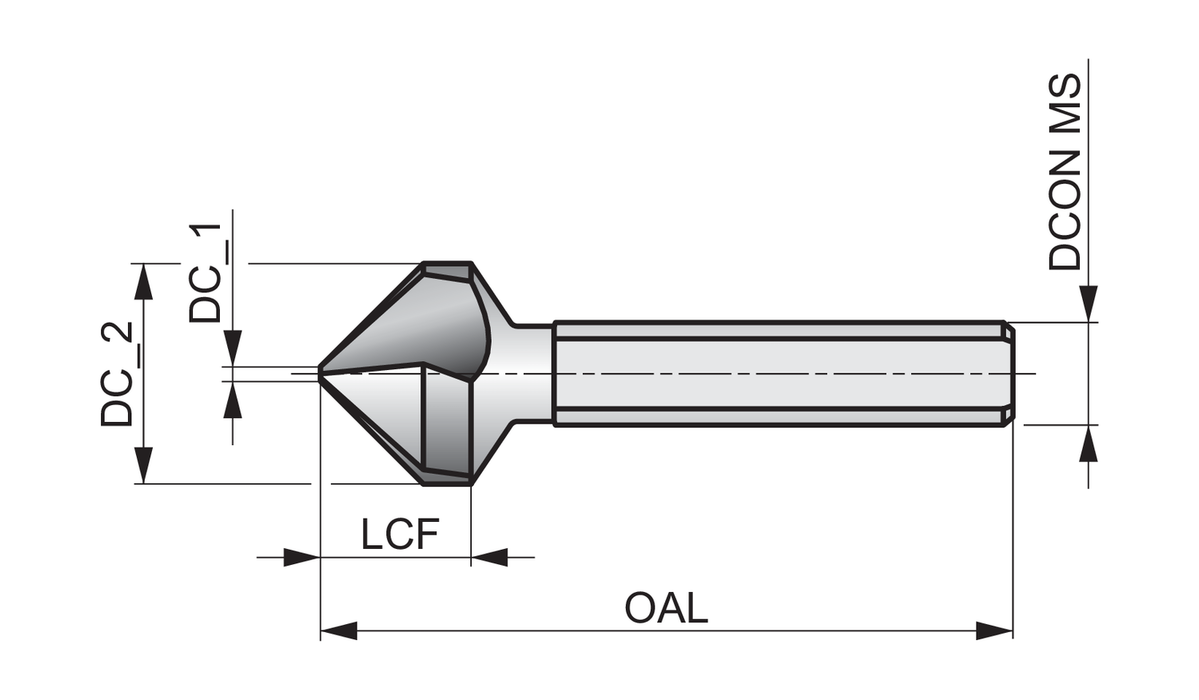

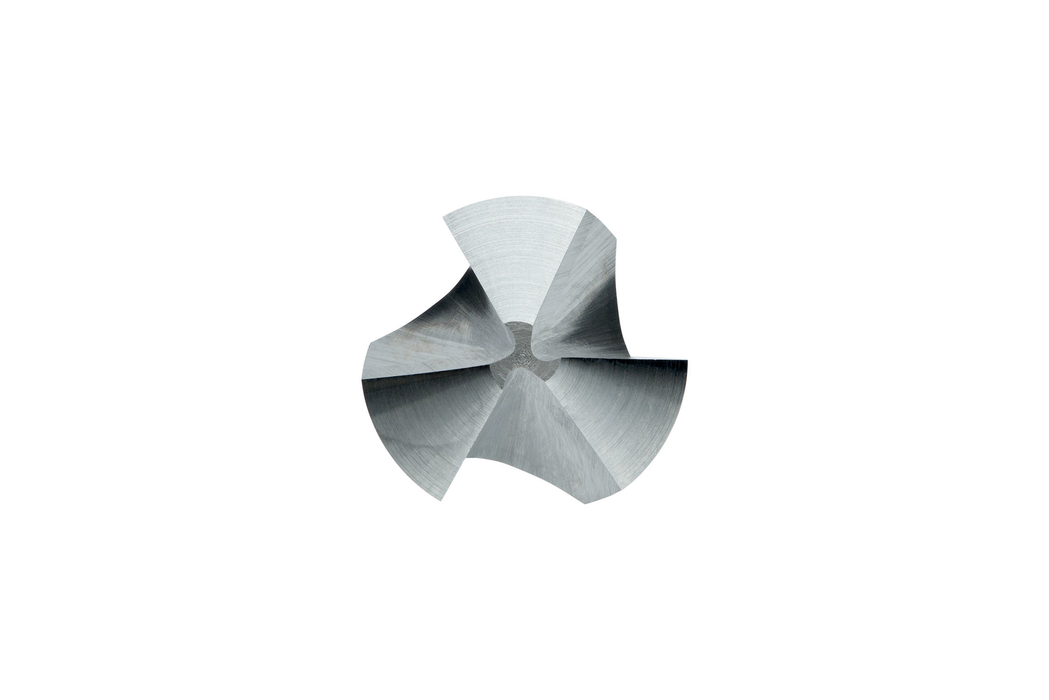

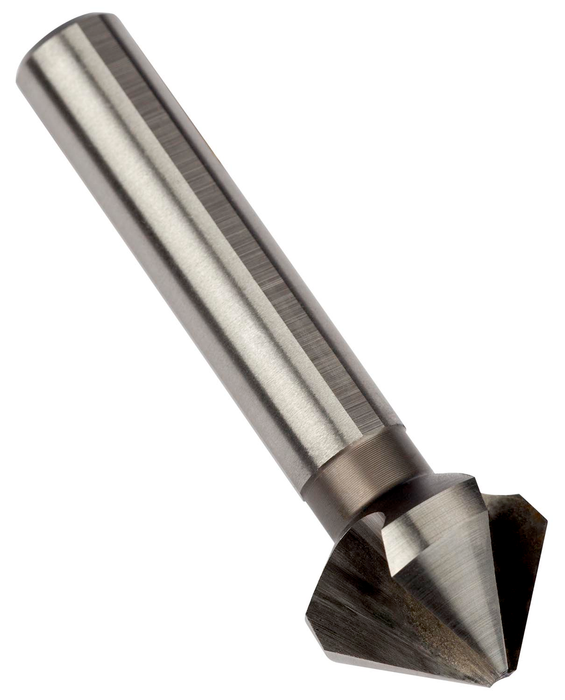

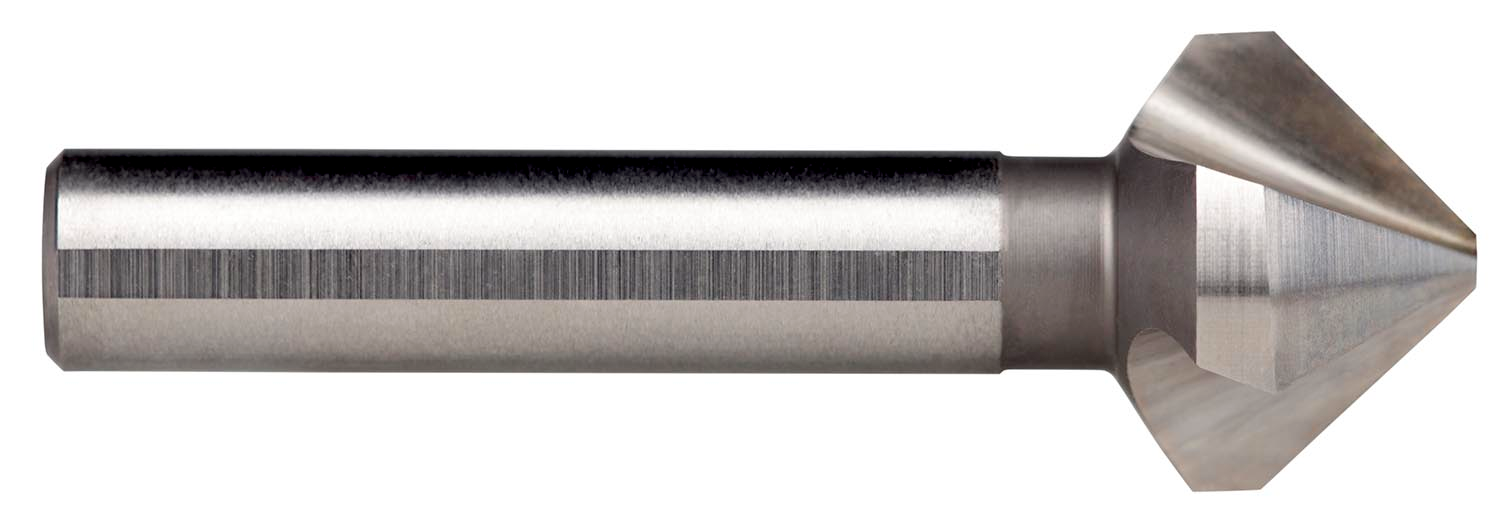

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50mm with an overall length of 60mm and a head length of 11.1mm and 10mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$67.66 - $67.66
$67.66
$67.66 - $67.66
$67.66
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 2.3622

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank with 3-Flats

Grade: Bright

EDP: 47147784

EAN: 7320760702611

MFG Part Number: 7147784
