G50640.0

G50640.0

SKU DOR7147803
by Dormer Pramet
Primary Use: Possible Use:

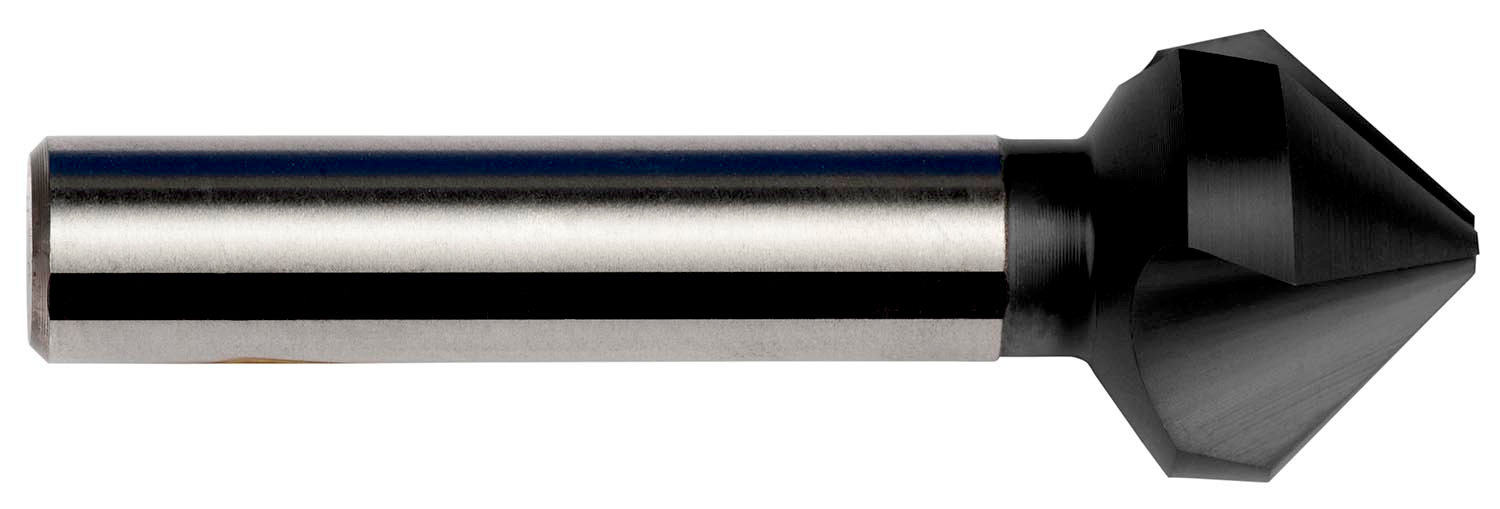

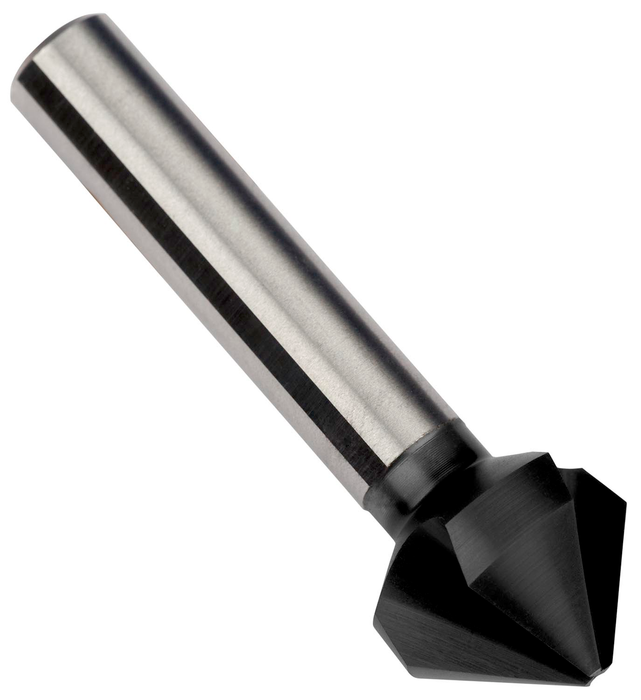

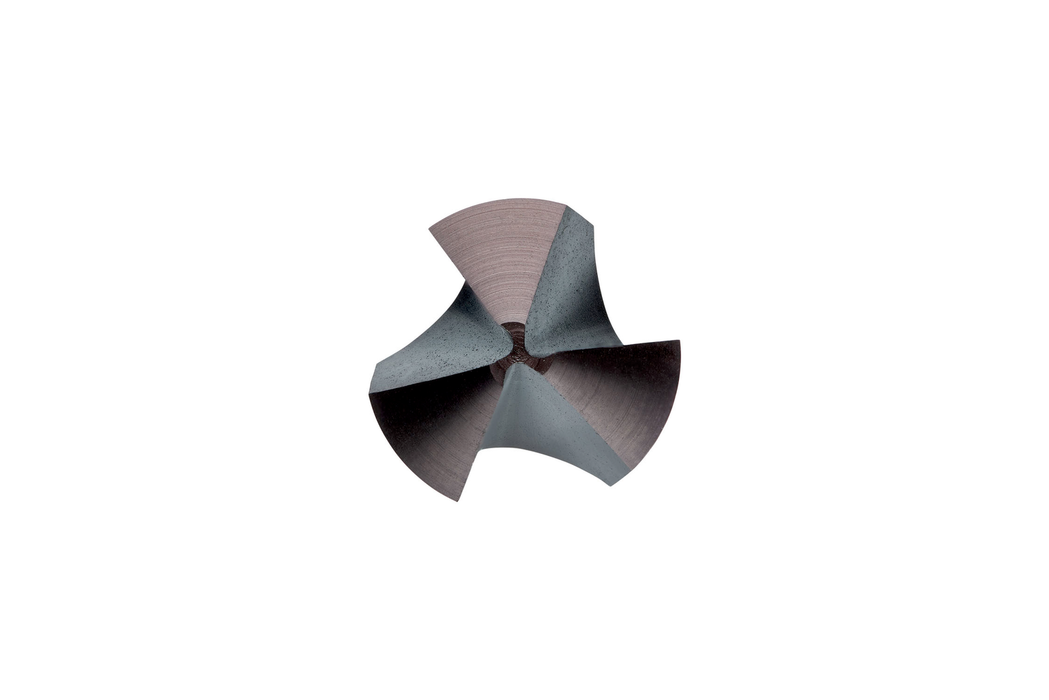

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 40.00mm with an overall length of 118mm and a head length of 20mm and 16mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.50mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$489.99 - $489.99
$489.99
$489.99 - $489.99
$489.99
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

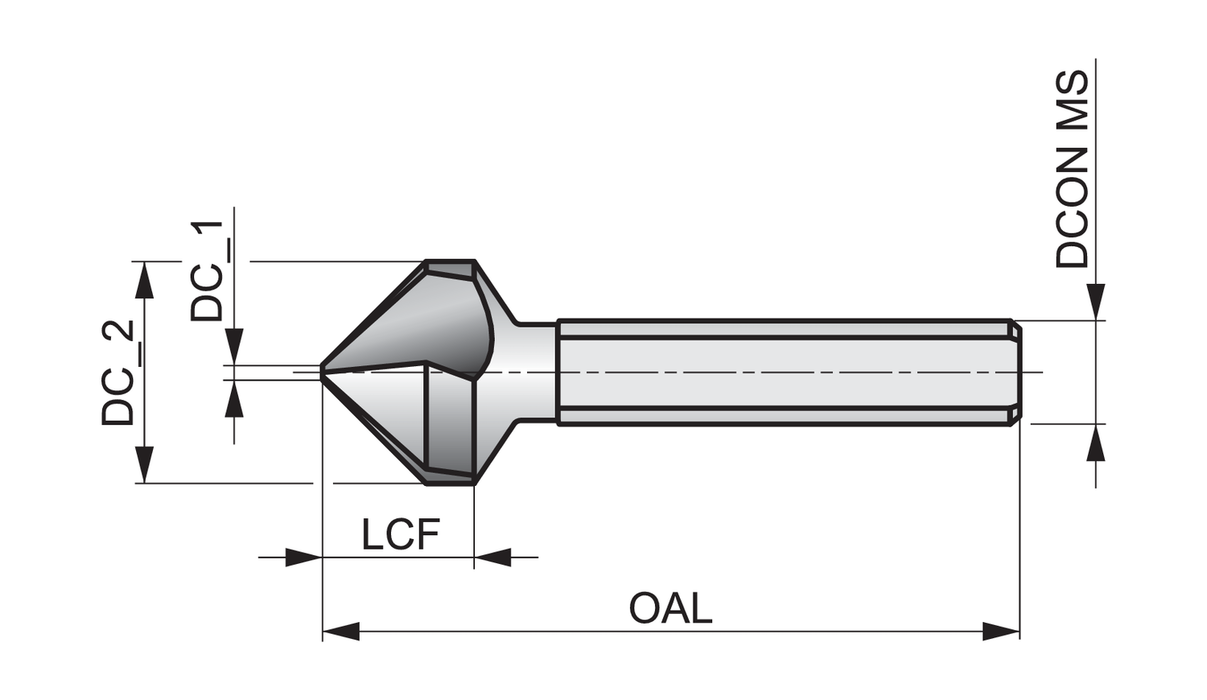

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 4.6457

Connetion Diameter: 0.6299

Tool Direction: Right

Shank: Cylindrical shank with 3-Flats

Grade: TiAlN

EDP: 47147803

EAN: 7320760702802

MFG Part Number: 7147803
